Custom Lithium ion Battery Pack

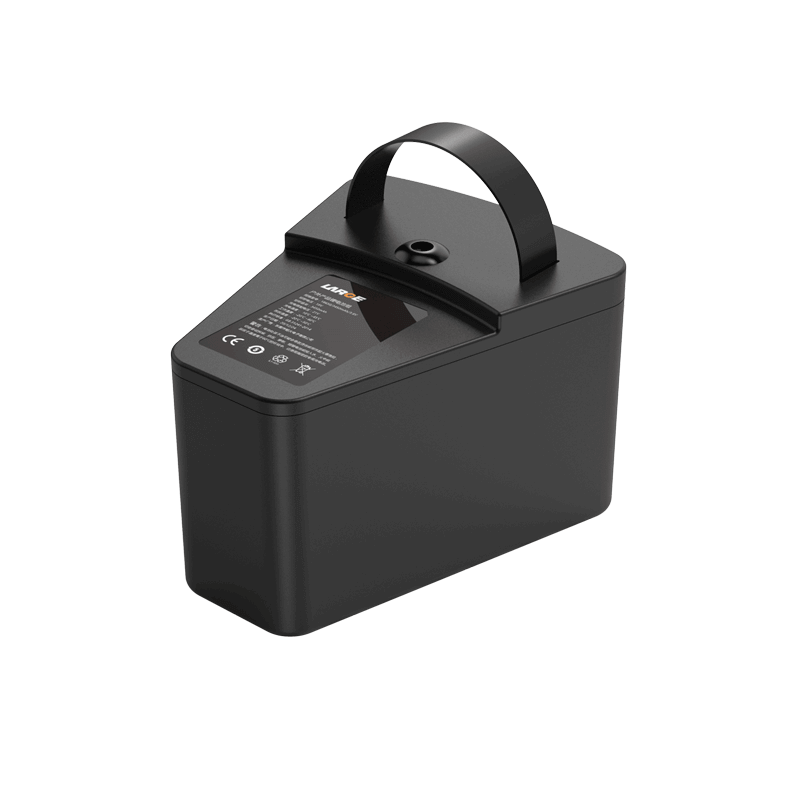

18650 18V 13.6Ah Panasonic Battery for Outdoor Product

Product Detail

Product number: 08DQ0028-01

Cell model:18650/3450mAh/3.6V

Battery dimension:114.6*92.8*74mm(Max)

Nominal voltage:18V

Nominal capacity:13.8Ah

Charging voltage: 21V

Charging current: ≤4A

Discharging current: ≤13.6A

End-off voltage:13.75V

Internal resistance: ≤180mΩ

Battery weight: 1.2kg

Charging temperature:10~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~+50℃(less than one month)-20~40 ℃(less than three months);-20~+20℃(less than twelve months)

Battery case:plastic case

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: outdoor product



Product features

1. Plastic shell is simple and reliable, and is easy to install.

2. Output terminal: Adopt the national standard UL wire output mode to increase the electrical reliability.

3. Battery protection management: Adopt imported well-known brand protection chip with good stability, high precision monitoring, precise control to eliminate of safety risks.

4. The battery pack has good safety,nice discharge performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.


*
*
*
