22 Years' Battery Customization

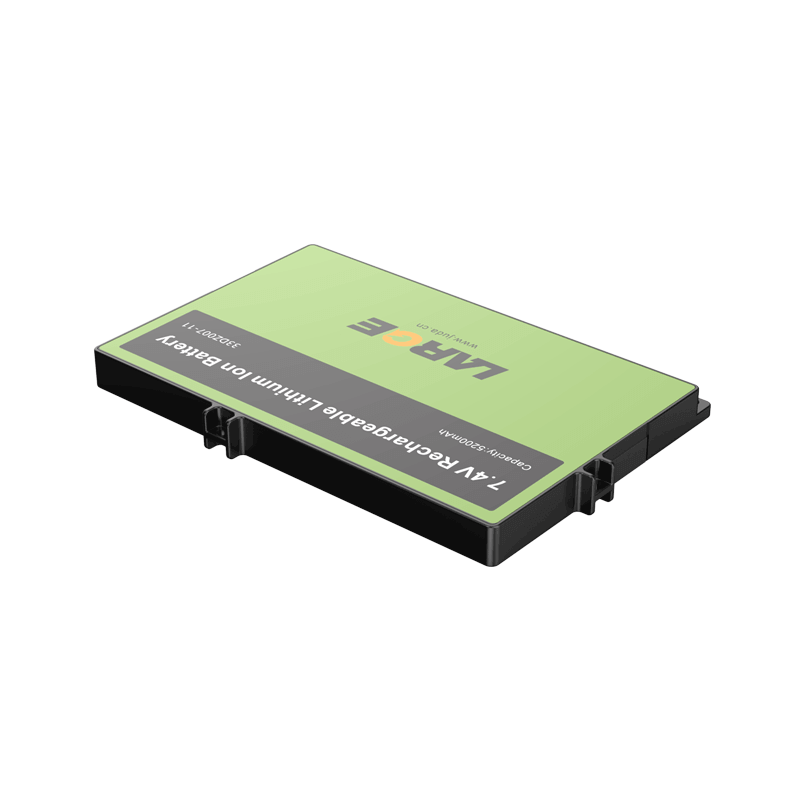

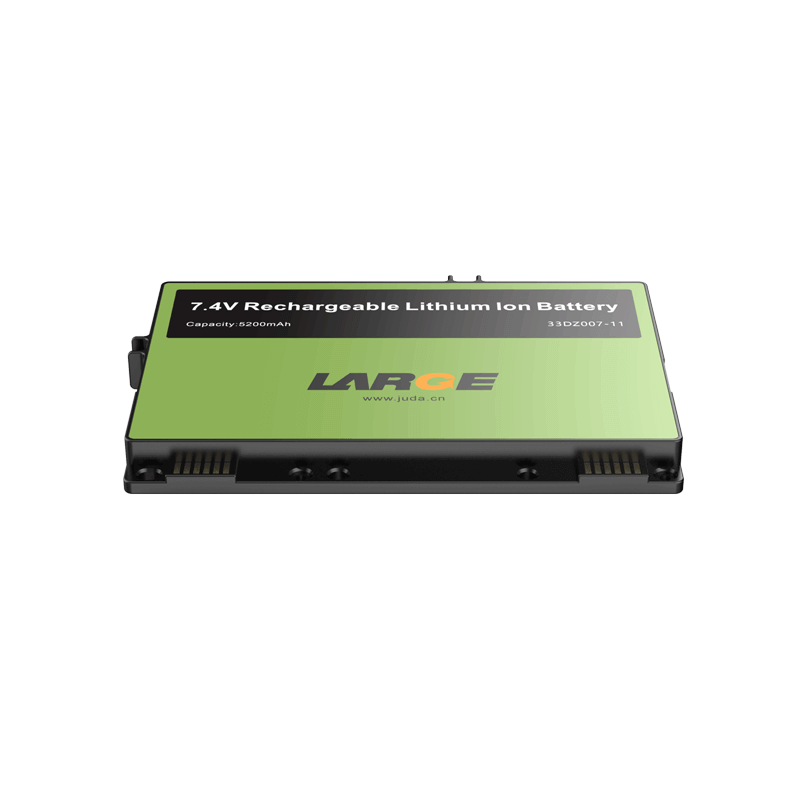

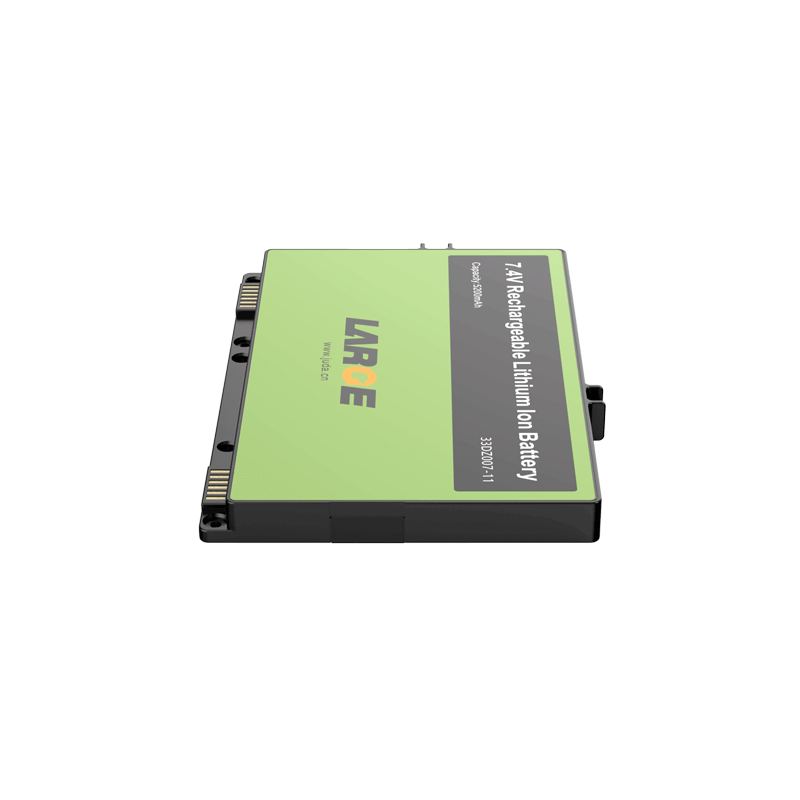

-40℃ Low Temperature Battery for Handheld Tablet

-40℃ Low Temperature Battery for Handheld Tablet
-40℃ Low Temperature Battery for Handheld Tablet
-40℃ Low Temperature Battery for Handheld Tablet
-40℃ Low Temperature Battery for Handheld Tablet

Product Detail

Product number: 33DZ007-11

Cell model: 524885PLW-4.20V-2700MAH,528985 PLW - 4.20 - V - 5200 mah

Battery specification: 524885-2S1P/2650mAh/7.4V,528985-2 s1p / 5150 mah / 7.4 V

Nominal voltage: 7.4V

Nominal capacity: A=2700mAh B=5200mAh

Charging voltage: 8.4V

Charging current: 0.2C(about 1A)

Discharge current: 2A

Instant discharge current: 2.5A

Discharge cut-off voltage: 6V (5.0V at -40℃)

Finished product internal resistance: ≤180mΩ

Battery Weight: 260g

Product dimension: 149.6*104.6*12mm (L*W*H)

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 55℃

Storage temperature: -20 ~ 45℃

Battery case: industrial grade plastic case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, equalization, IIC communication, etc.

Application: Handheld tablet computer



Product features

1.Maximum sustained discharge at 2A.

2.Adopt imported software management chip, IIC communication function, accurate data transmission, precise temperature control to eliminate security risks.

3.Adopt the self-developed ultra-low temperature polymer battery, which can discharge continuously more than 80% of capacity at -40℃.

4.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
