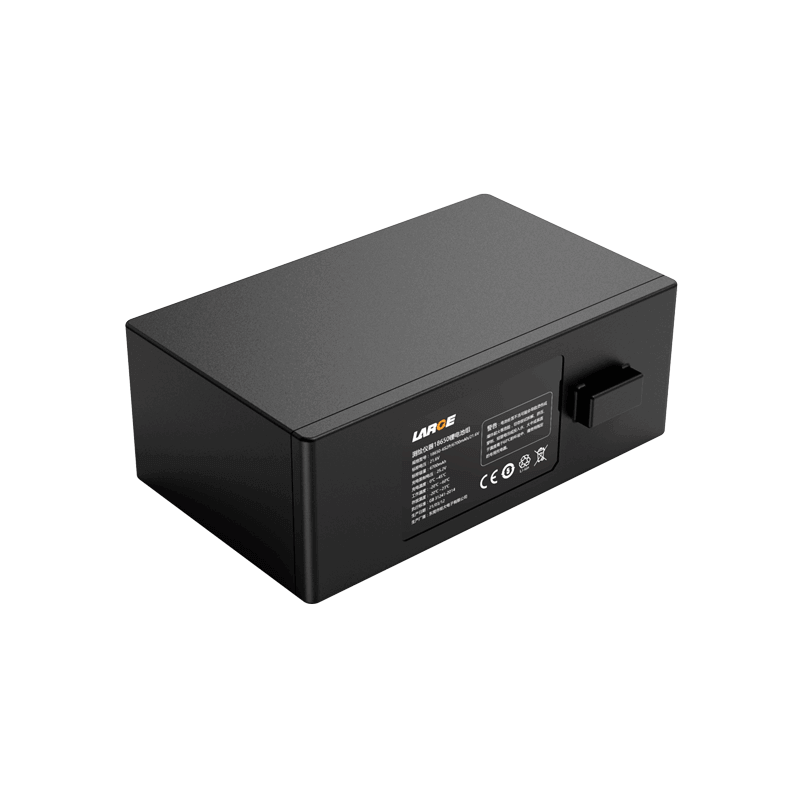

18650 21.6V 6700mAh Samsung Battery for Surveying Instrument

Product Detail

Project number: 01WQ0056-01

Cell model: INR18650-35E/3350mAh/3.6V

Battery specification: 18650-6S2P/6700mAh/21.6V

Nominal voltage: 21.6V

Nominal capacity: 6700mAh

Charging voltage: 25.2V

Charging current: ≤4.0A

Discharge current: 6.70A

Instant discharge current: 20.0A

Discharge cut-off voltage: 17.4V

Finished product internal resistance: ≤350mΩ

Battery weight: 450g

Product dimension: 47.5*94*128mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 23℃

Intelligent lithium battery protection: power management, short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Surveying and mapping instruments

*
*
*
