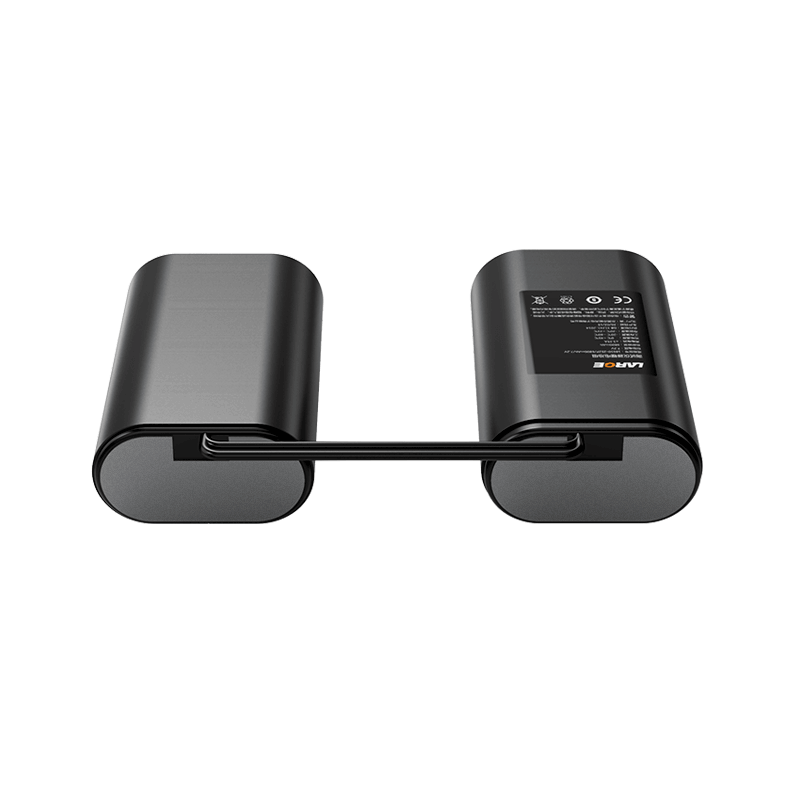

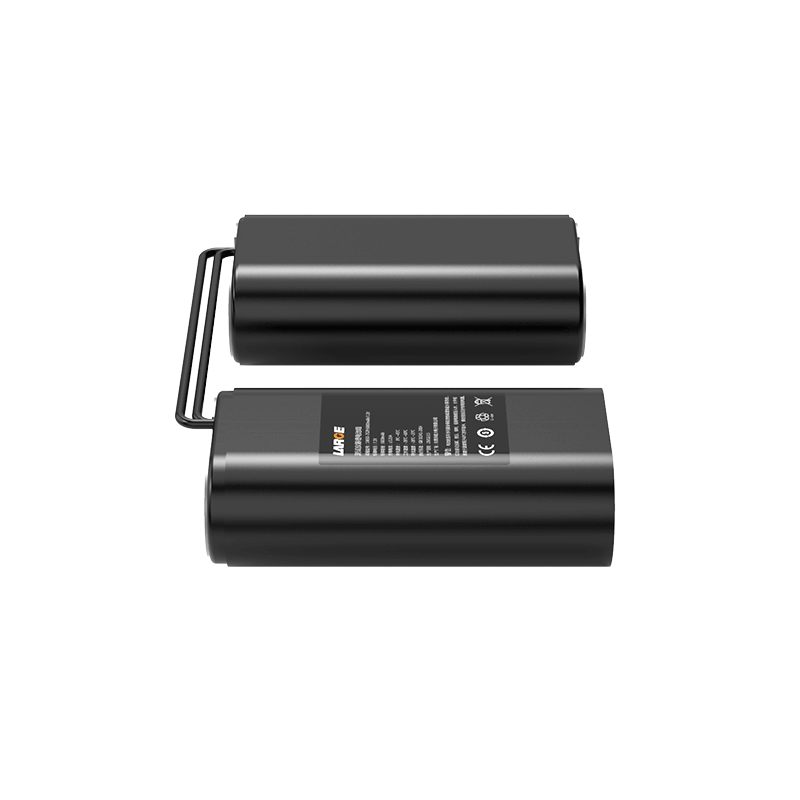

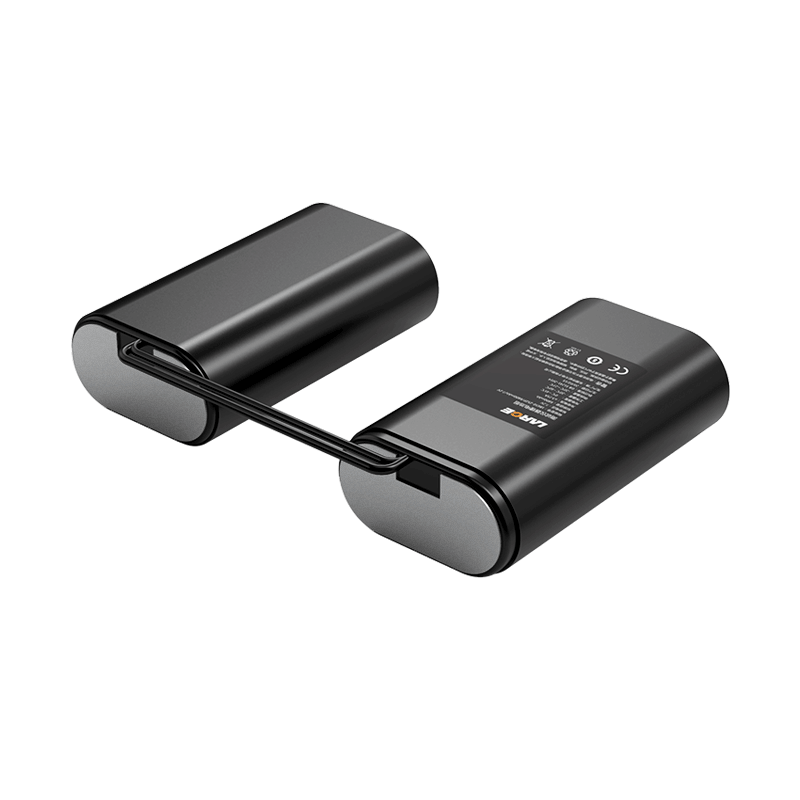

18650 7.2V 6800mAh Lithium-ion Battery for Test Equipment

Product Detail

Project number: 05BQ672-42

Cell model: 18650/3350mah /3.6V

Battery specification: 18650-2S2P/6800mAh/7.2V

Nominal voltage: 7.2V

Nominal capacity: 6800mAh

Charging current: ≤3.25A

Discharge current: 3.25A

Instantaneous discharge current: 15A

Cut-off voltage: 5.6V

Internal resistance of finished product: ≤100mΩ

Battery weight: 215G

Product size: 20.3*41.5*150mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ° C to 23 ° C

Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: surveying and mapping industry

*
*
*
