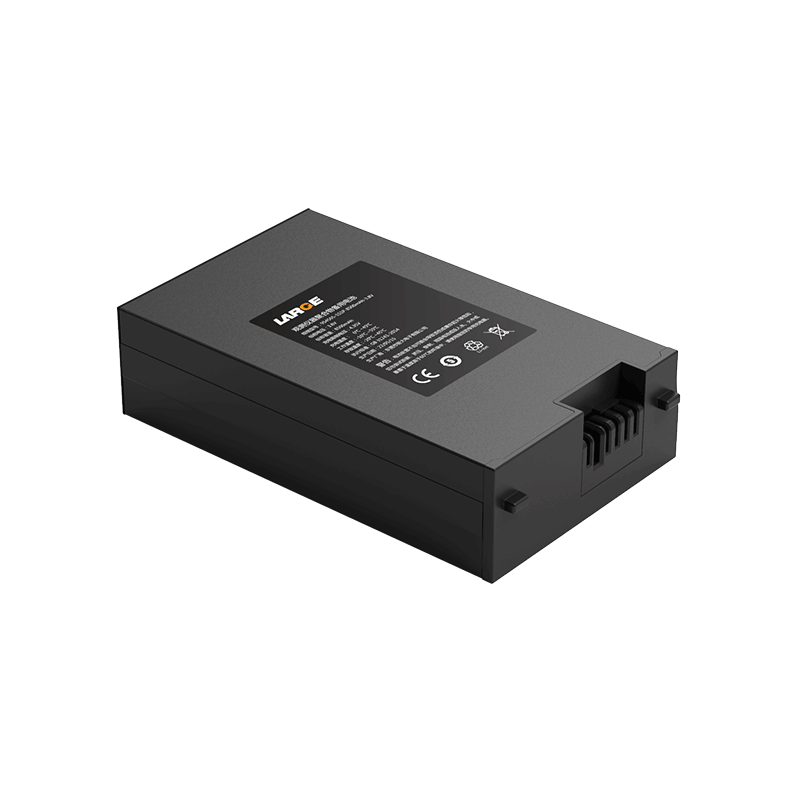

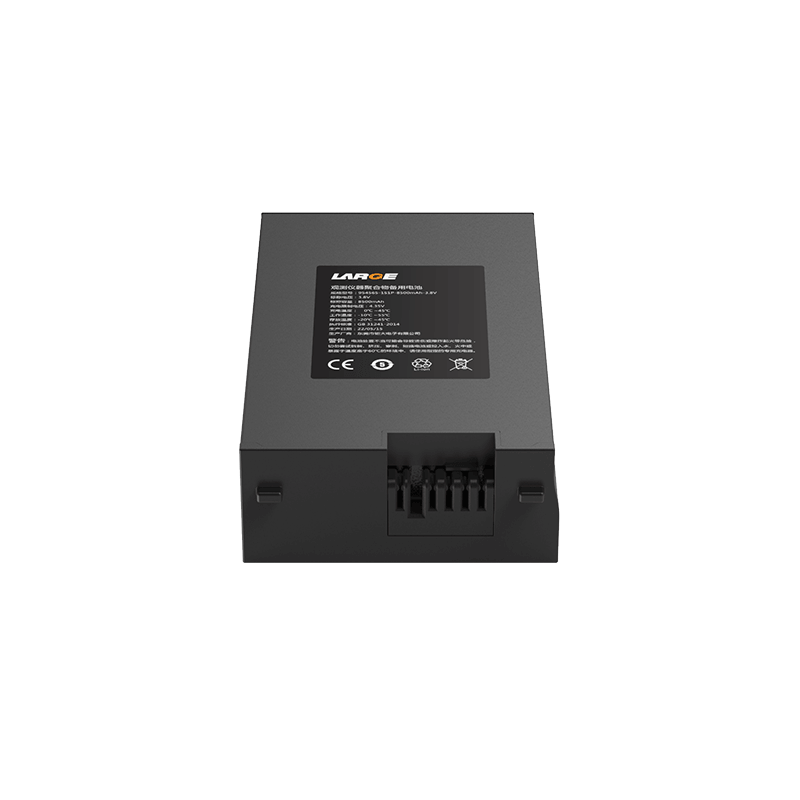

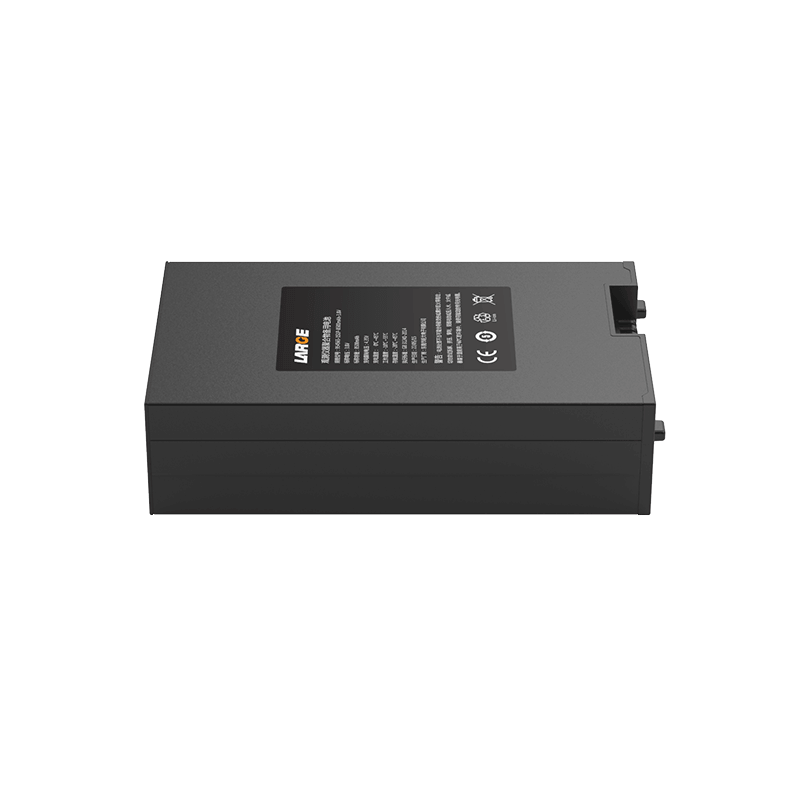

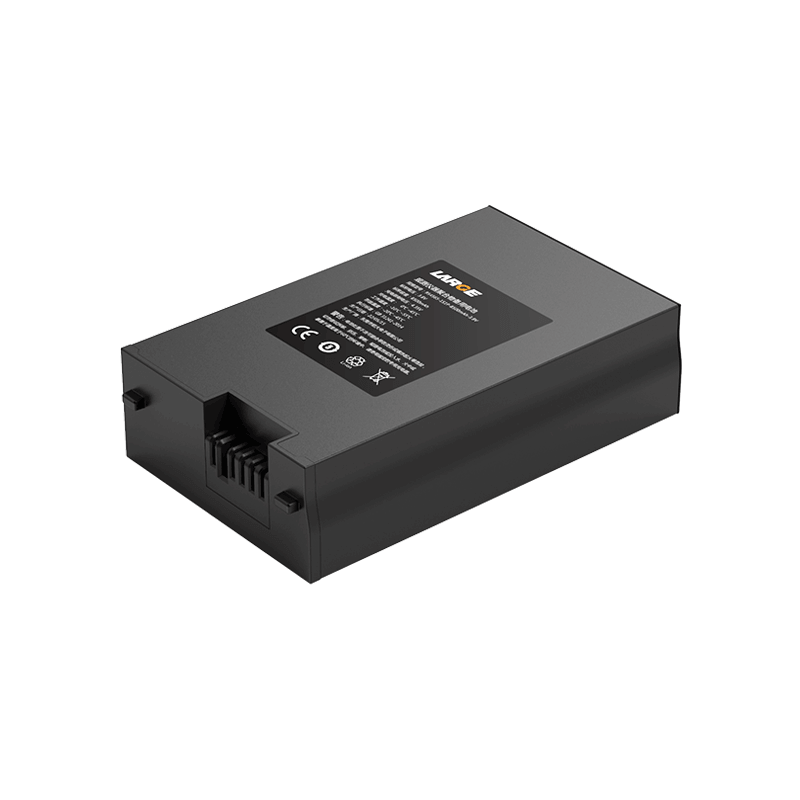

954565PLV 4.35V 8500mAh Lithium Polymer Battery for Observation Instrument

Product number: 36AQ517-08

Cell model: 954565PLV-4.35V-8500mah

Battery specification: 954565-1S1P-8500mah 3.8V

Nominal voltage: 3.8V

Nominal capacity: 8.5Ah

Charging voltage: 4.35V

Charging current: ≤3A

Discharge current: 3A

Instant discharge current: 6A

Discharge cut-off voltage: 3V

Finished internal resistance: ≤ 180mΩ

Battery weight: 100g

Product dimension: MAX80*49*20.5mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -10 ~ 55℃

Storage temperature: -20 ~ 45 ° C

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Industrial and observation instruments
