18650 21.6V 17Ah Lithium Battery for Underwater Mapping Robot

Product Detail

Product number: 06DQ030-10

Cell model:18650-3400mAh-3.6V

Battery specification: 18650-6S5P-21.6V-17Ah

Nominal voltage:21.6V

Nominal capacity:17Ah

Charging voltage: 25.2V

Charging current: ≤8.5A

Discharging current: 3.4A

Instant discharging current: 25A

End-off voltage: 15V

Internal resistance: ≤200mΩ

Battery weight: 2000g

Product dimension: height 160*φ100±1mm

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35℃

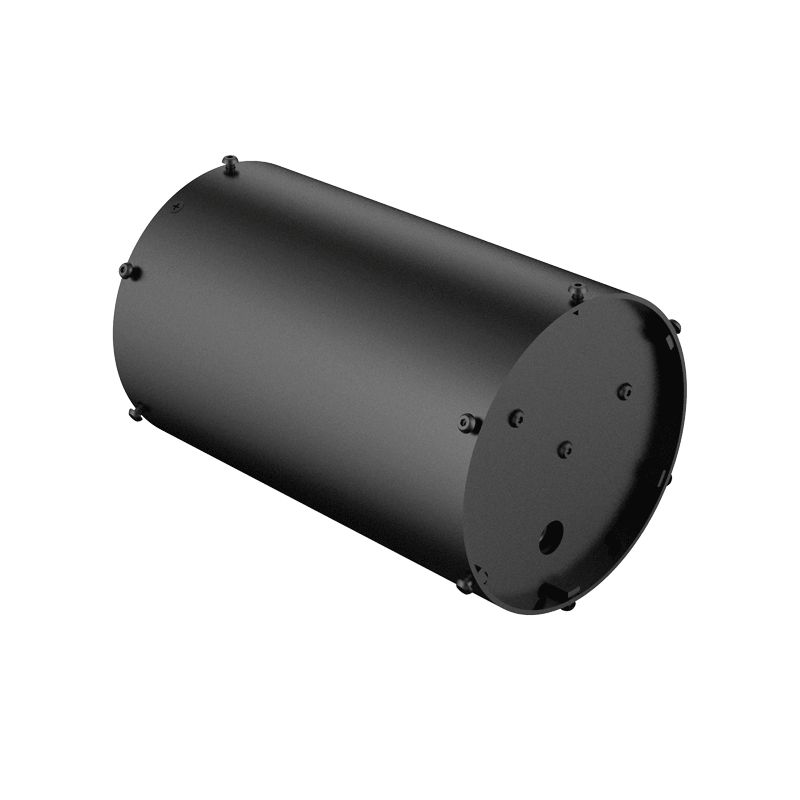

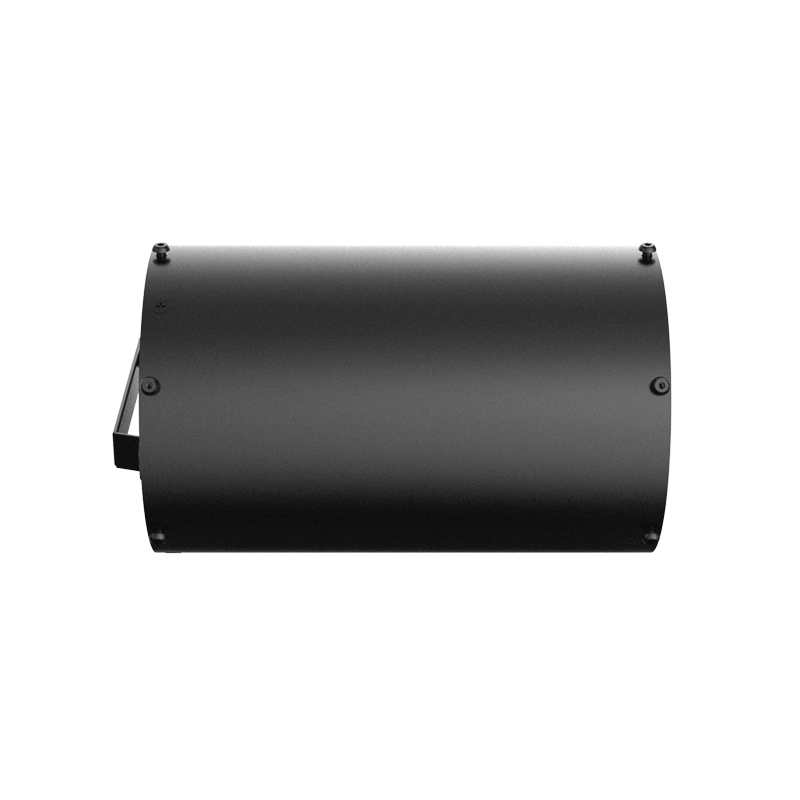

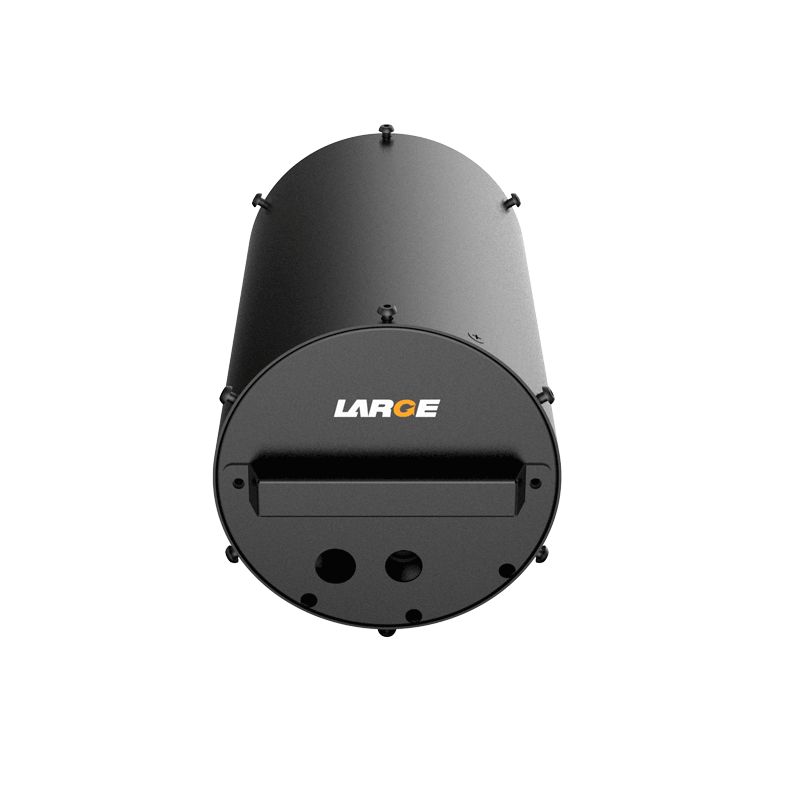

Battery case: metal plate shell

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: patrol robot, power monitoring robot, mapping robot,etc.



?Product features

?1. Metal plate shell increases battery reliability, firmness, and it is easy to install and carry.

?2. Conductor output: adopt high-temperature resistant wire output mode to increase the conduction reliability and high-temperature resistance.

?3. Data communication management: adopt TI-SMBus software management chip, SMBus communication accurate data transmission, precise temperature control, which greatly eliminates the security risks.

?4. The battery pack has good security, nice discharge performance and long cycling life.

?5. The battery pack has long cycling life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
