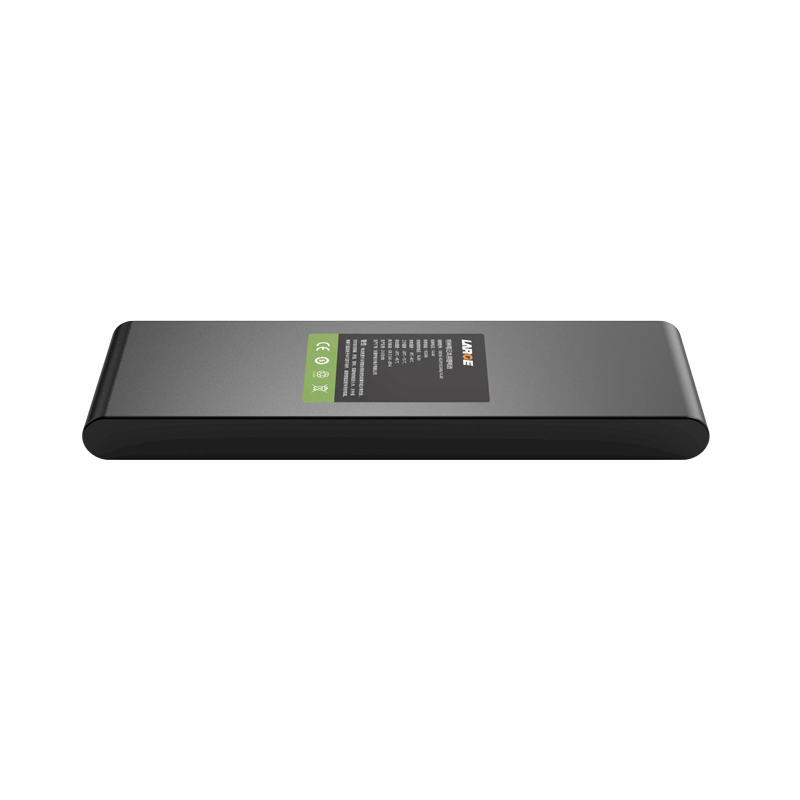

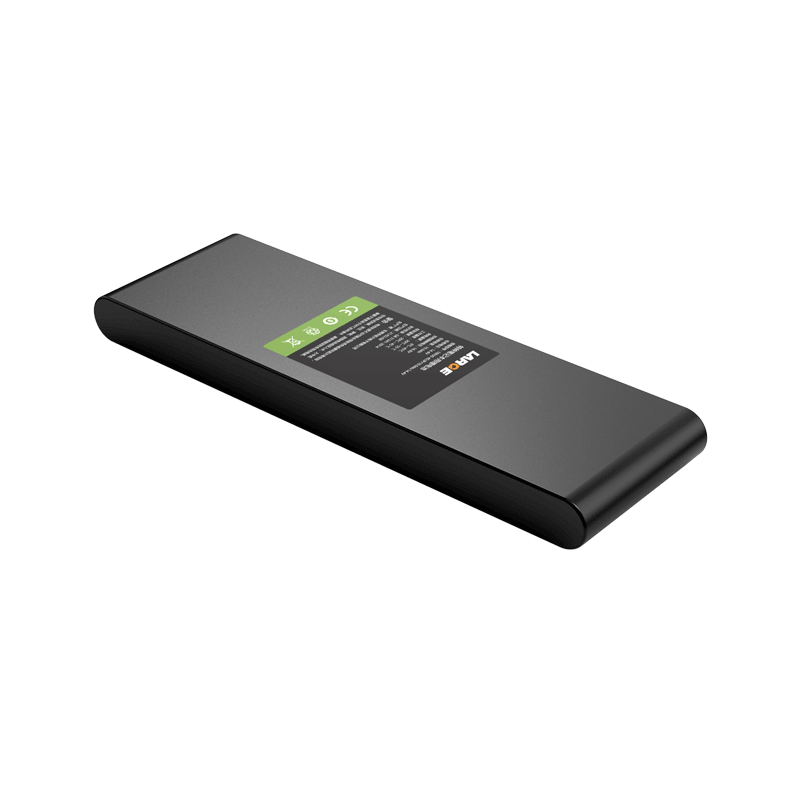

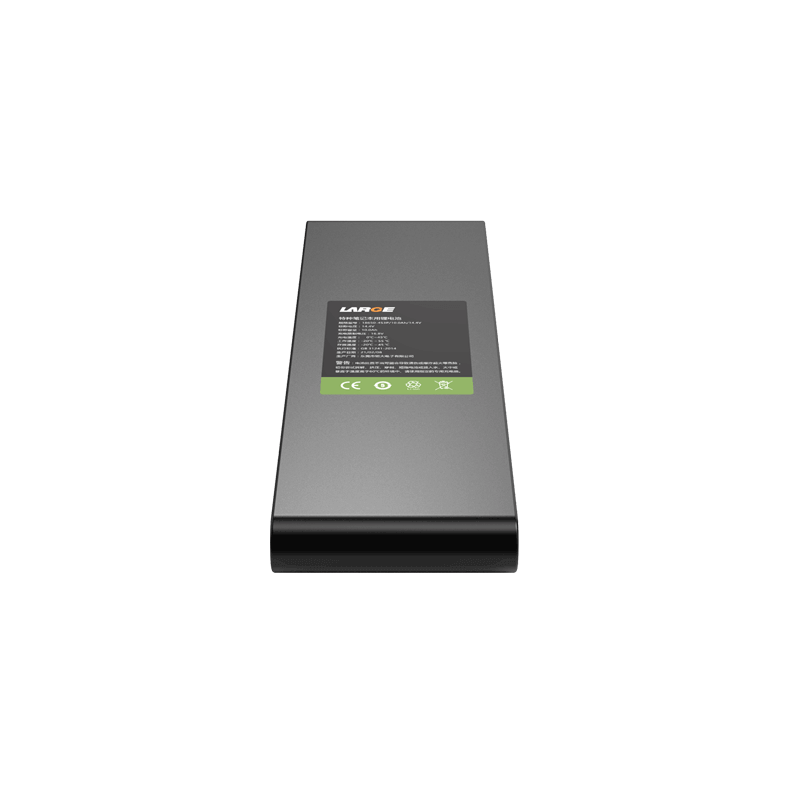

18650 14.4V 7.8Ah Low Temperature Battery for Special Tablet

Product Detail

Product number: 40AQ010-02

Cell model: 18650/3600mAh/3.6V

Battery specification: 18650-4S3P/7.8Ah/14.4V

Nominal voltage: 14.4V

Nominal capacity: 7.8Ah

Charging voltage: 16.8V

Charging current: 1600mA

Discharge current: 1600mA

Instant discharge current: 8A

Discharge cut-off voltage: 10.0V

Finished product internal resistance: ≤160mΩ

Battery weight: 800g

Product dimension: 223*71*19.5mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ +55 ℃

Storage temperature: -20 ~ +45 ℃

Battery packaging: PVC

Lithium battery protection: conventional protection +SMBUS communication function.



Product features

1.Data communication management: Use TI software management chip, accurate data transmission, precise temperature control to eliminate security risks;

2.The battery pack has good safety, nice performance and high standard connector;

3.It can accurately monitor the battery power.

*
*
*
