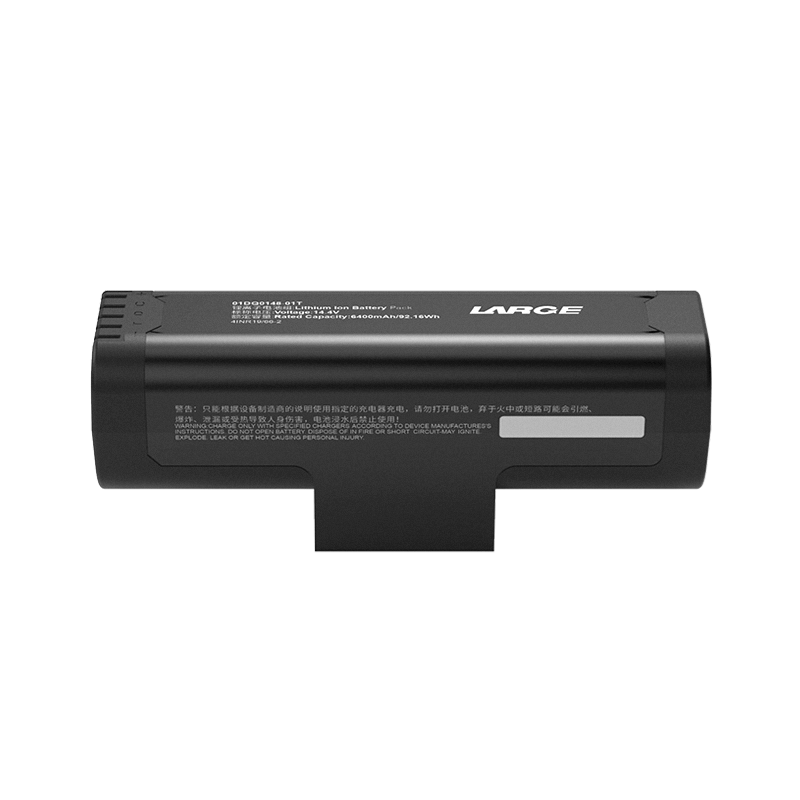

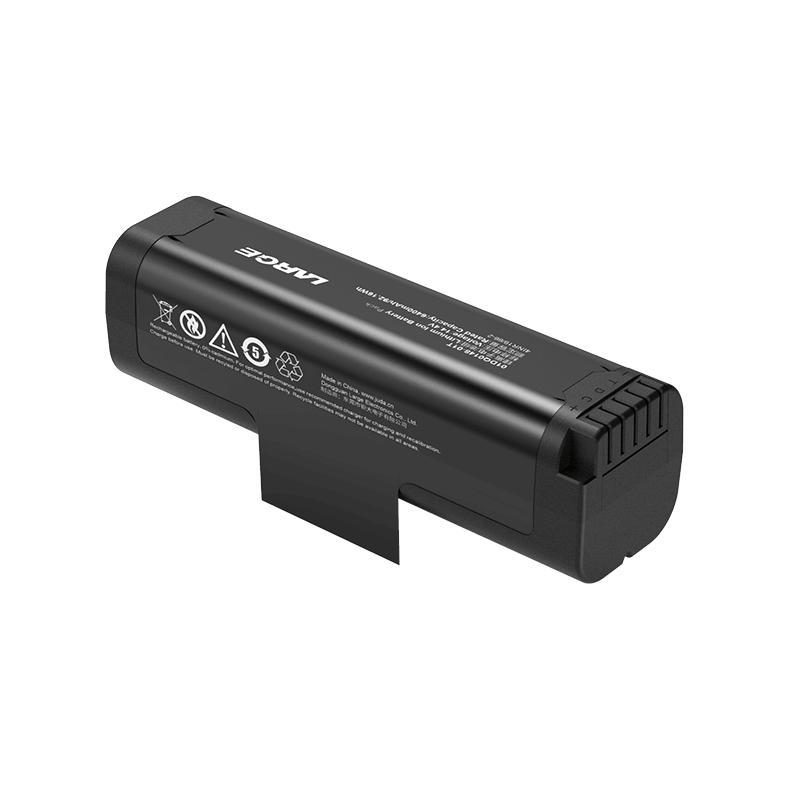

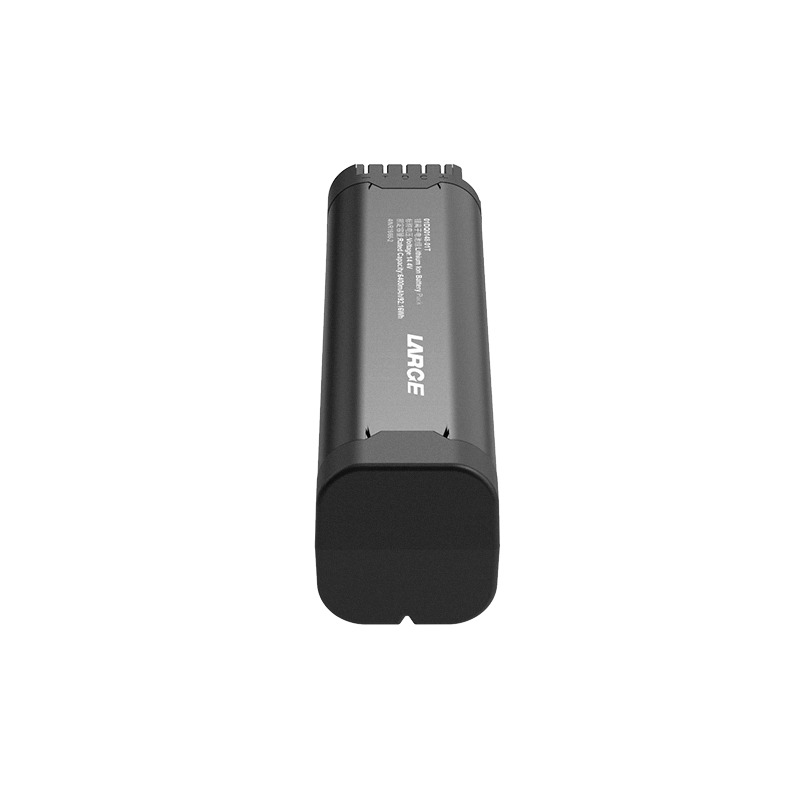

18650 14.4V 6700mAh Samsung Battery for Ultrasonic Endoscope

18650 14.4V 6700mAh Samsung Battery for Ultrasonic Endoscope
18650 14.4V 6700mAh Samsung Battery for Ultrasonic Endoscope
18650 14.4V 6700mAh Samsung Battery for Ultrasonic Endoscope
18650 14.4V 6700mAh Samsung Battery for Ultrasonic Endoscope

Product Detail

Product number: 01DQ0148-01T

Cell model: INR18650-35E/3350mAh/3.6V

Battery Specifications: 18650-4S2P/6700mAh/14.4V (Smart + Case)

Nominal voltage: 14.4V

Nominal capacity: 6700mAh

Charging voltage: 16.8V

Charging current: ≤ 3.3A

Discharge current: 6.6A

Instantaneous discharge current: 8.5A

Discharge cut-off voltage: 10.8V

Internal resistance: ≤250mΩ

Battery weight: 550 GB

Product size: 41*41.5*150mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20°C to 23°C

Battery case: ABS+PC

Intelligent lithium battery protection: power management, short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: ultrasonic endoscope

*
*
*
