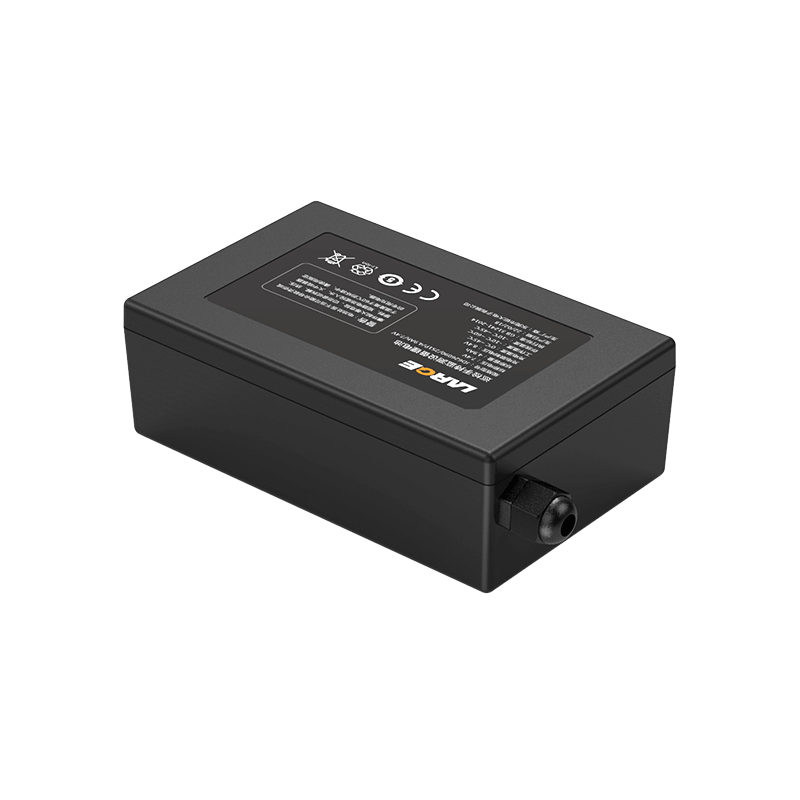

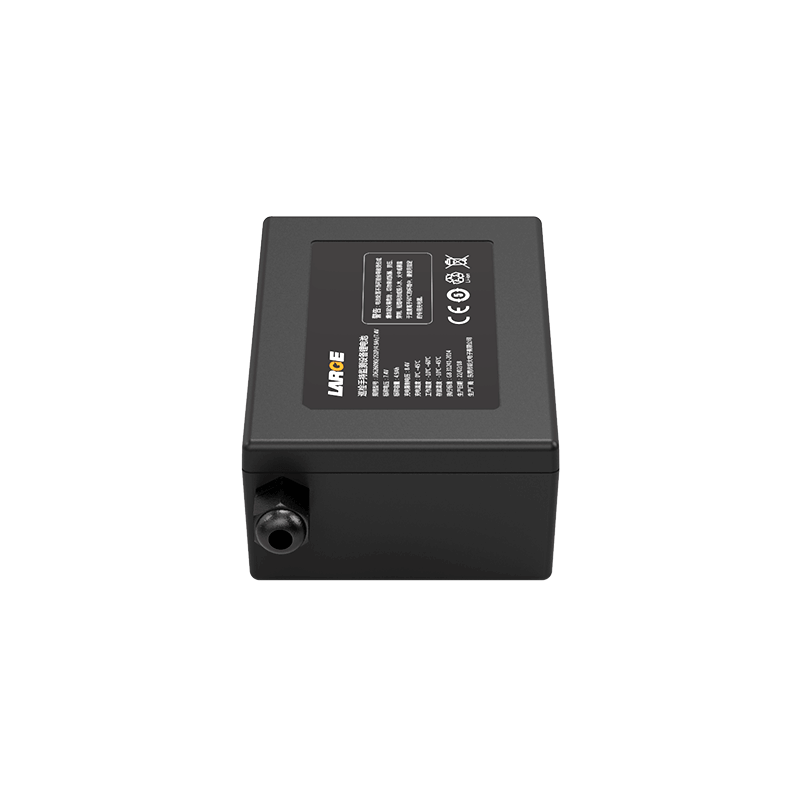

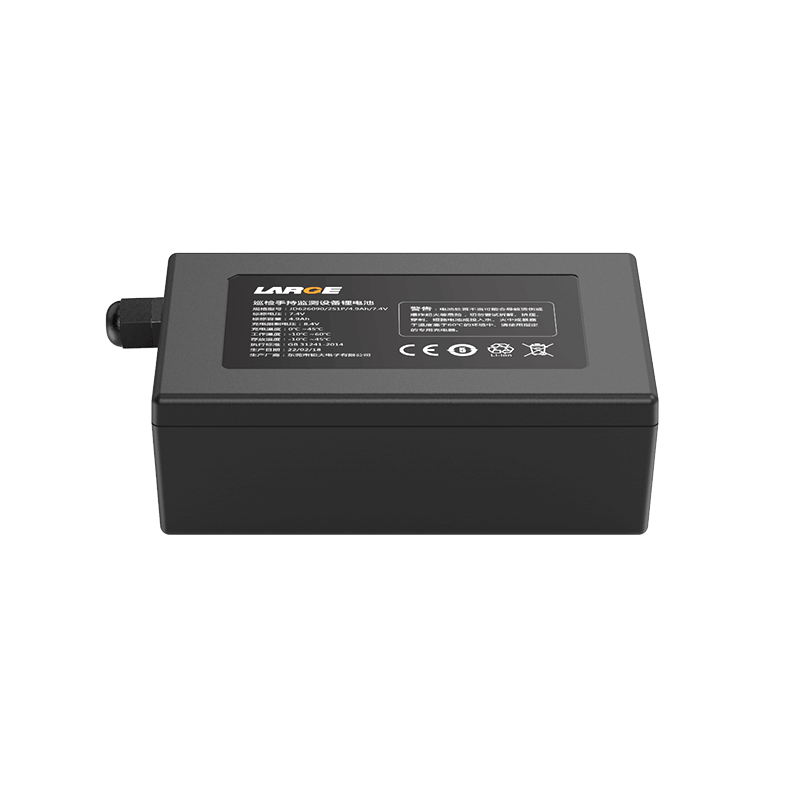

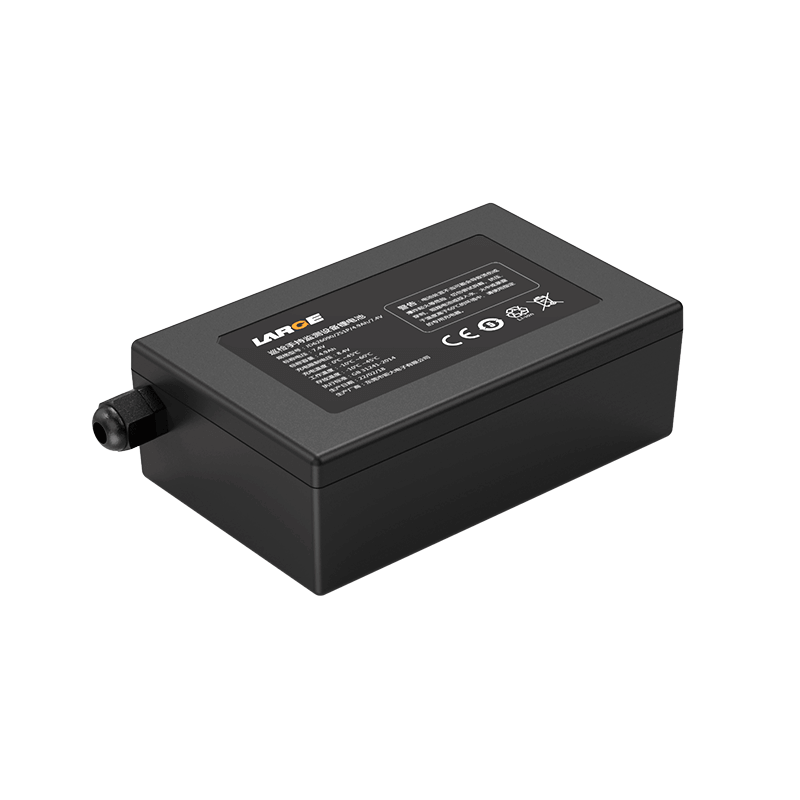

21700 19.2Ah 10.8V B Samsung Battery for B Ultrasonic Diagnostic Set

21700 19.2Ah 10.8V B Samsung Battery for B Ultrasonic Diagnostic Set
21700 19.2Ah 10.8V B Samsung Battery for B Ultrasonic Diagnostic Set
21700 19.2Ah 10.8V B Samsung Battery for B Ultrasonic Diagnostic Set
21700 19.2Ah 10.8V B Samsung Battery for B Ultrasonic Diagnostic Set

Product Detail

Product number: 08DQ0057-01

Cell model: 21700-4900MAH-3.60V

Battery specifications: 21700-3S4P-19.2Ah-10.8V

Product size: 150mm*94mm*50mm

Nominal voltage: 10.8V

Nominal capacity: 19.2A

Rated capacity: 18.8A

Charging voltage: 12.6V

Charging current: 10A

Discharge current: 30A

Discharge cut-off voltage: 7.5V

Product internal resistance: ≤180mΩ

Battery weight: 1100g

Charging temperature: 0~+45℃

Discharge temperature: -20~+60℃

Storage temperature: -20~+45 ° C (less than 1 month); -20 ~ 35 ℃(less than 3 months); -10~+25℃ (less than 12 months)

Battery package: plastic case;

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.

Application: B ultrasound equipment


Product Features

1.Plastic shell and ultrasonic process are simple, reliable and easy to install.

2.SMBUS communication protocol

3.Output terminal: Adopt the output mode of GB UL wire to increase conductive reliability.

4.Battery protection management: Adopt imported protection chips with high stability, high precision monitoring and precise control, to eliminate potential safety hazards to the maximum.

5.The battery pack is safe, has good discharge performance and long cycle life.

6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.

*
*
*
