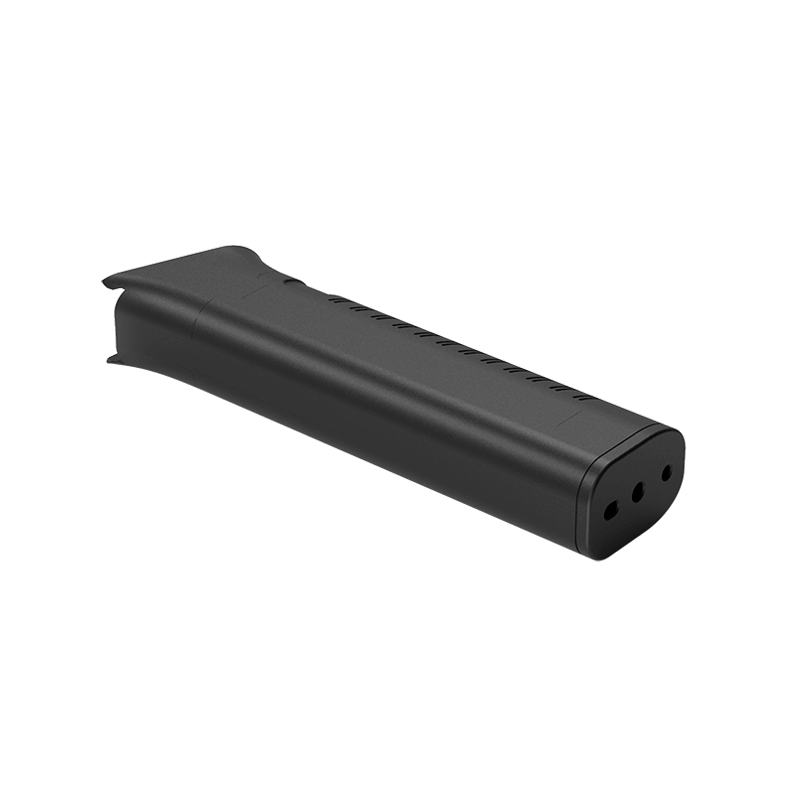

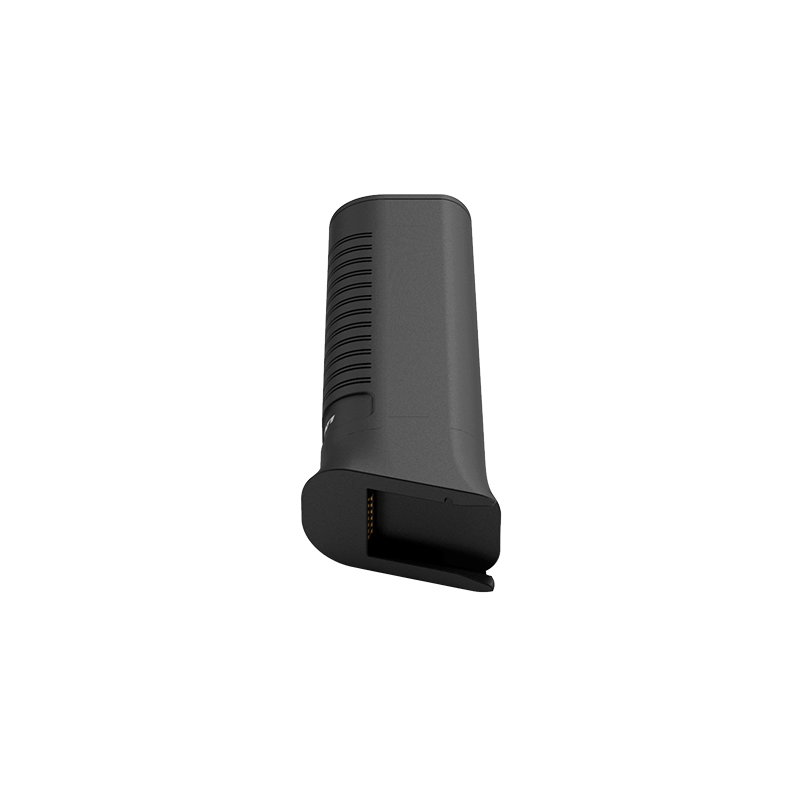

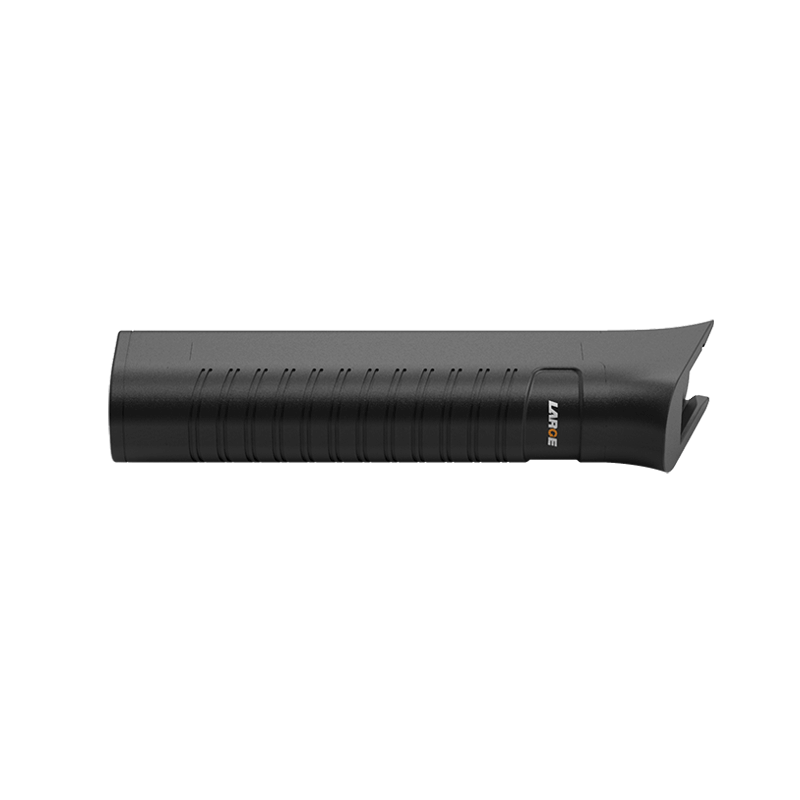

14.4V 3350mAh Mapping Instrument Handle With 18650 Lithium-ion Battery Pack

Product number: 05DQ0072-01

Battery model: INR18650-35E/3350mAh/3.6V

Battery specification: 18650-4S1P/3350mAh/14.4V (smart + shell)

Nominal voltage: 14.4V

Nominal capacity: 3350mAh

Charging voltage: 16.8V

Charging current: ≤1.4A

Discharge current: 5.0.0A

Instantaneous discharge current: 7.0A

Discharge cut-off voltage: 11.2V

Finished internal resistance: ≤200mΩ

Battery weight: 340g

Product size: 30*44*170.97mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 23℃

Battery case: ABS+PC

Communication protocol: SMBUS

Intelligent lithium-ion battery protection: power management, short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Application: Handle of surveying and mapping instrument
