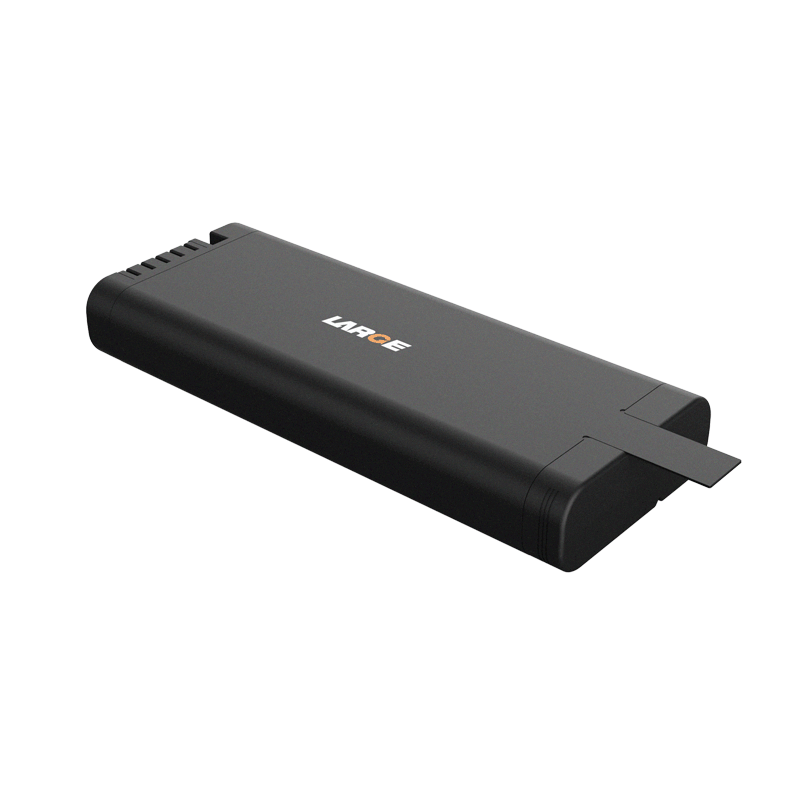

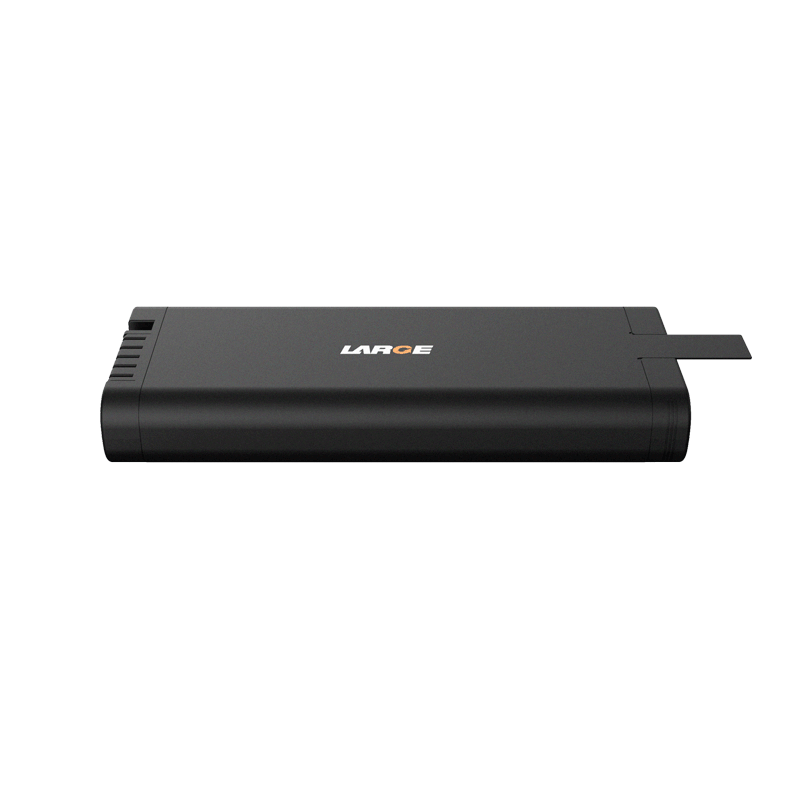

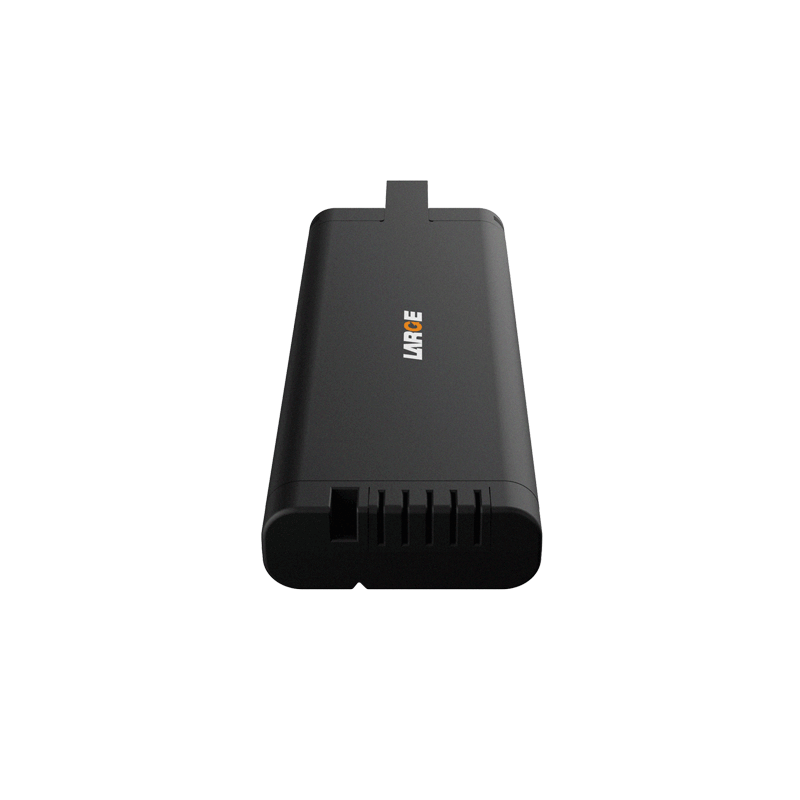

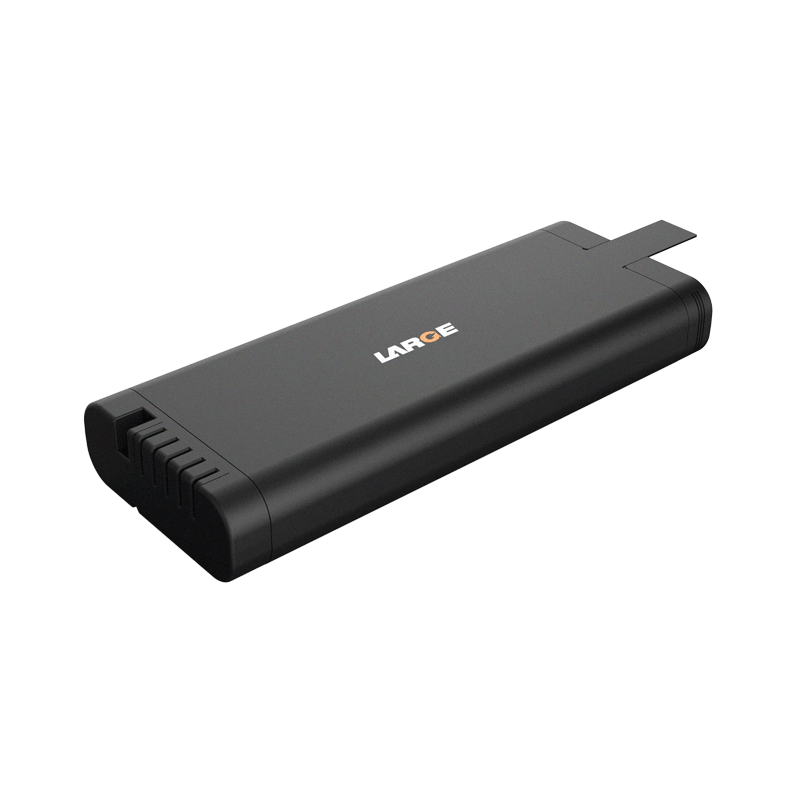

18650 10.8V 6700mAh Lithium Battery Panasonic Battery for Handheld Device with SMBUS Communication

18650 10.8V 6700mAh Lithium Battery Panasonic Battery for Handheld Device with SMBUS Communication
18650 10.8V 6700mAh Lithium Battery Panasonic Battery for Handheld Device with SMBUS Communication
18650 10.8V 6700mAh Lithium Battery Panasonic Battery for Handheld Device with SMBUS Communication
18650 10.8V 6700mAh Lithium Battery Panasonic Battery for Handheld Device with SMBUS Communication

Product Detail

Product number: 08DQ0015-01

Cell model:18650-3350mAh-3.6V

Battery specification: 18650-3S2P-6700mAh-10.8V

Nominal voltage:10.8V

Nominal capacity:6700mAh

Charging voltage: 12.6V

Charging current: ≤2900mA

Discharging current: ≤7900mA

End-off voltage: 7.5V

Internal resistance: ≤250mΩ

Battery weight: about 310g

Product dimension: (150.5*59*21.9)±0.2mm

Charging temperature:10~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: plastic housing

Lithium ion battery protection: overcharge protection, over-discharge protection, discharge overcurrent protection and discharge short circuit protection,.

Communication protocol: SMBUS

Application field: handheld device

*
*
*
