Custom Lithium ion Battery Pack

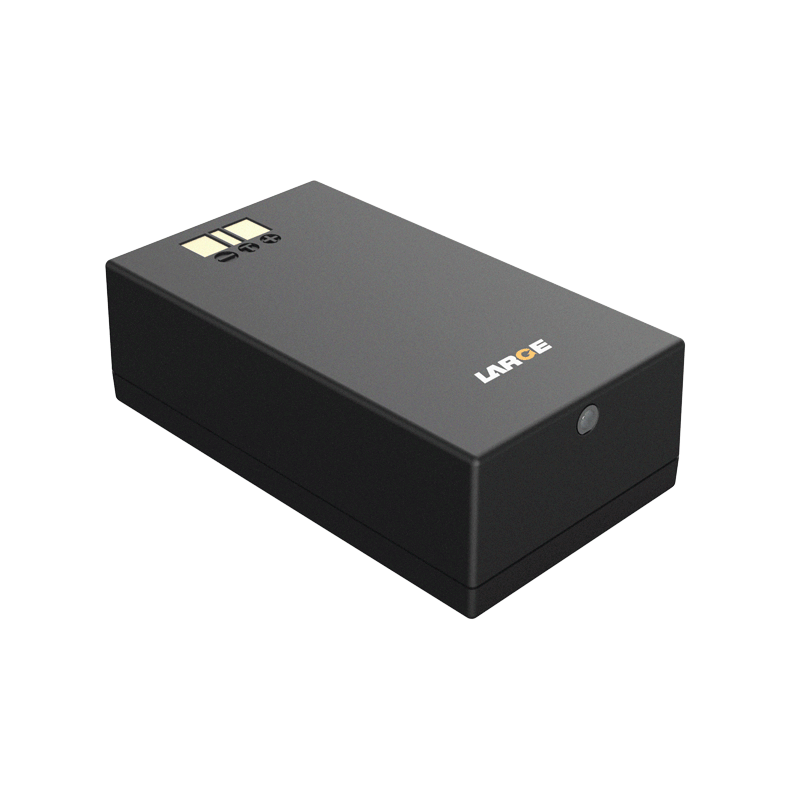

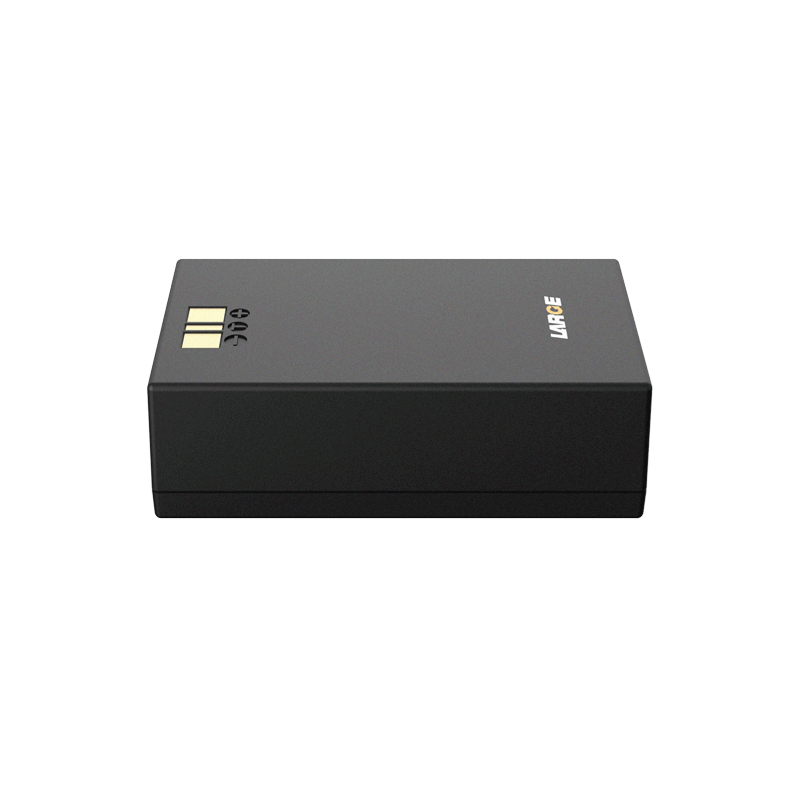

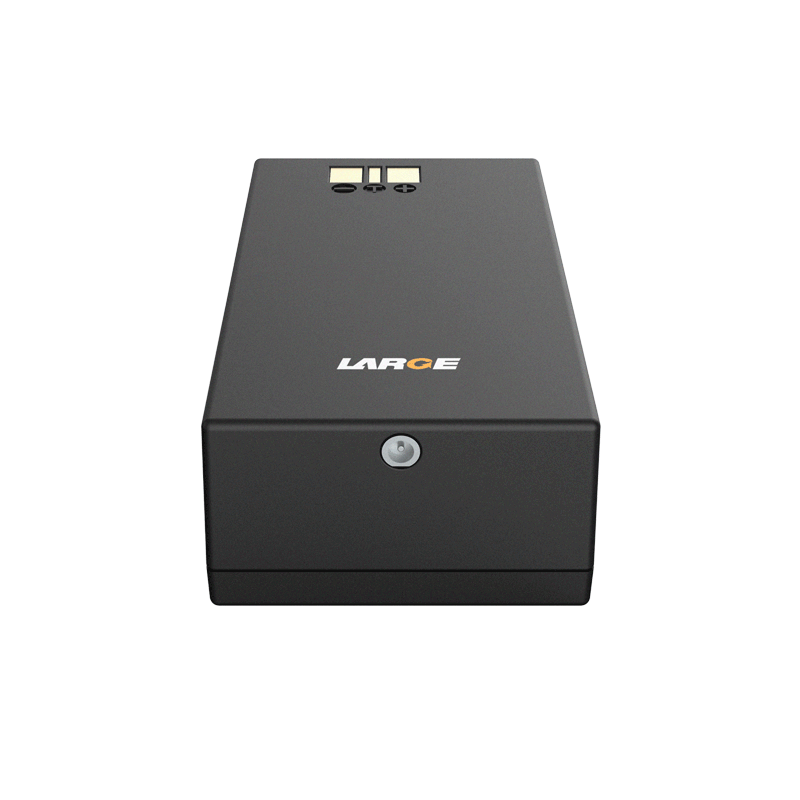

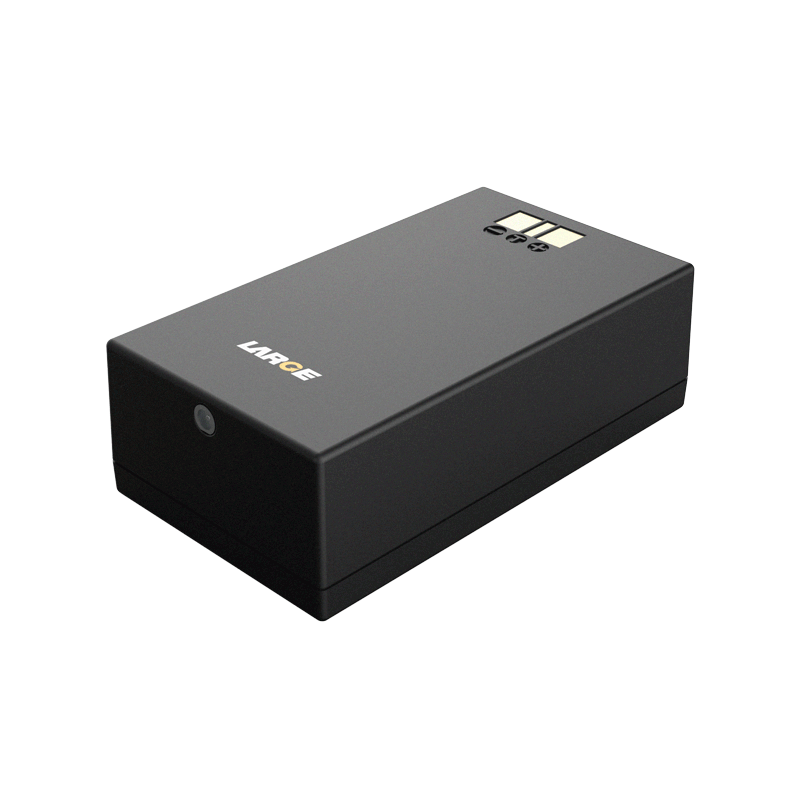

7.2V 2600mAh 18650 Lithium Battery Samsung Battery for Mobile Printing Equipment

  • Model number:02DQ0099-03T

  • Nominal voltage:7.2V

  • Nominal capacity:2600mAh

  • Battery cell:ICR18650/2600mAh/3.6V/26JM

  • Dimension:71.5*40.5*23.0mm(Max)

  • Application:consumable products

Product Detail

Product number: 02DQ0099-03T

Cell model:ICR18650/2600mAh/3.6V/26JM

Battery specification: 18650-2S1P-2600mAh-7.2V

Nominal voltage:7.2V

Nominal capacity:2600mAh

Charging voltage: 8.4V

Charging current: 2000mA

Discharging current: 520mA

Instant discharging current: 5200mA

End-off voltage: 6V

Internal resistance: ≤250mΩ

Battery weight: 100g

Product dimension: 71.5*40.5*23.0mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~30 ℃

Battery case: ABS AF312C

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: consumable products


*
*
*
