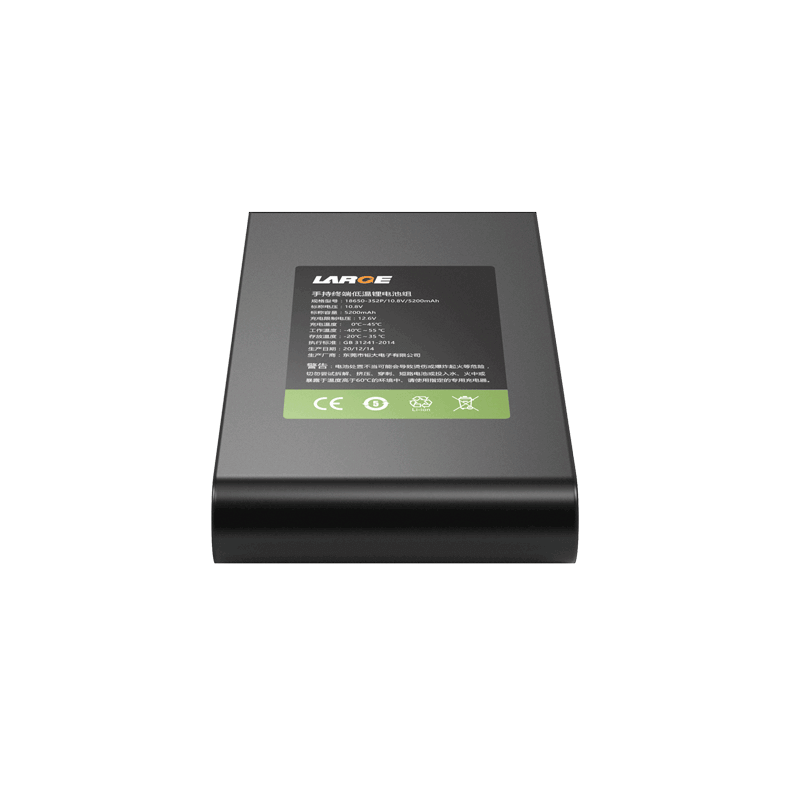

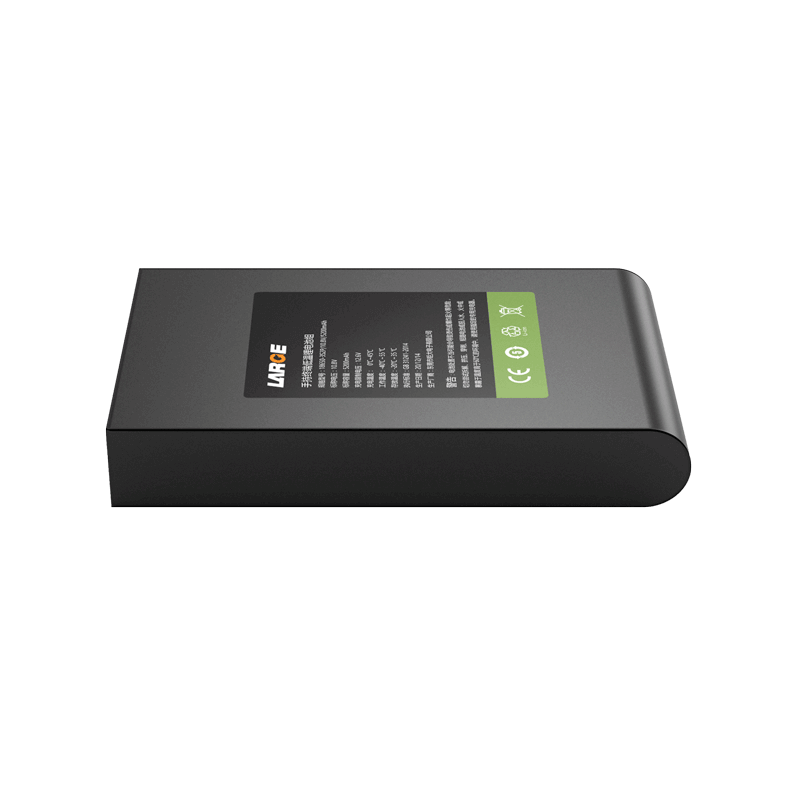

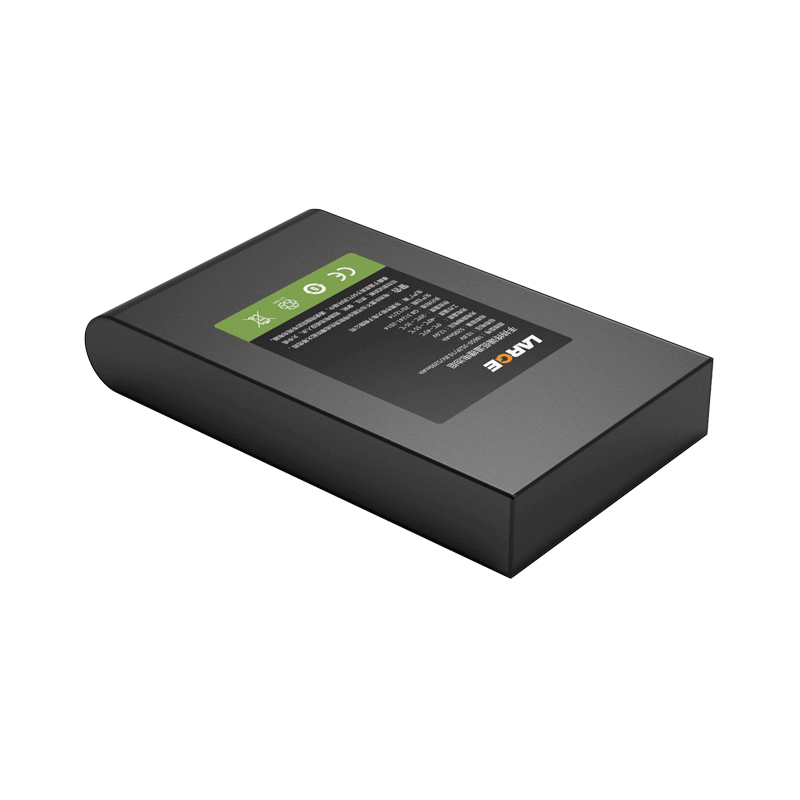

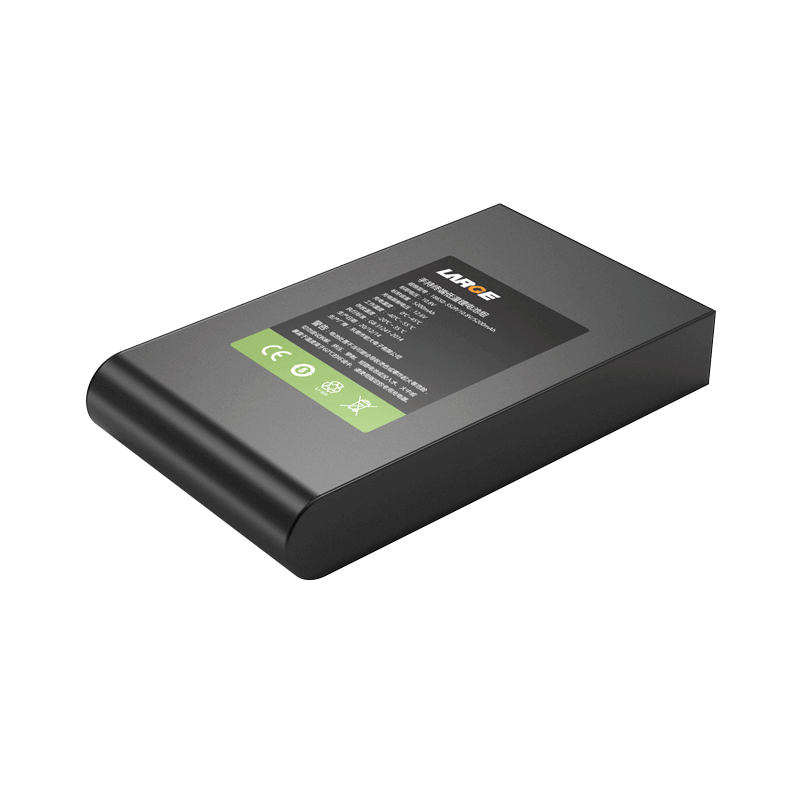

18650 10.8V 5200mAh Low Temperature Battery NCM Battery for Hanheld Terminal

Product Detail

Product Number: 34AQ076-01

Cell model: 18650/3.6V/2600mAh

Battery specification: 18650-3S2P/10.8V/5200mAh

Nominal voltage: 10.8V

Nominal capacity: 5200mAh

Charging voltage: 12.6V

Charging current: ≤3A

Discharge current: 2A

Instantaneous discharge current: 6A

Discharge cut-off voltage: 7.5V

Finished product internal resistance: 180mΩ or less

Battery weight: 0.4kg

Product dimension: 118*69*20mm (Max)

Charging temperature: 0 ~ 45℃

Discharging temperature: -40 ~ 55℃

Storage temperature: -20 ~ 35℃

Battery case: PVC soft bag

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Application: Handheld terminal, security equipment

*
*
*
