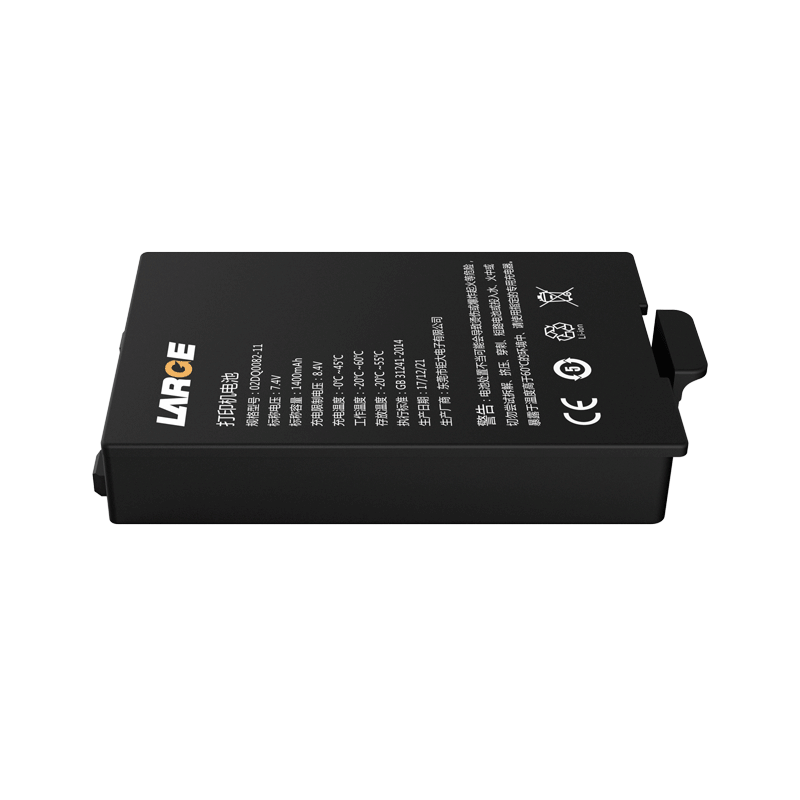

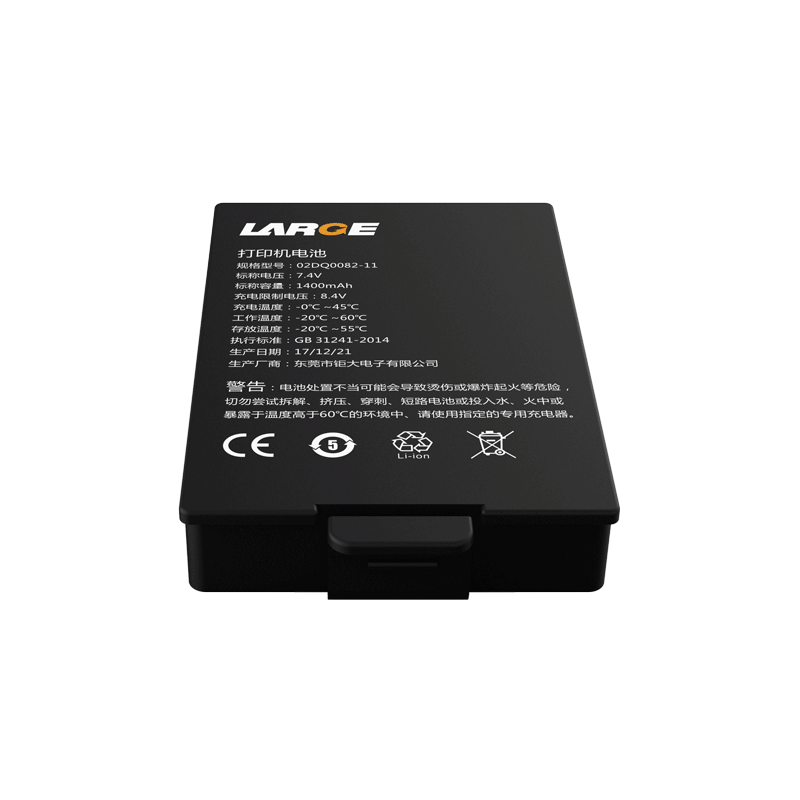

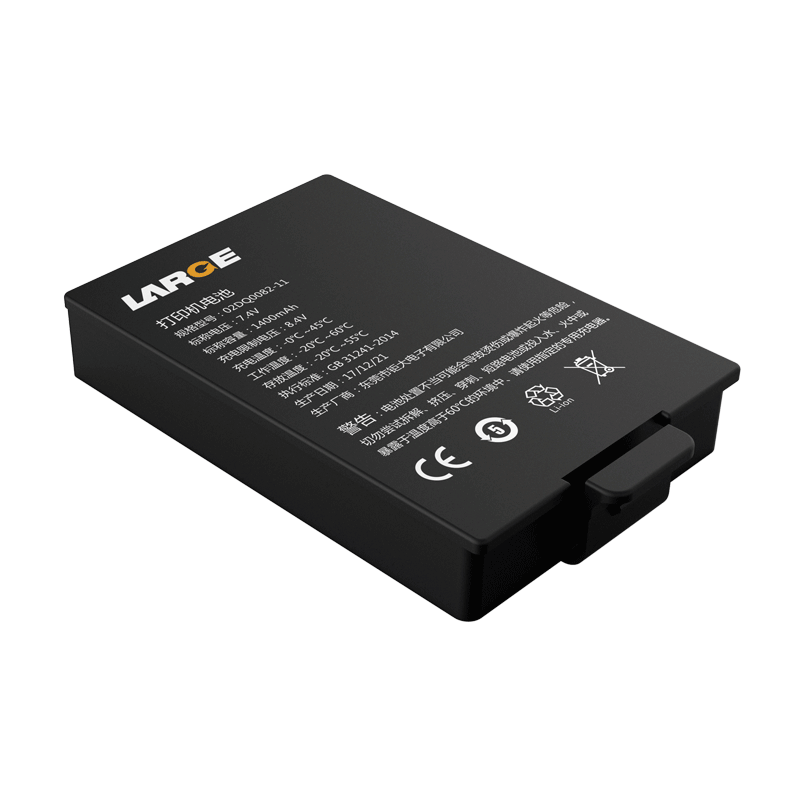

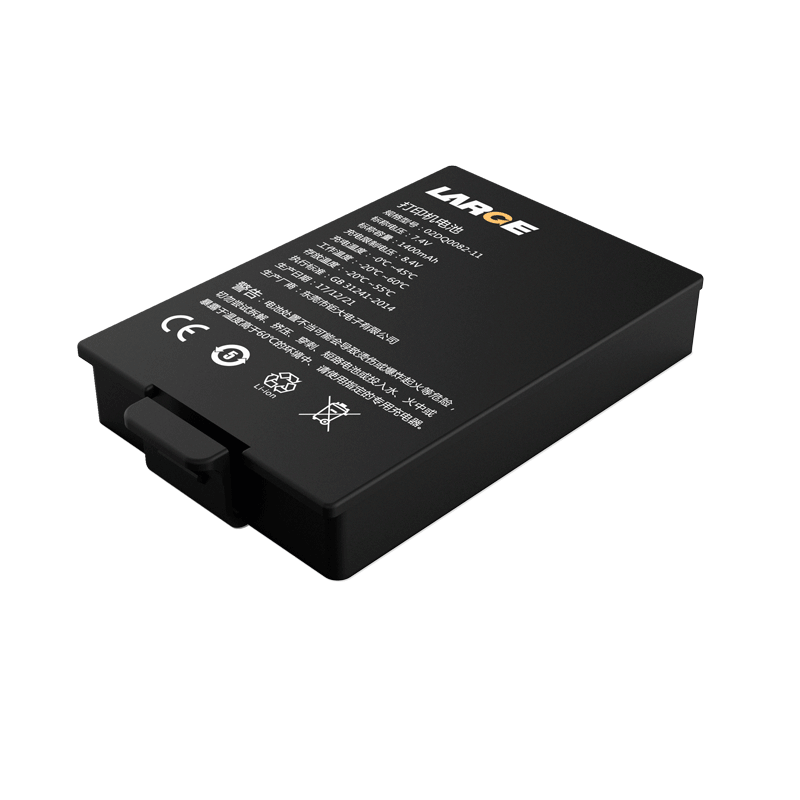

7.4V 1400mAh Polymer Lithium Ion Battery for Printer

Product Detail

Product number: 02DQ0082-11

Cell model:454261/3.7V/1400mAh

Battery specification: 454261-2S1P/7.4V/1400mAh

Nominal voltage:7.4V

Nominal capacity:1400mAh

Charging voltage: 8.4V

Charging current: ≤1400A

Discharging current: 3A

Instant discharging current: 7A

End-off voltage: 6V

Internal resistance: ≤120mΩ

Battery weight: 80g

Product dimension: 68.85*46.25*12.18mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: engineering plastic

Lithium-ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature detection, etc.

Application field: printer, POS machine,etc.

*
*
*
