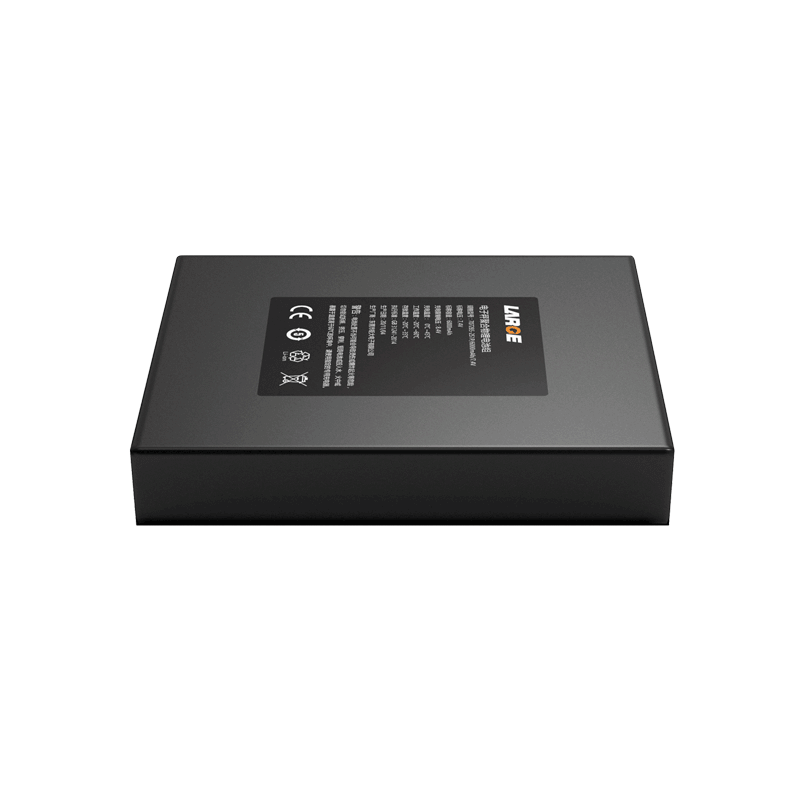

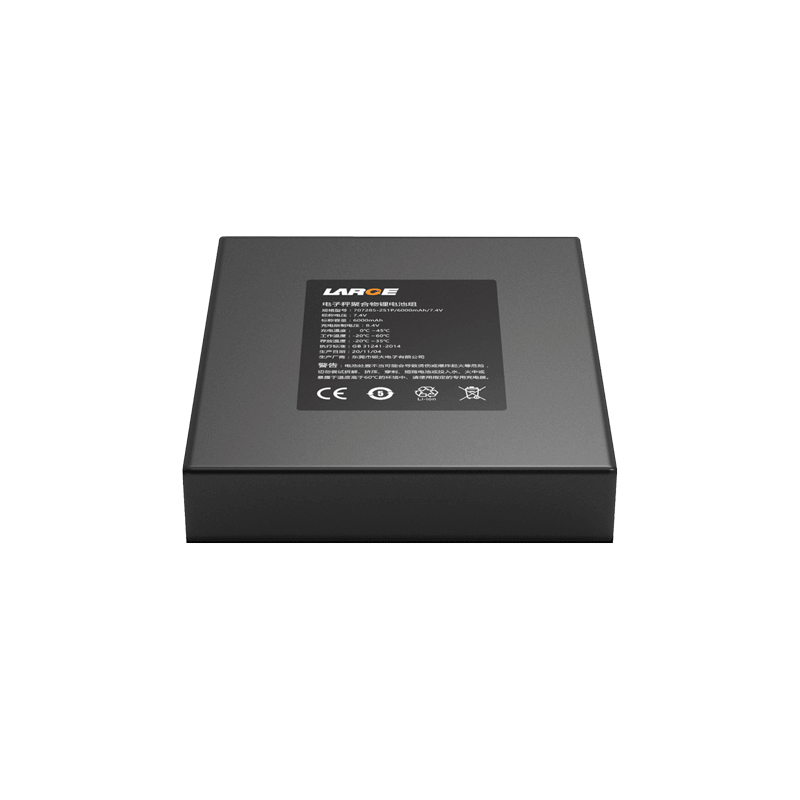

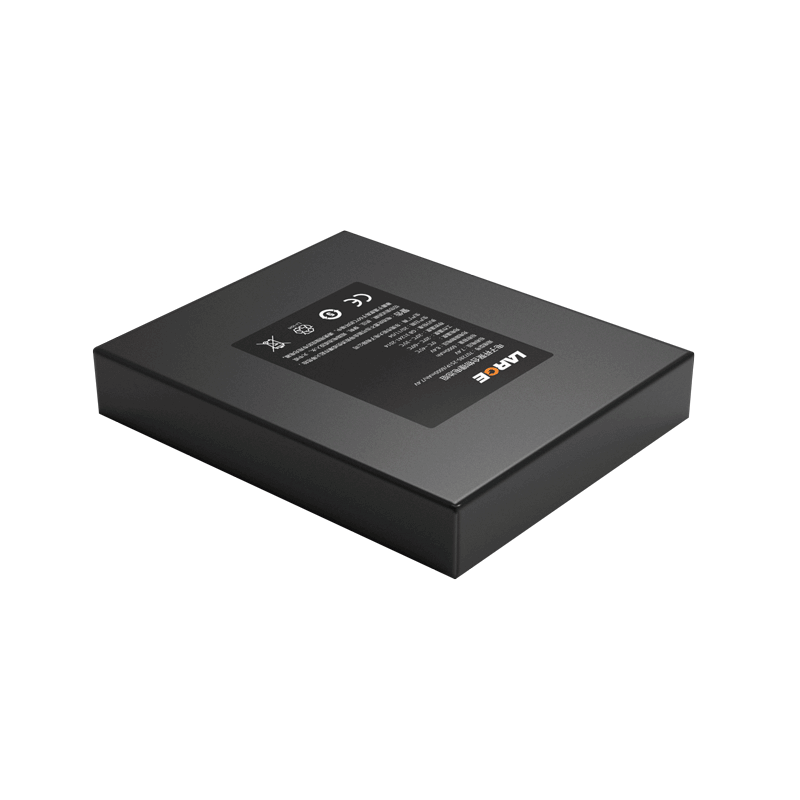

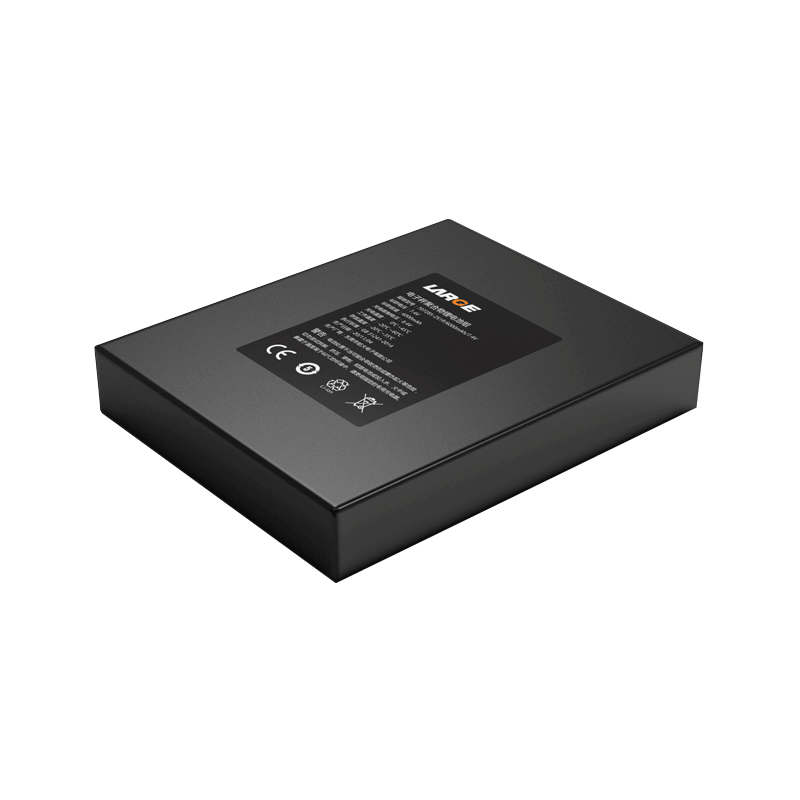

7.4V 6000mAh Lithium Polymer Battery for Electronic Scale

Product number: 03DQ0098-02

Cell model：707285-6000mAh-3.7V

Battery specification: 707285-2S1P/6000mAh/7.4V

Product dimension: 88.5×72.5×14.7mm（Max）

Nominal voltage：7.4V

Nominal capacity：6000mAh

Charging voltage: 8.4V

Charging current: ≤3A

Discharging current: ≤3A

End-off voltage: 6.0V

Internal resistance: ≤200mΩ

Battery weight: 195g

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35 ℃

Battery case: blue PVC heat shrinkable film

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, over current protection and ESD protection

Application field: electronic scale, portable device

Product features

1. Blue PVC heat shrinkable film is reliable and is easy to install.

2. Connector plug outlet: Adopt JST plug output mode to increase conductive reliability.

3. Battery protection management: Adopt imported Seiko protection chip with good stability, high precision monitoring, precise control so as to try our best to eliminate the security risks.

4. The battery pack has good security, nice discharge performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
