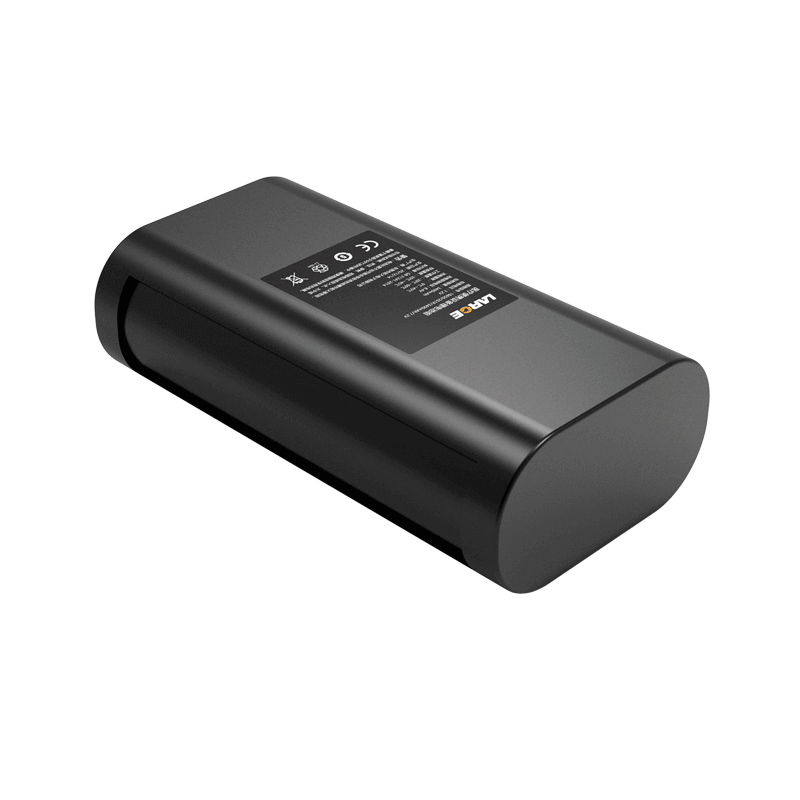

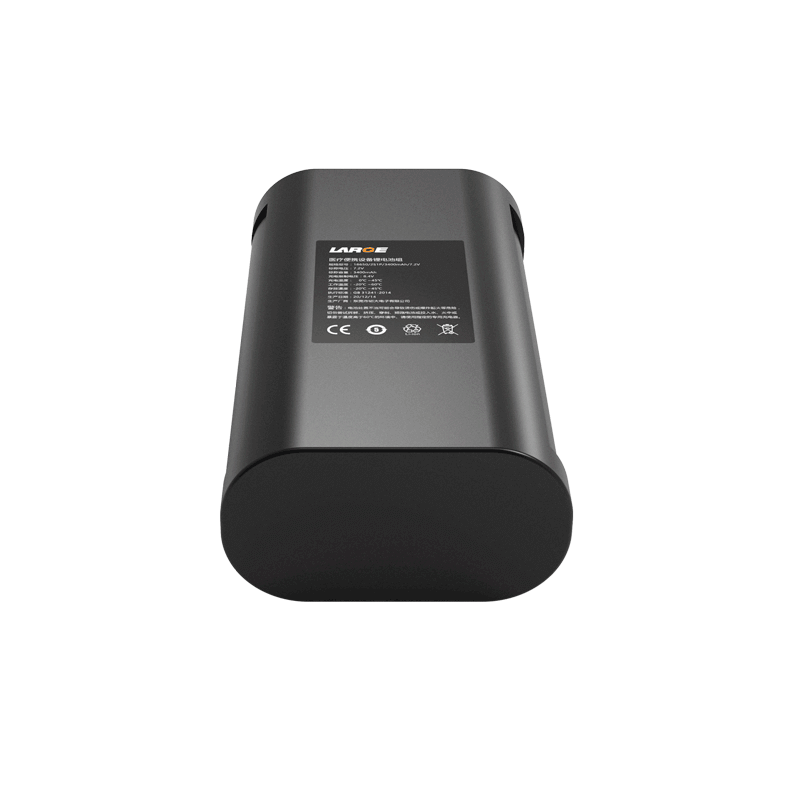

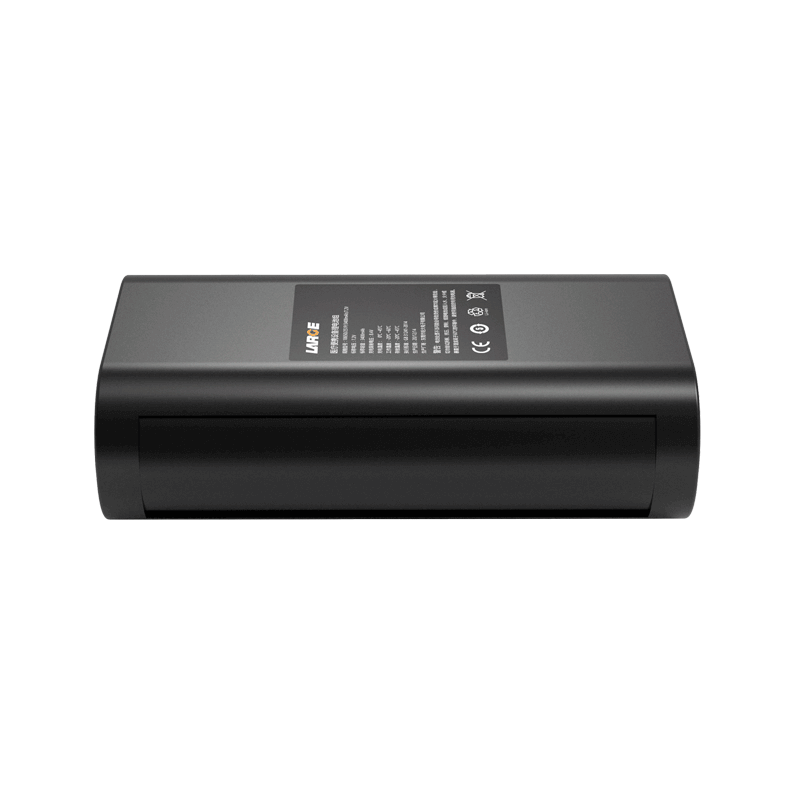

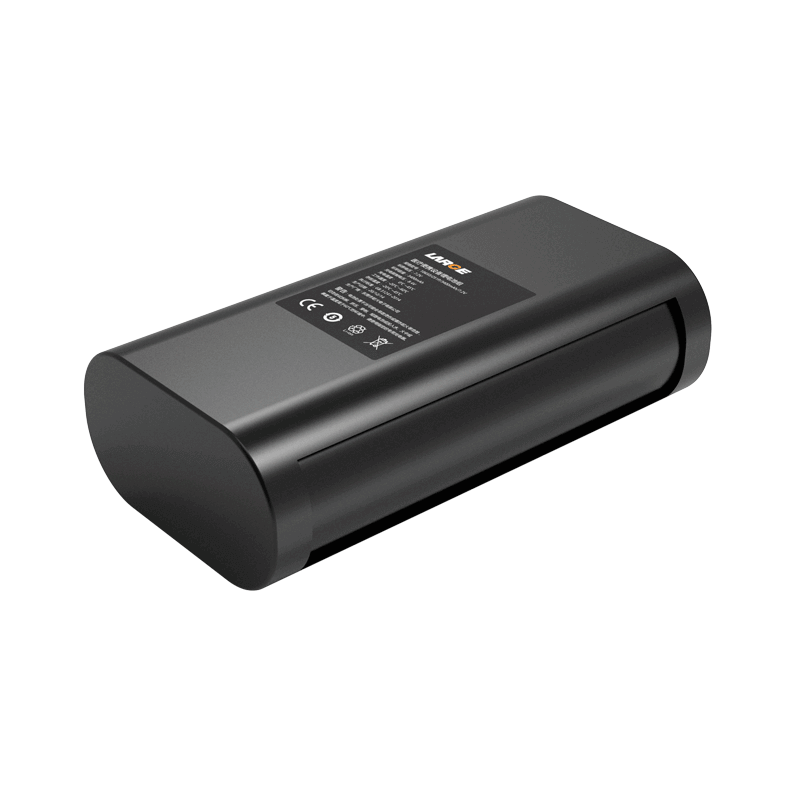

18650 7.2V 3400mAh Ternary Battery Samsung Battery Lithium Polymer Battery for Portable Medical Device

Product number: 33DZ009-01

Cell model: 18650/3.6V/3400mAh

Battery specification: 18650-2S1P-3400MAa-7.2V

Nominal voltage: 7.2V

Nominal capacity: 3400mAh

Charging voltage: 8.4V

Charging current: ≤1700mA

Discharge current: 3.4A

Instantaneous discharge current: 8-14A

Discharge cut-off voltage: 6V

Finished product internal resistance: 200 mΩ or less

Battery weight: 100G

Product dimension: 72*38*19.5mm (L*W*H)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 45℃

Battery case: PVC

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature detection, etc.

Application: Medical portable devices
