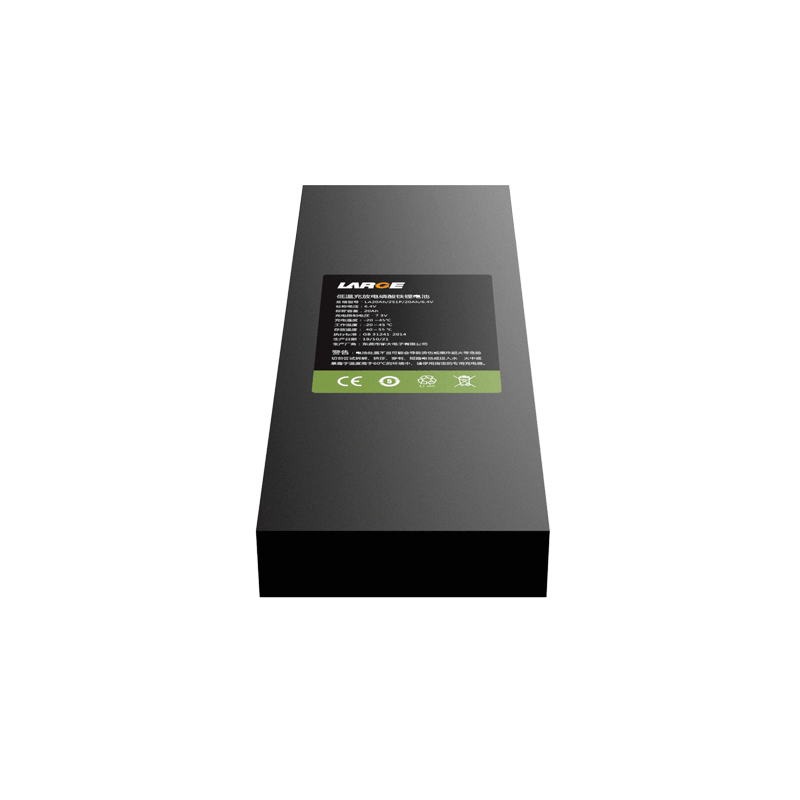

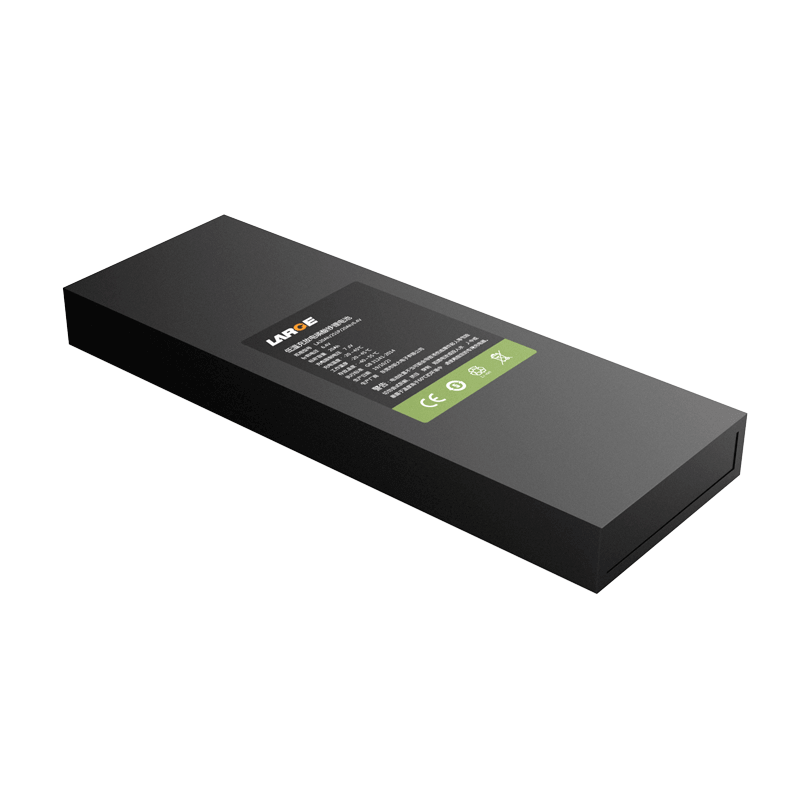

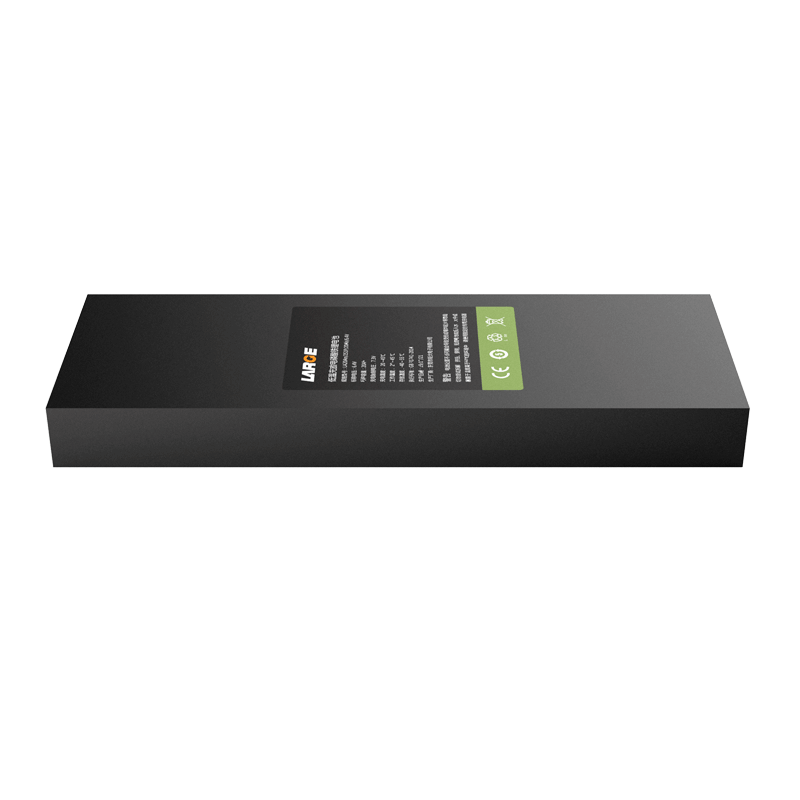

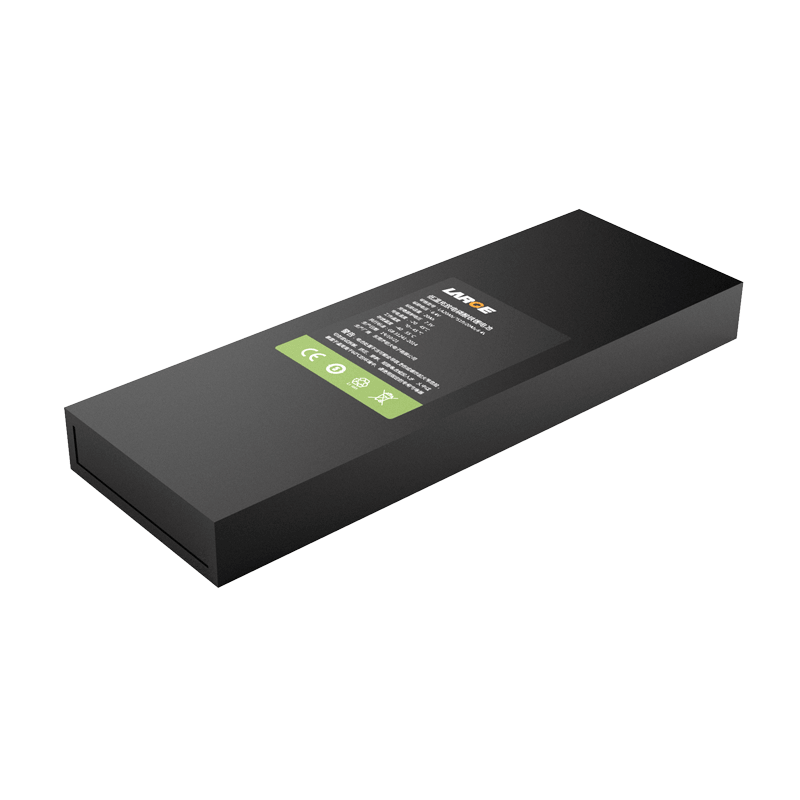

6.4V 20Ah LiFePO4 Battery Low Temperature Battery for Power Monitoring

Product Detail

Product number: 34AQ018-01

Cell model:LA20Ah/20Ah/3.2V

Battery specification: LA20Ah/2S1P/20Ah/6.4V

Nominal voltage:6.4V

Nominal capacity:20Ah

Charging voltage: 7.3V

Charging current: ≤5A

Discharging current: 4A

Instant discharging current: 8A

End-off voltage: 5.0V

Internal resistance: ≤80mΩ

Battery weight: 1.4kg

Product dimension: 335*110*35mm(Max)

Charging temperature:-20~45℃

Discharging temperature: -20~45 ℃

Storage temperature: -40~55 ℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: power monitoring

*
*
*
