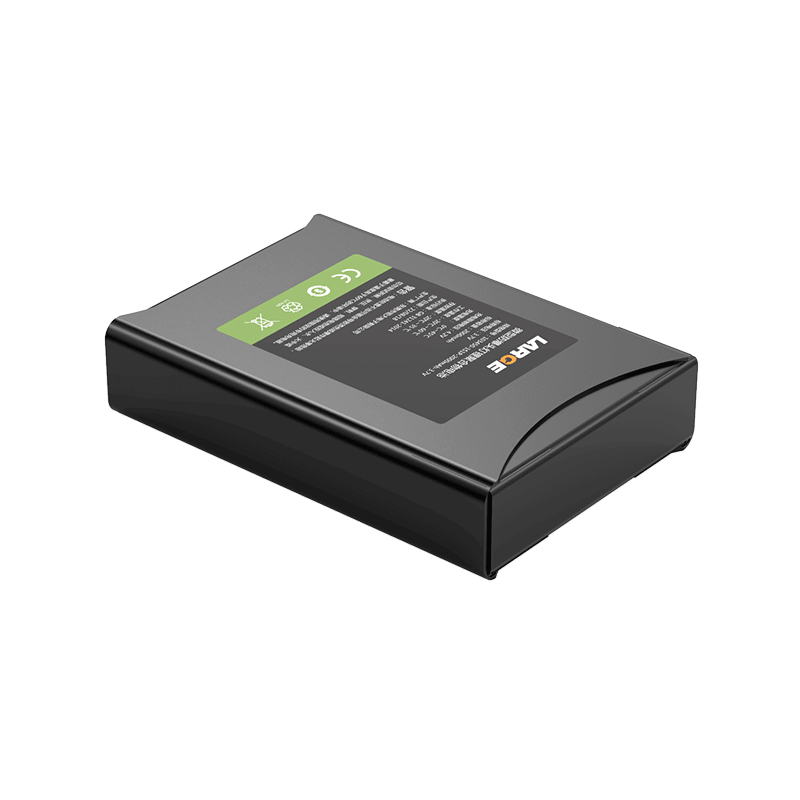

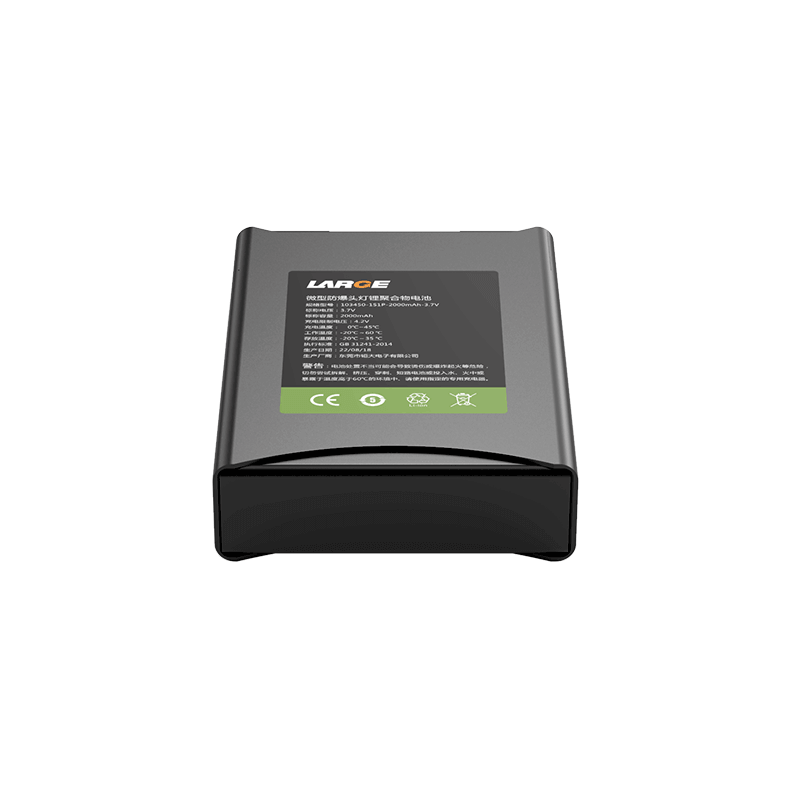

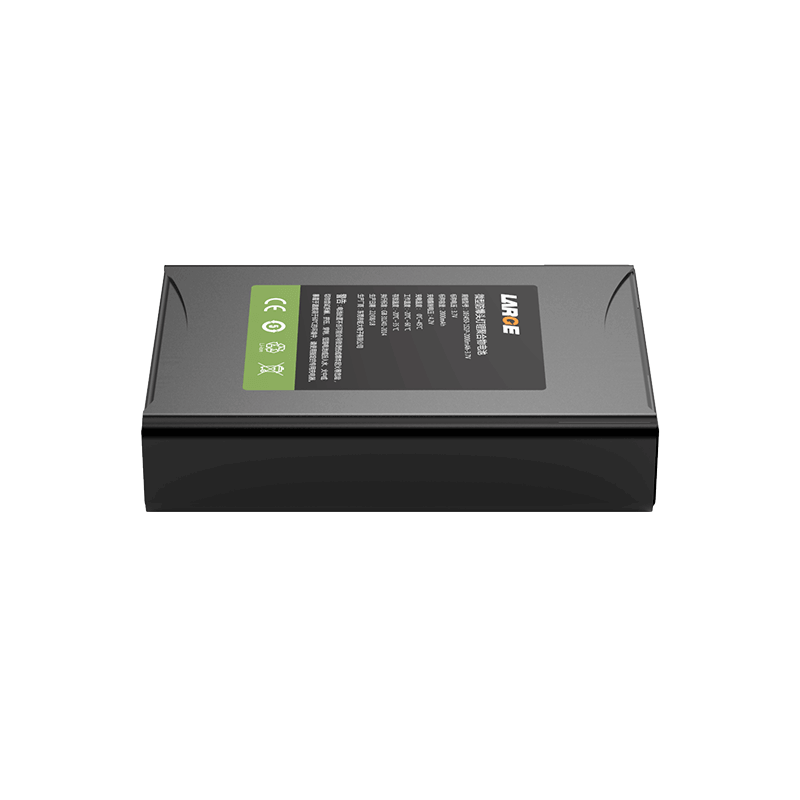

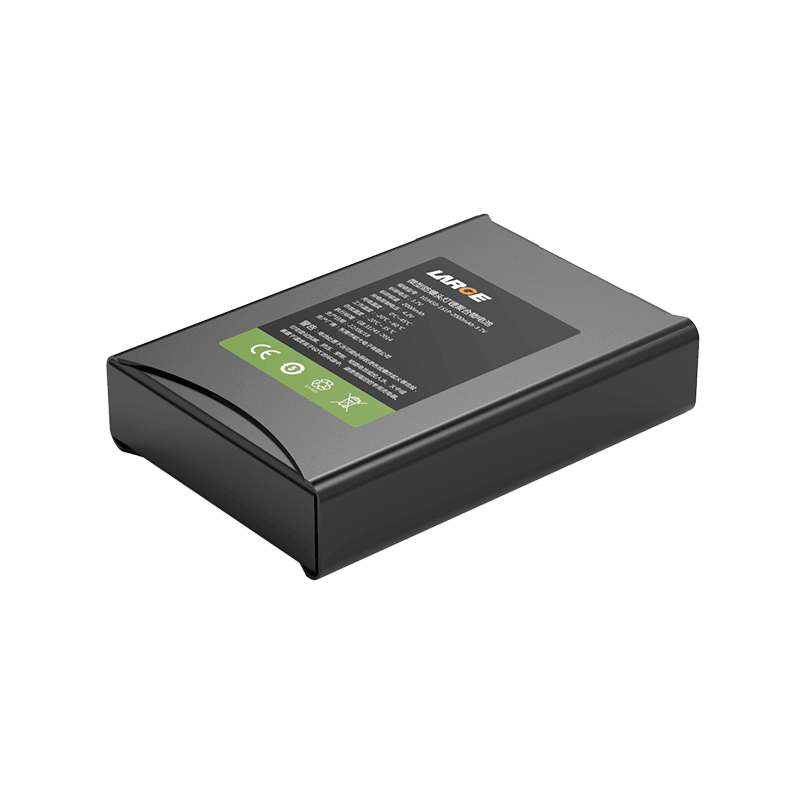

103450 3.7V 2000mAh Lithium Polymer Battery for Miniature Explosion-proof Headlamp

Product number: 04BQ118-42

Cell model: 103450-2000mAh-3.7V

Battery specification: 103450-1S1P-2000mAh-3.7V

Product size: 51*35*10mm

Nominal voltage: 3.7V

Nominal capacity: 2000mAh

Internal resistance of finished product: ≤180mΩ

Charging voltage: 4.2V

Charging current: ≤1.9A

Discharge current: ≤1.9A

Discharge cut-off voltage: 3.0V

Battery weight: 50g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 ~ 35 ° C

Battery package: Blue PVC heat shrinkable film

Output mode: JST plug

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection,ESD protection, etc.

Applications: miniature explosion-proof headlamps, special lighting torches, lighting equipment
