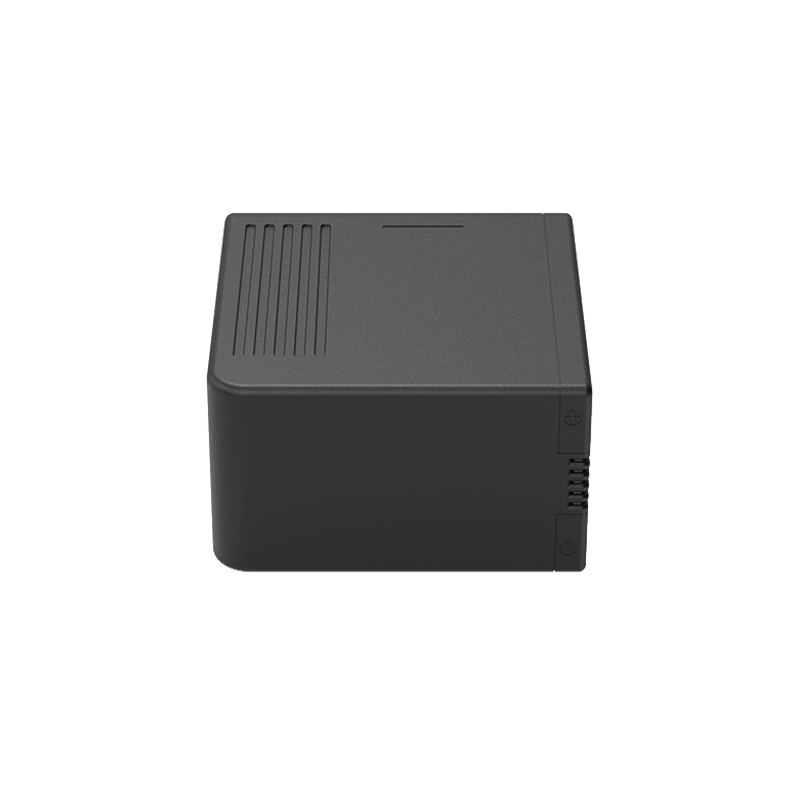

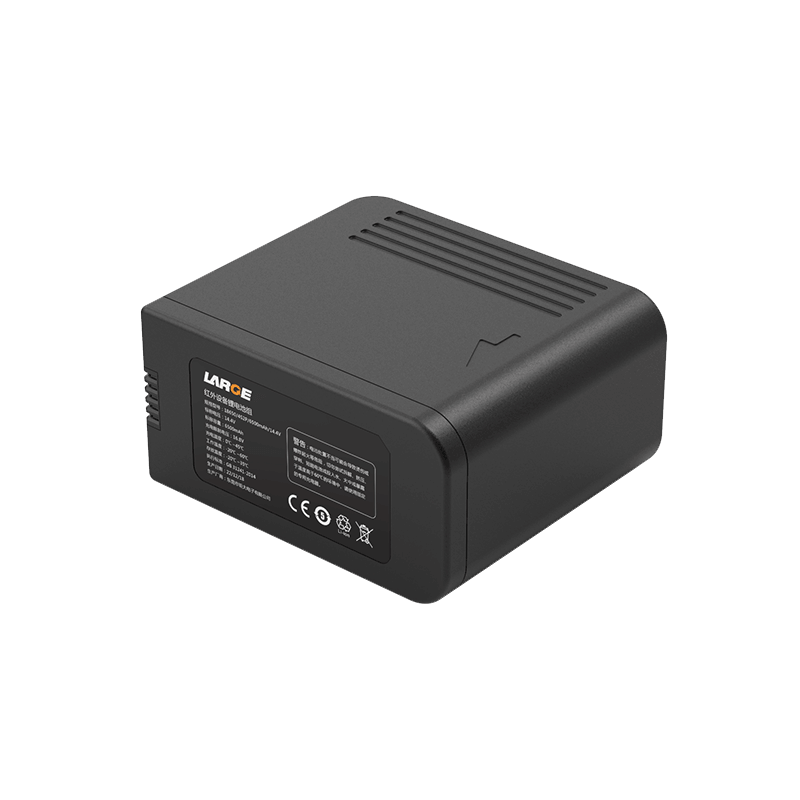

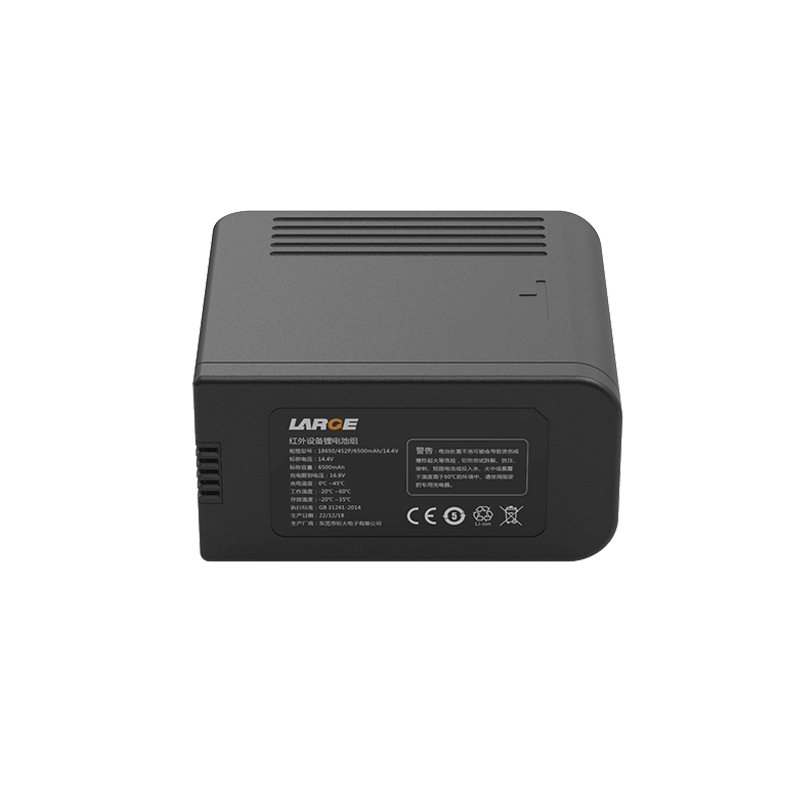

18650 14.4V 6500mAh Infrared Device Lithium-ion Battery Pack

Product number: 01DQ0030-15

Battery model: 18650-3250mAh-3.6V

Battery specification: 18650-4S2P-6500mAh-14.4V

Product size: 75*84*43mm (Max)

Nominal voltage: 14.4V

Nominal capacity: 6500mAh

Finished internal resistance: ≤200mΩ

Charging voltage: 16.8V

Charging current: ≤3.0A

Discharge current: ≤3.0A

Discharge cut-off voltage: 11.2V

Battery weight: 450g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery case: ABS+PC

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.

Application: infrared equipment, industrial equipment

Product Features

1.ABS+PC shell increased the reliability and firmness of the battery;

2.Hardware output: Gold-plated shrapnel output increases electrical reliability;

3.Battery protection management: Use special lithium battery protection chip with high stability, high precision monitoring, accurate control,temperature protection and other functions,so as to maximize the elimination of safety hazards;

4.Data communication management: TI-SMBus software management chip, SMBus communication accurate data transmission, real-time battery status monitoring and control.

5.The battery pack has nice safety, good discharge performance and long cycle life;

6.The battery pack has long cycle life of, in line with low carbon, energy saving, environmental protection value concept.
