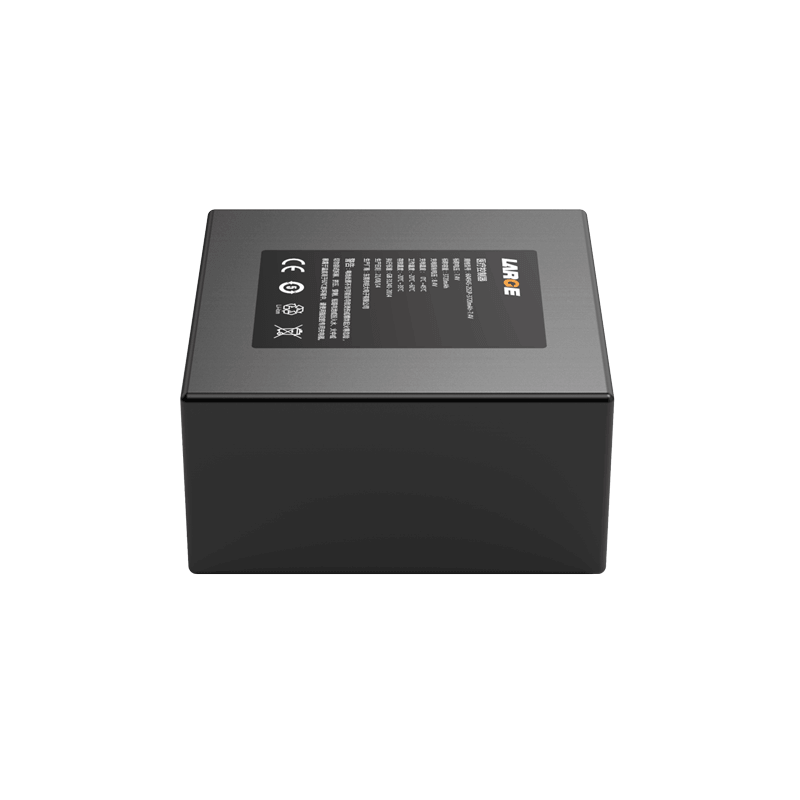

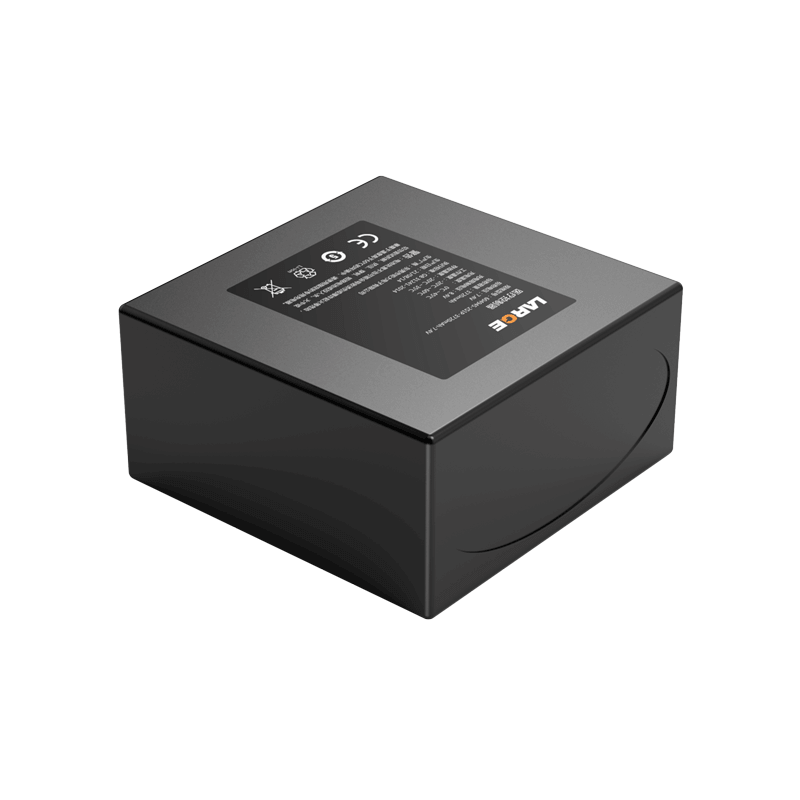

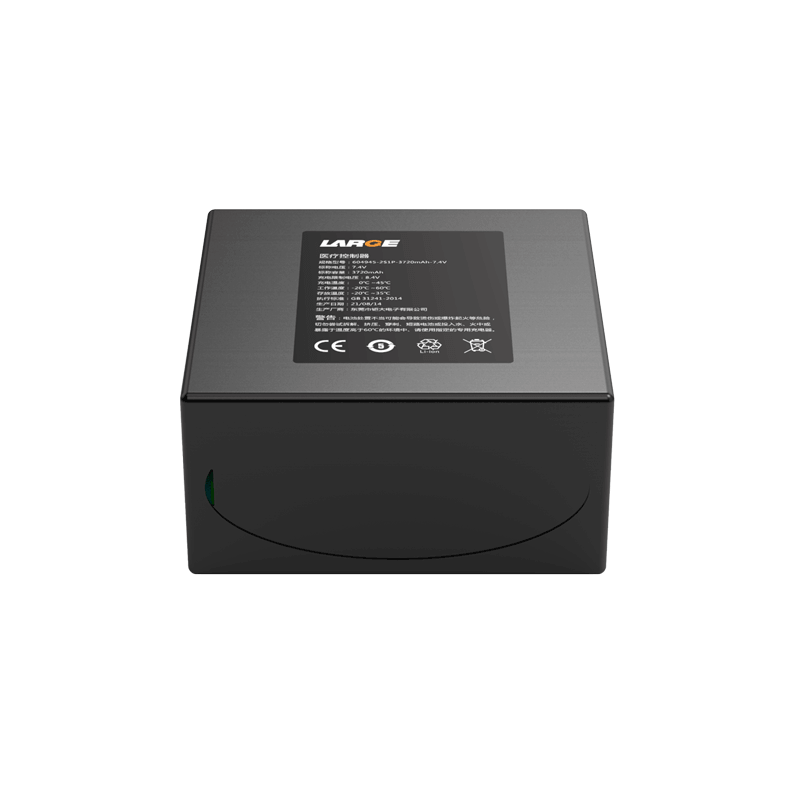

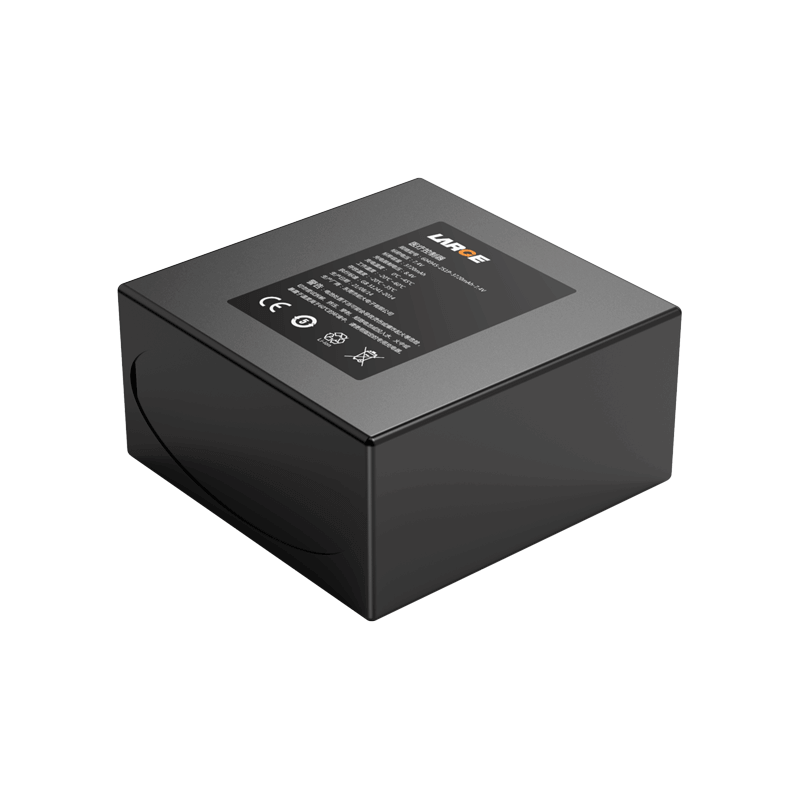

3720mAh 7.4V Lithium Polymer Battery for Medical Controller

Product Detail

Product number: 08DQ0036-01

Cell model: 604945-1860MAH-3.7V

Specification: 604945-2S1P-3720MAH-7.4V

Nominal voltage: 7.4V

Nominal capacity: 3720mAh

Charging voltage: 8.4V

Charging current: ≤1.8A

Discharge current: ≤ 5.5a

Discharge cut-off voltage: 6.0V

Product internal resistance: ≤200mΩ

Battery weight: 140G

Product size: 50*50*25mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery case: PVC without case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Portable medical device controller, portable medical device


Product Features

1.Thermal shrinkable PVC package has simple process, environmental protection and lightweight. It can be easily fixed into the host cabin.

2.National standard cable output mode adopts solder joint. Tin welding can increase conductive reliability;

3.Adopt imported Seiko protection chip and FETMOSF with low internal resistance, which has good stability, high precision monitoring and precise control, to eliminate security risks to the maximum.

4.The battery pack has good safety, nice discharge performance and long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.

*
*
*
