Product number: 01DQ0155-01
Cell model: 26650-3600mAh-3.2V
Battery specification: 26650-12S9P-32.4Ah-38.4V
Product size: 320*220*125mm
Nominal voltage: 38.4V
Nominal capacity: 32.4Ah
Finished internal resistance: ≤200mΩ
Charging voltage: 43.8V
Charging current: ≤10A
Discharge current: ≤30A
Discharge cut-off voltage: 24V
Battery weight: 14g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 ~ 35 ℃

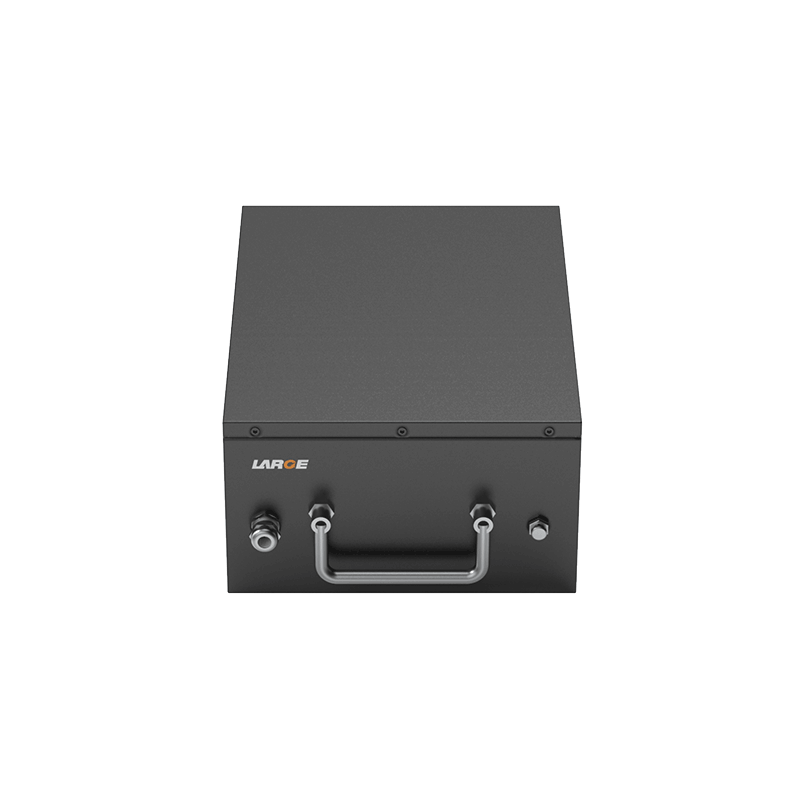

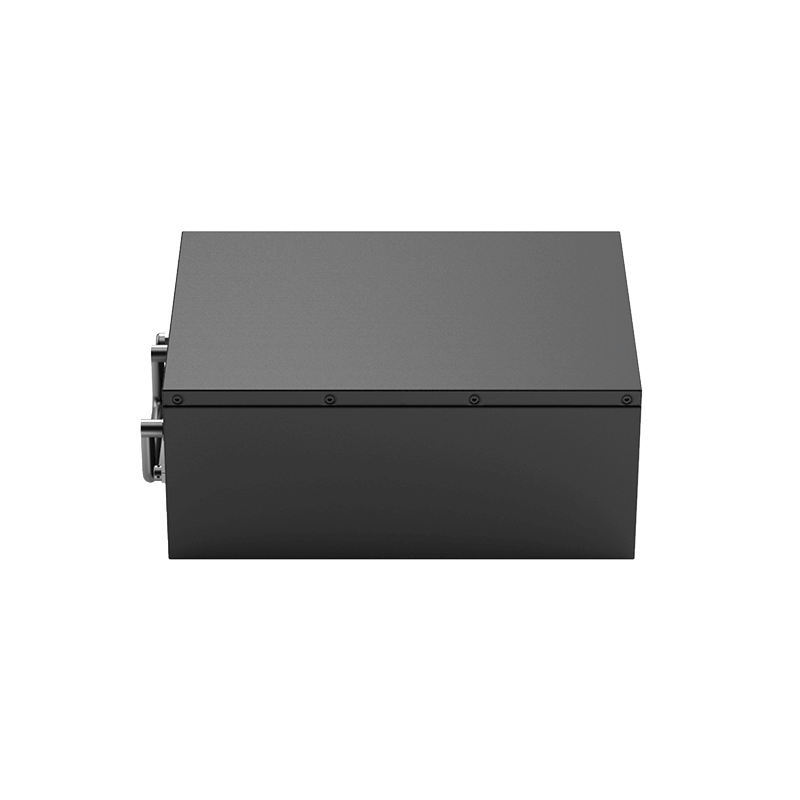

Battery case: Aluminum alloy case
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection and so on
Application: disinfection robot, AGV, energy storage equipment, robot
1.Aluminum alloy shell increases the reliability and immobility of the battery;
2.The battery pack is assembled by special cell bracket, protected by epoxy plate and connected by special nickel sheet, which has good vibration and impact resistance.
3.Connector plug output terminal: use XT60 plug output mode to increase the electrical conductivity of the plug.
4.Battery protection management: Use special lithium battery protection chip with high stability, nice precision monitoring, precise control, temperature protection and other functions, so as to maximize the elimination of safety hazards;
5.Data communication management: Use 485 communication for precise data transmission, CAN bus, accurate temperature control, real-time battery condition monitoring and control to maximize the elimination of security risks.
6.BMS communication uses optical coupling isolation, the product supports 485 bus as optional communication for customers, supports networking, and communicates at a baud rate of 9600bps.
7.The battery pack has good safety, nice discharge performance and long cycle life;
8.The battery pack has long cycle life, in line with the value of low carbon, energy saving, environmental protection;
