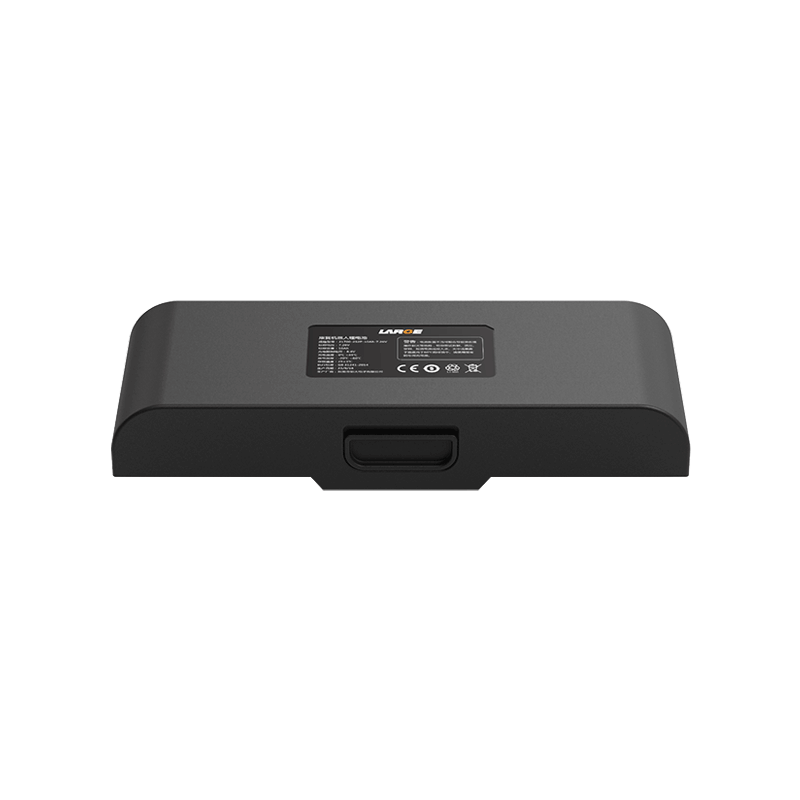

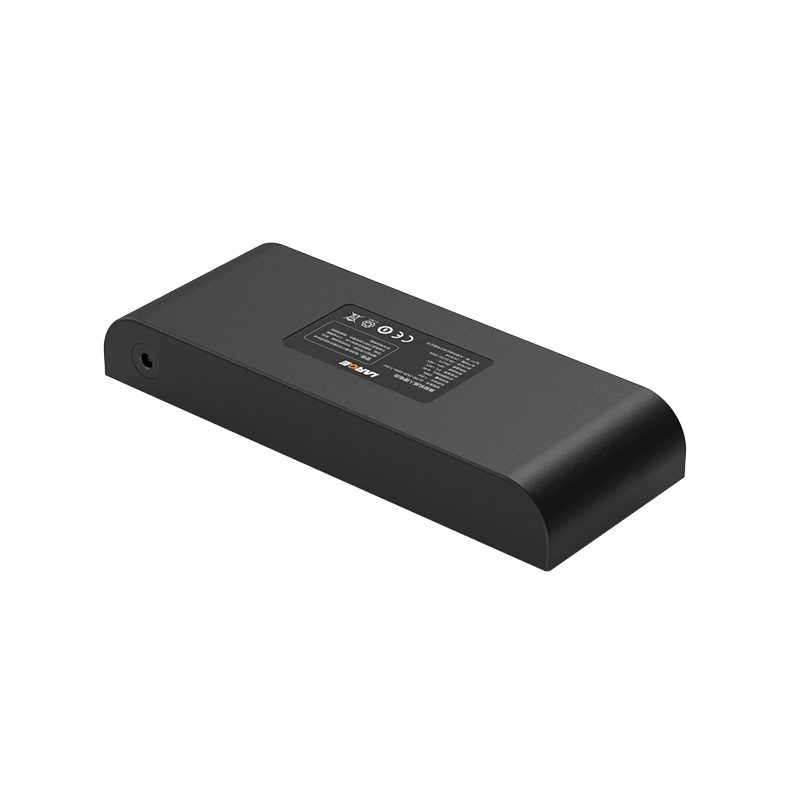

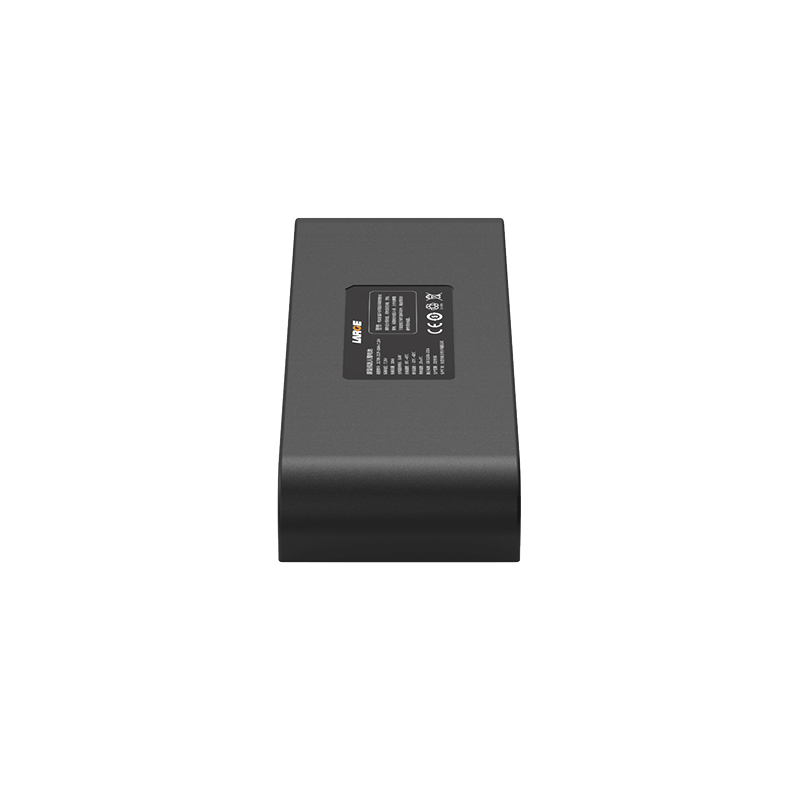

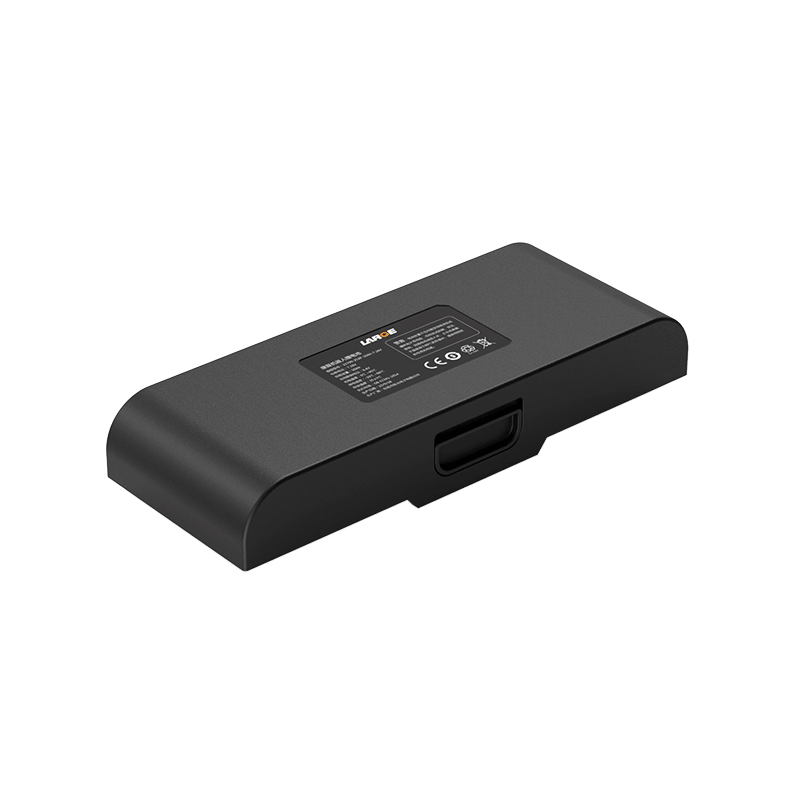

21700 7.26V 10Ah Rehabilitation Robot Lithium-ion Battery

Product number: 06DQ068-02

Cell model: 21700-5000mAh-3.63V

Battery specification: 21700-2S2P-10Ah-7.26V

Product size: 210*81.5*30mm

Nominal voltage: 7.26V

Nominal capacity: 10Ah

Internal resistance of finished product: ≤100mΩ

Charging voltage: 8.4V

Charging current: ≤4A

Discharge current: ≤4A

Discharge cut-off voltage: 5.4V

Battery weight: 500g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: 25±3℃

Battery case: ABS+PC case

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.

Application: rehabilitation robot, medical equipment

Product Features

1.ABS+PC shell increases the reliability and firmness of the battery;

2.The battery pack is assembled with special battery cell bracket, protected by epoxy plate and connected by special nickel sheet, which has good shock and impact resistance.

3.Hardware output:Use gold-plated shrapnel output to increase electrical reliability;

4.Battery protection management: Use special lithium-ion battery protection chip, with high stability, high precision monitoring, accurate control, temperature protection and other functions, to eliminate safety hazards;

5.Data communication management: Use TI-SMBus software management chip, SMBus communication accurate data transmission, accurate temperature control, to minimize security risks.

6.The battery pack has nice safety, good discharge performance and long cycle life;

7.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
