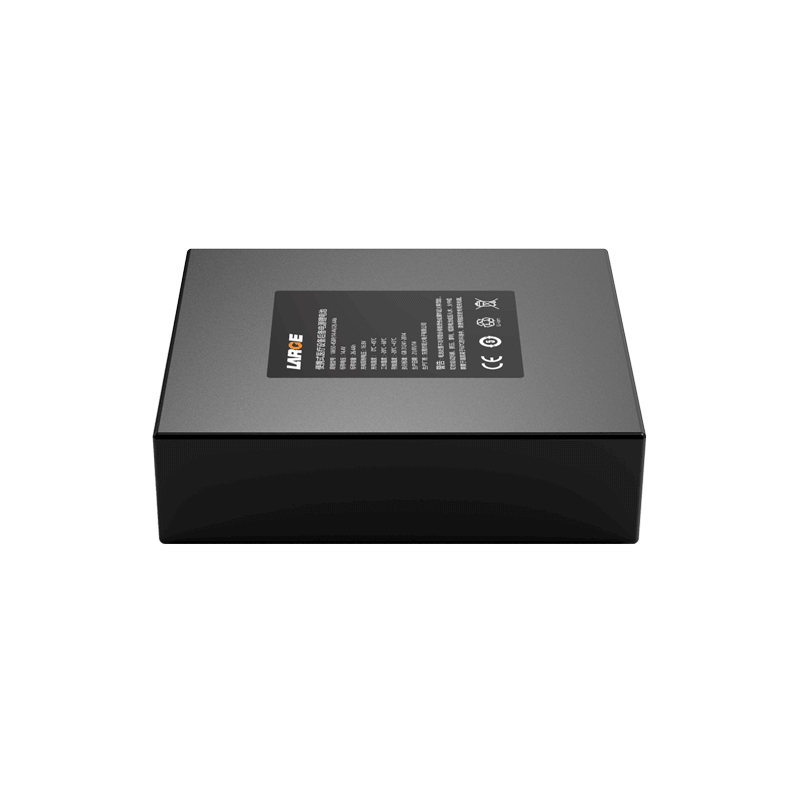

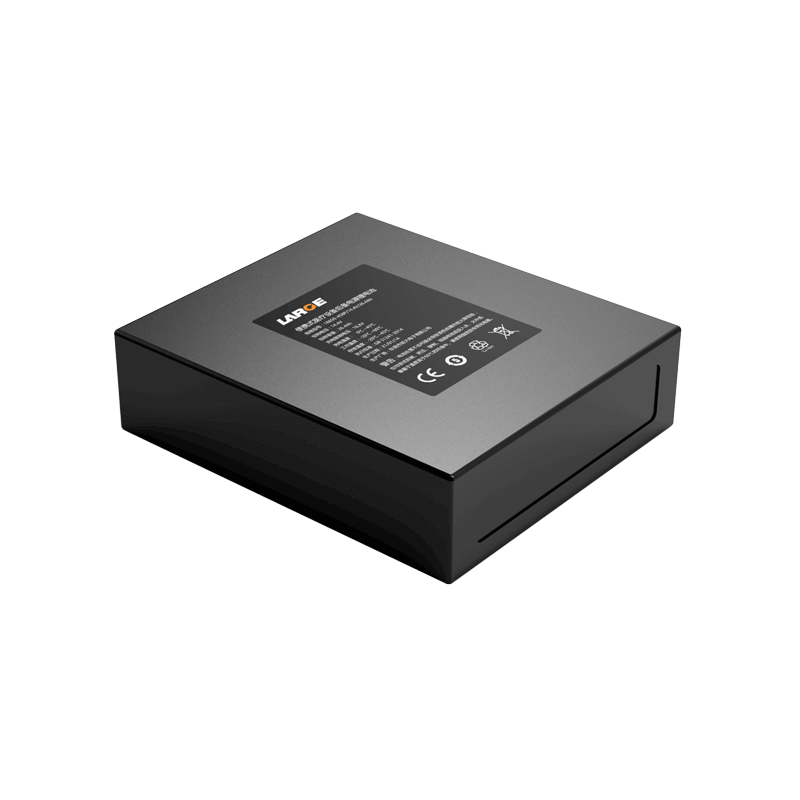

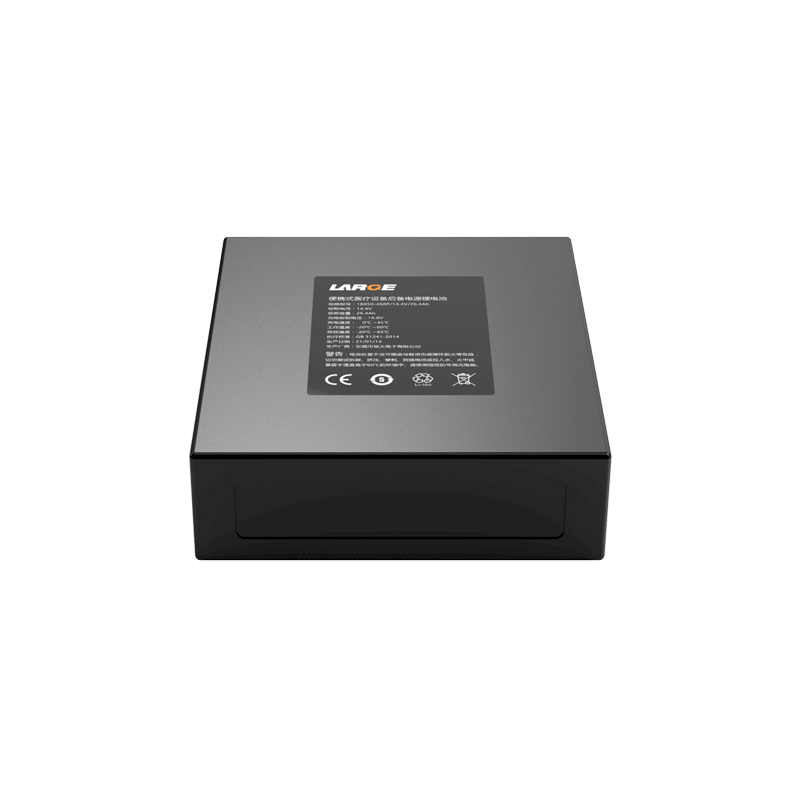

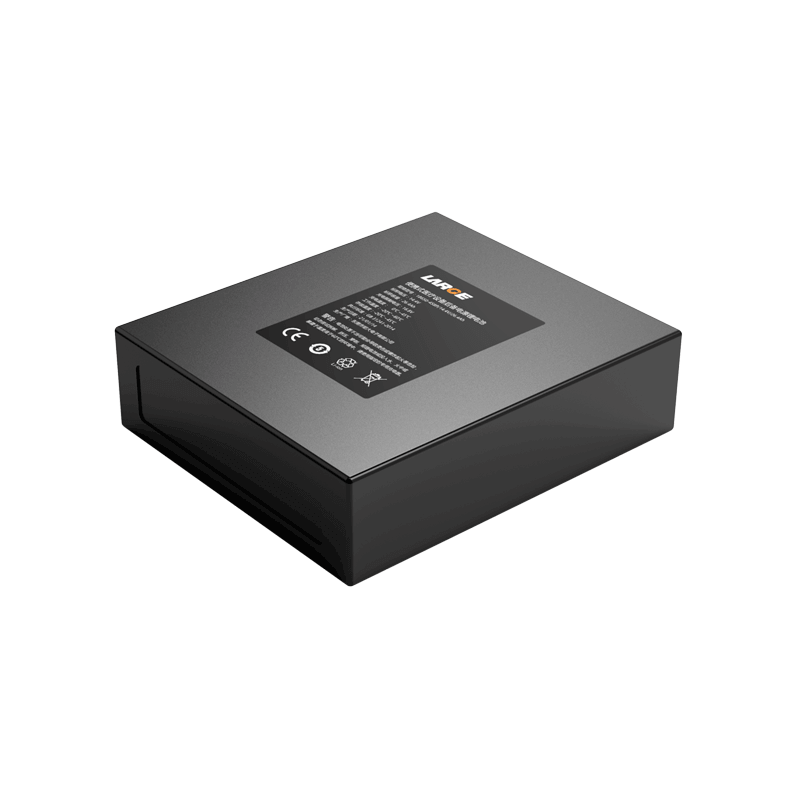

18650 14.4V 26.4Ah Samsung Battery for Portable Medical Device

Project number : 33DZ024-01

Cell model: 18650/3.6V/3.3Ah

Battery specification: 18650-4S8P/14.4V/26.4Ah

Nominal voltage: 14.4V

Nominal capacity: 26.4Ah

Charging voltage: 16.8V

Charging current: ≤13.2A

Discharge current: 15A

Instant discharge current: 20-40A

Discharge cut-off voltage: 10.8V

Finished product internal resistance: ≤150mΩ

Battery weight: 200g

Product dimension: 46*155*167mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 45℃

Battery case: PVC

Lithium-ion protection: short circuit protection, over charge protection, over discharge protection, over current protection, temperature protection, etc.

Application: backup power supply for portable medical equipment
