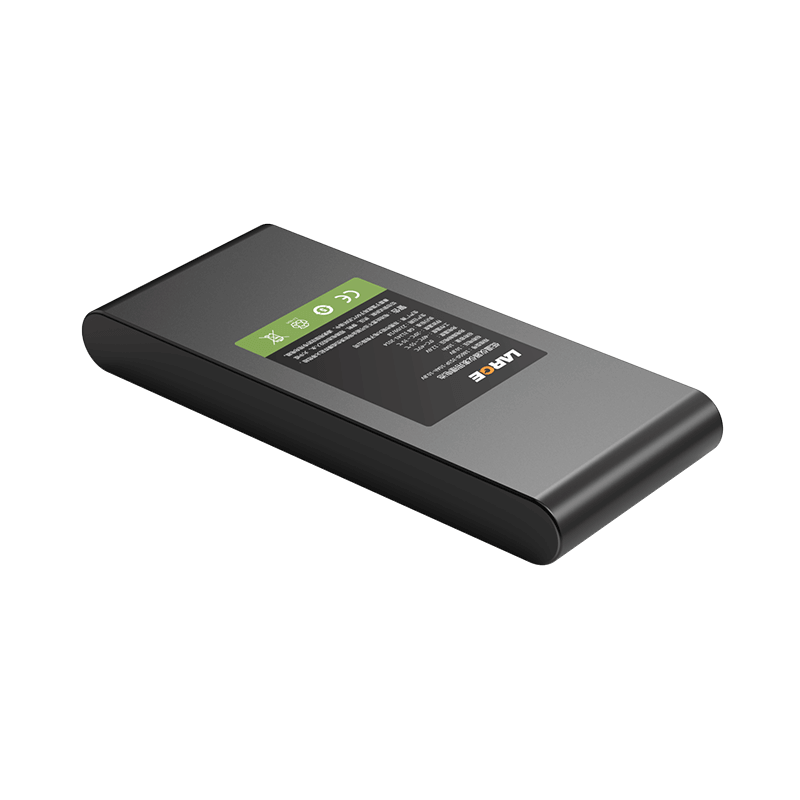

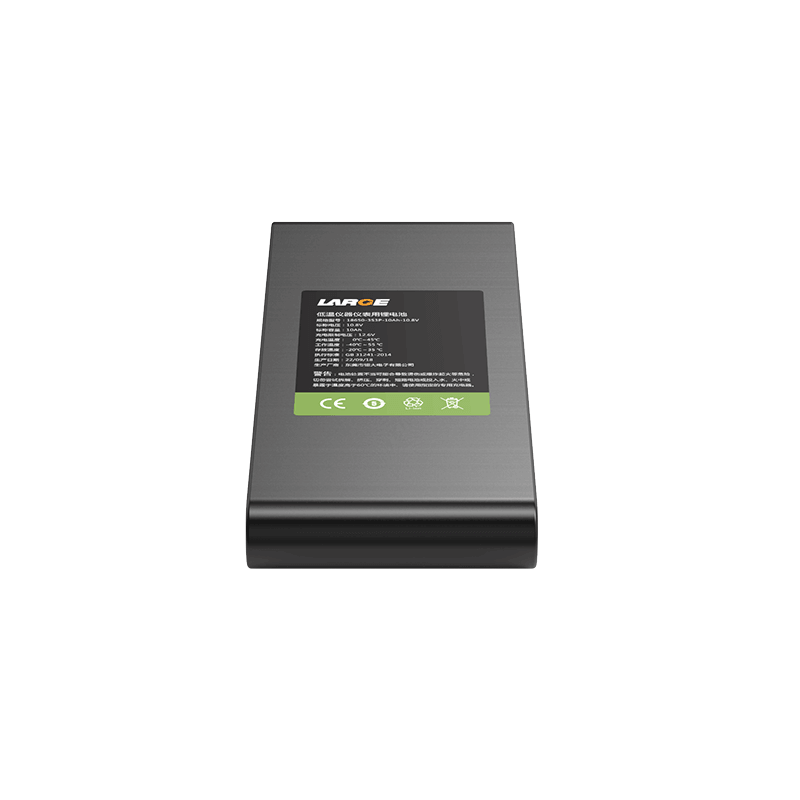

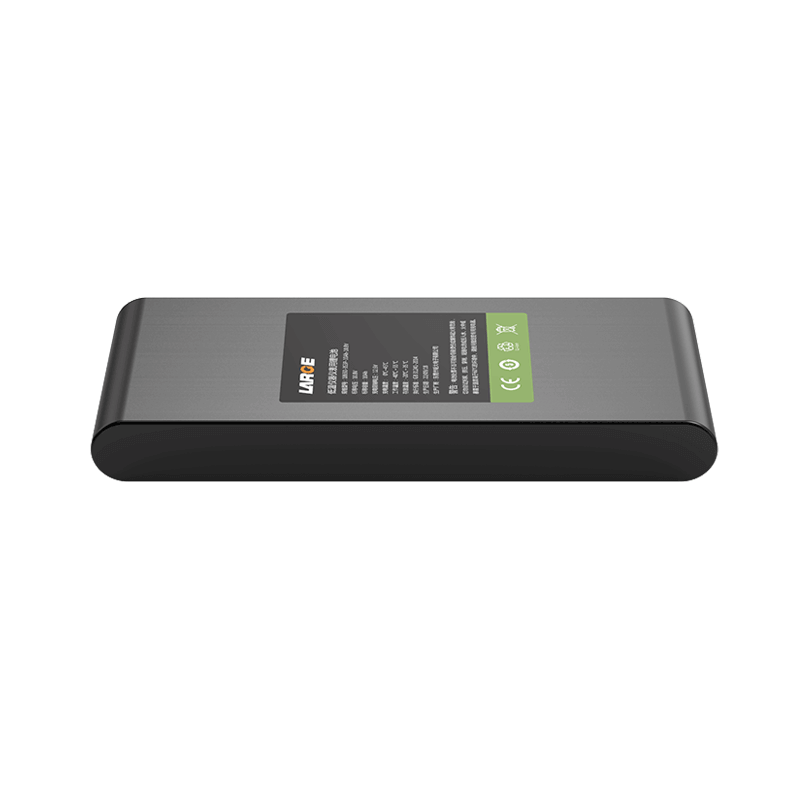

18650 10.8V 10Ah Low Temperature Lithium-ion Battery for Instrument

Product number: 35AQ833-01

Cell model: 18650-3350mAh-3.6V

Battery specification: 18650-3S3P-10Ah-10.8V

Nominal voltage: 10.8V

Nominal capacity: 10Ah

Charging voltage: 12.6V

Charging current: ≤5A

Discharge current: 2A

Instant discharge current: 15A

Discharge cut-off voltage: 7.5V

Internal resistance of finished product: ≤200mΩ

Battery weight: 490g

Product size: 168*72*19.5mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ +55℃

Storage temperature: -20 ~ +35℃

Battery package: soft package

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection, ESD protection, SMBUS communication, etc.

Application: instrumentation, special handheld equipment, portable equipment, security
