Product number: 41DZ003-11

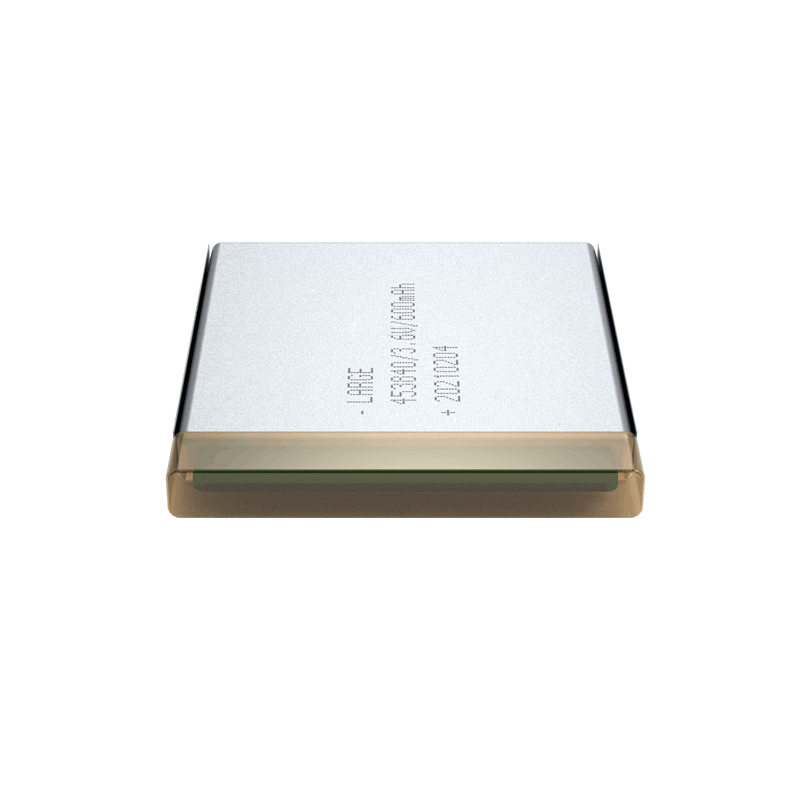

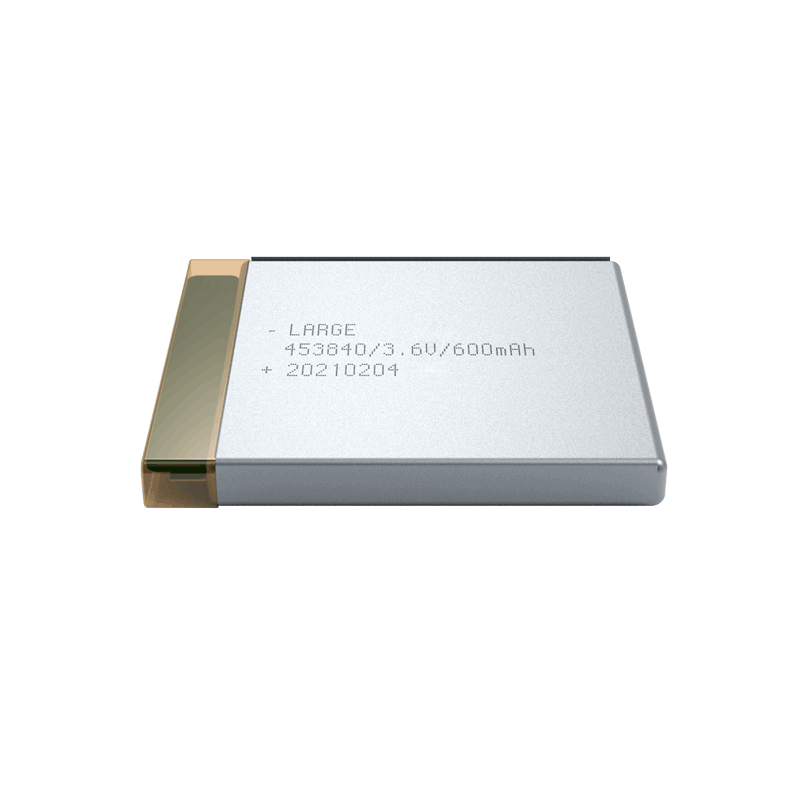

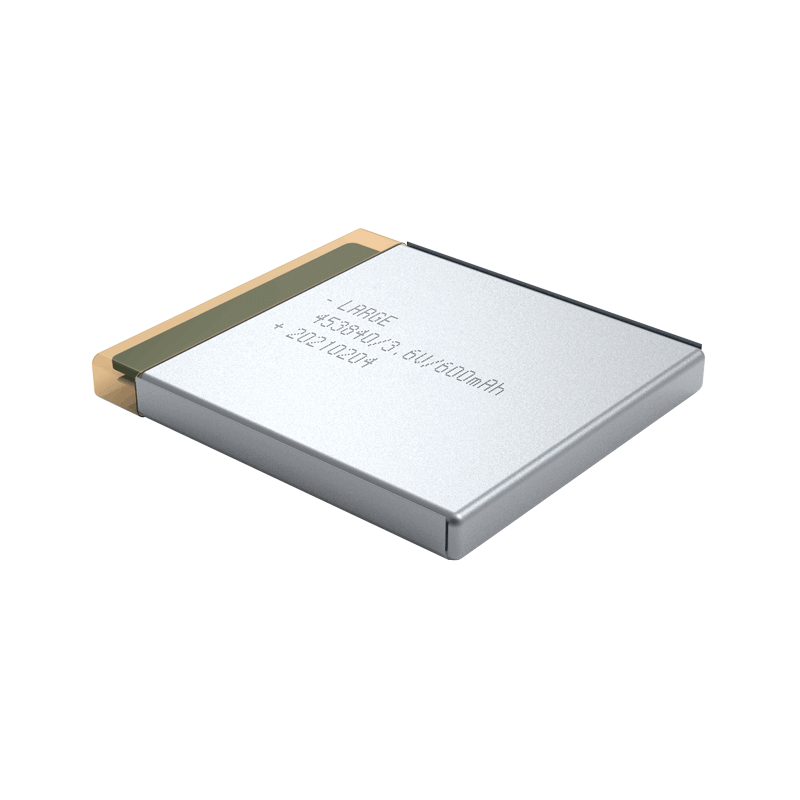

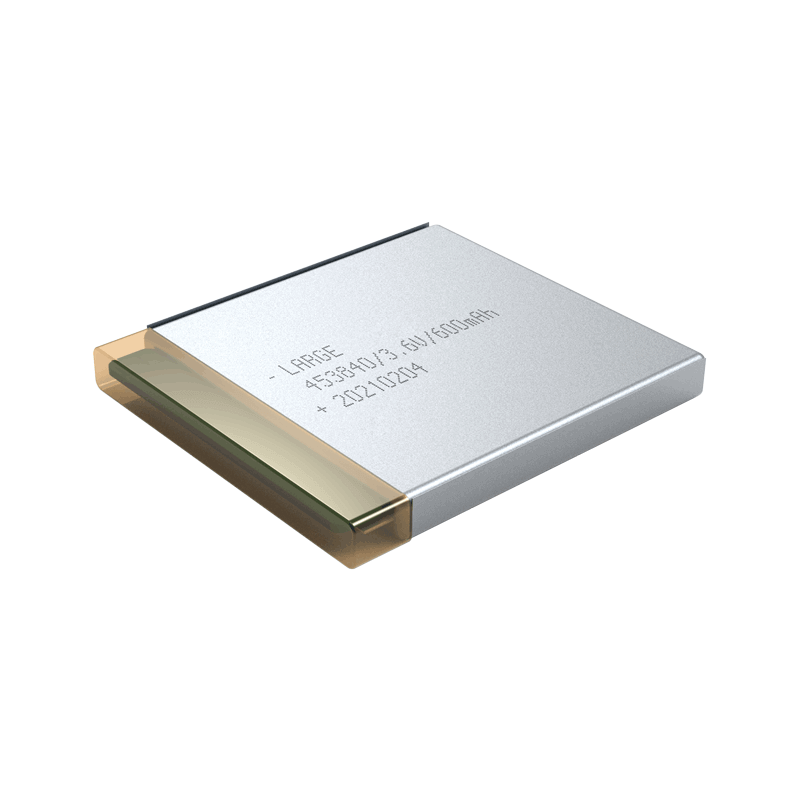

Cell model: 453840-1S1P-600MAH-3.6V
Battery specification: 600mAh-3.6V
Nominal voltage: 3.6V
Nominal capacity: 600mAh
Charging voltage: 4.2V
Charging current: ≤300mA
Discharge current: 500mA
Instant discharge current: 600mA
Discharge cut-off voltage: 3V
Finished product internal resistance: ≤300mΩ
Battery weight: 25g
Product dimension: Length M3× Width 38.5× Thickness 4.55mm(Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 55℃
Storage temperature: -20 ~ 45℃
Battery package: industrial grade
Lithium-ion battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application fields: oil station, gas station, mining, etc.
· Low power consumption;
· Dual IC protection scheme can increase restorable PTC without short circuit spark.
· The battery pack has good safety and explosion-proof large capacity;
· The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection;
· The product is in good discharge condition when used in special occasions;
· Design refer to GB3836/ EXIB IIB T4.
