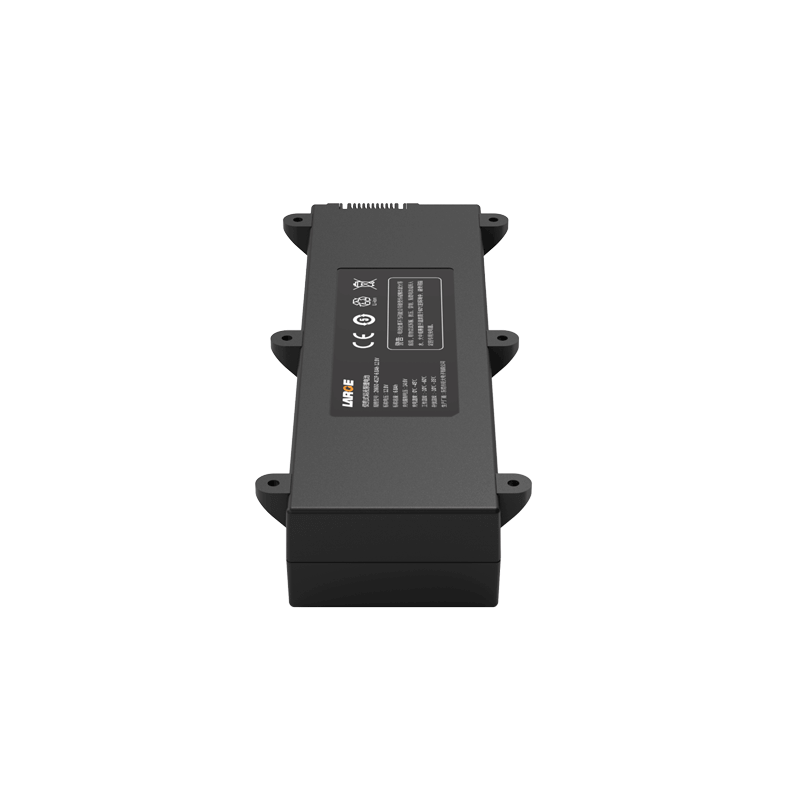

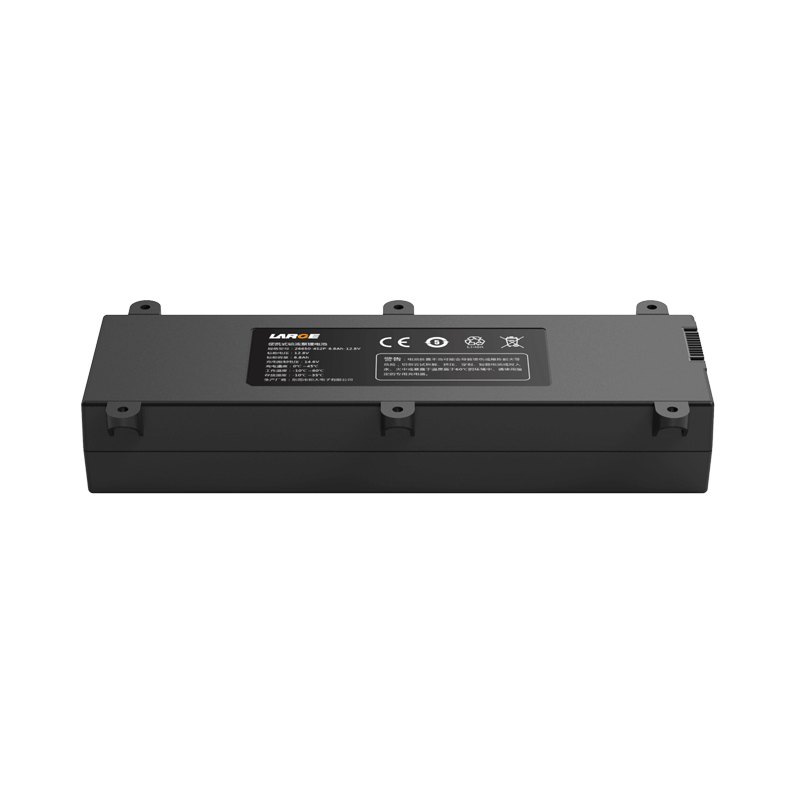

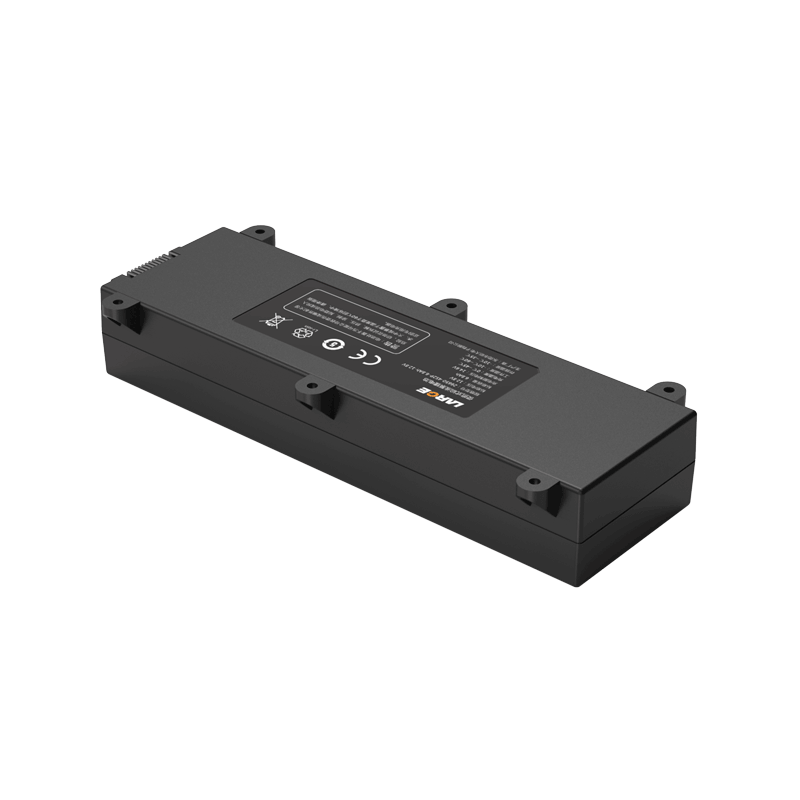

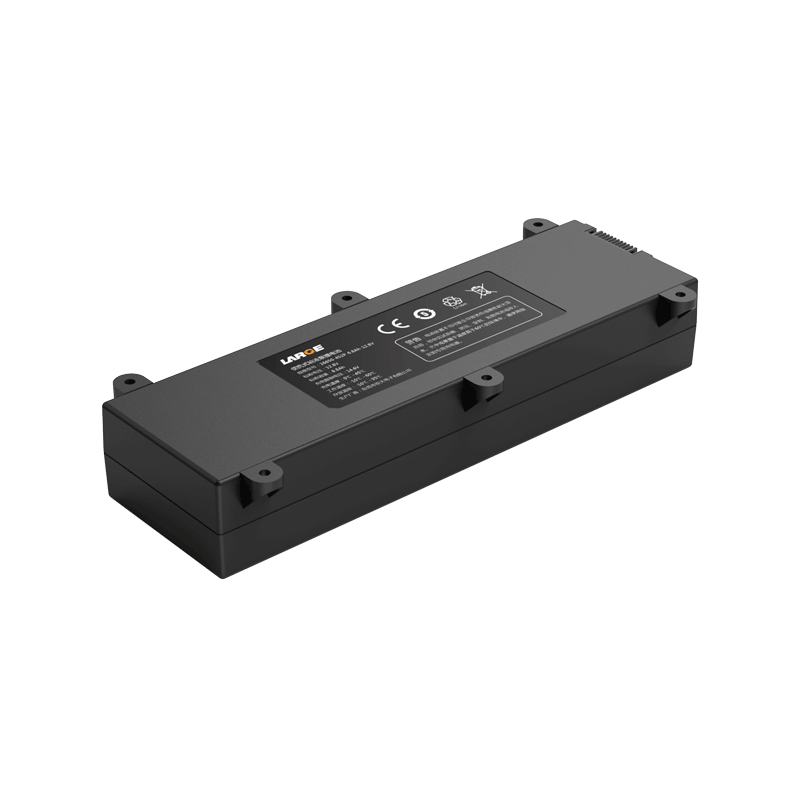

26650 6.8Ah 12.8V LiFePO4 Battery for Medical Device

26650 6.8Ah 12.8V LiFePO4 Battery for Medical Device
26650 6.8Ah 12.8V LiFePO4 Battery for Medical Device
26650 6.8Ah 12.8V LiFePO4 Battery for Medical Device
26650 6.8Ah 12.8V LiFePO4 Battery for Medical Device

Product Detail

Product number: 08DQ0038-01

Cell model: 26650-3400MAH-3.2V

Specification: 26650-4S2P-6.8AH-12.8V

Product size: 245*75*45mm

Nominal voltage: 12.8V

Nominal capacity: 6.8Ah

Charging voltage: 14.6V

Charging current: ≤ 3.3a

Discharge current: ≤4.0A

Discharge cut-off voltage: 8.0V

Internal resistance: ≤250mΩ

Battery weight: 950 GB

Charging temperature: 0 ~ 45℃

Discharge temperature: -10 ~ 60 ℃

Storage temperature: -10 to 35 ° C

Battery case: ABS+PC case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection, etc.

Application: Medical equipment workstation power supply, portable equipment, standby power supply equipment


Product Features

1.ABS+PC shell increases battery reliability and firmness.

2.Hardware output: Adopt gold-plated shrapnel output to increase conductive reliability;

3.Battery protection management: Use ST/MCU software to manage chips, transmit precise data and control temperature to minimize security risks.

4.Data communication management adopts 485 communication for precise data transmission, accurate temperature control, and real-time battery status monitoring to minimize security risks.

5.The battery pack has good safety, nice discharge performance and long cycle life.

6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.

*
*
*
