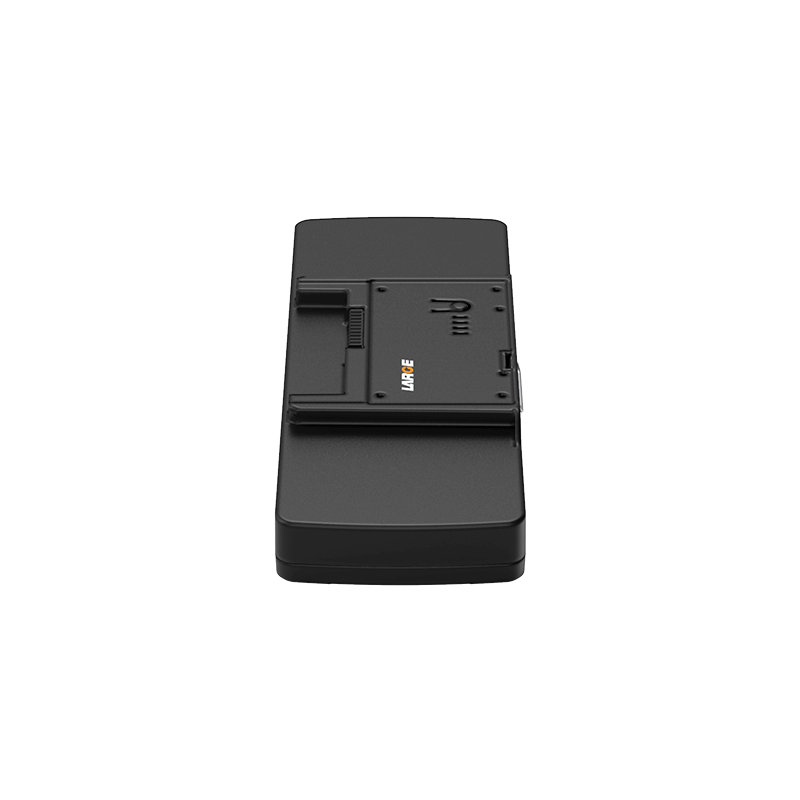

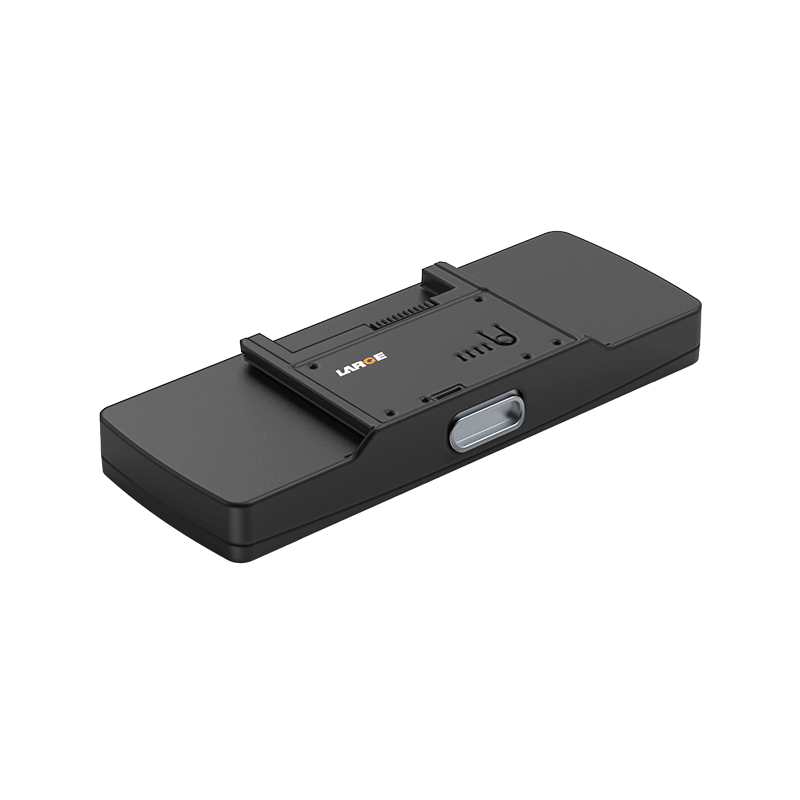

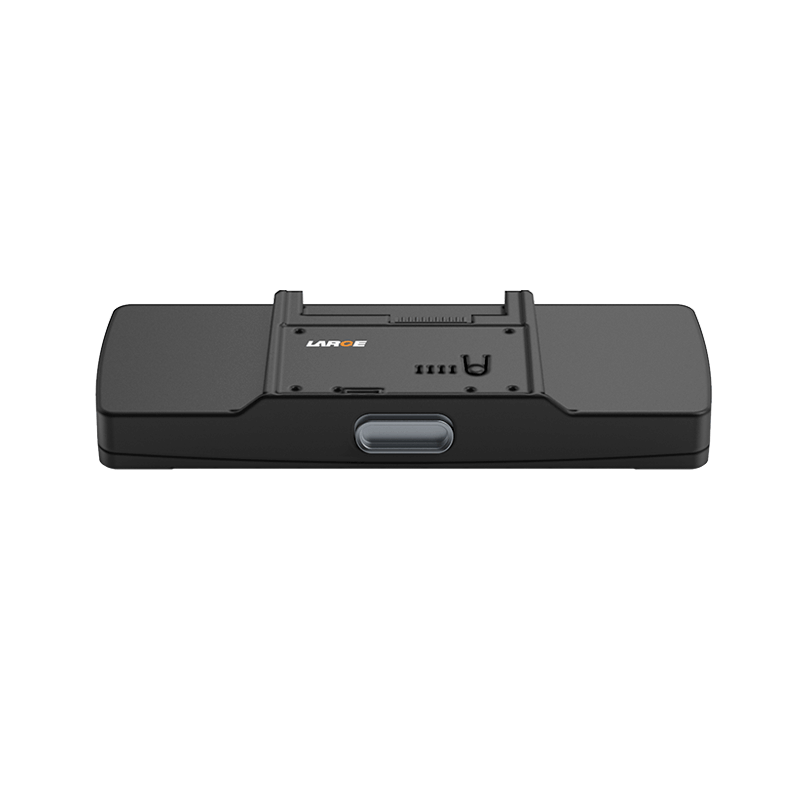

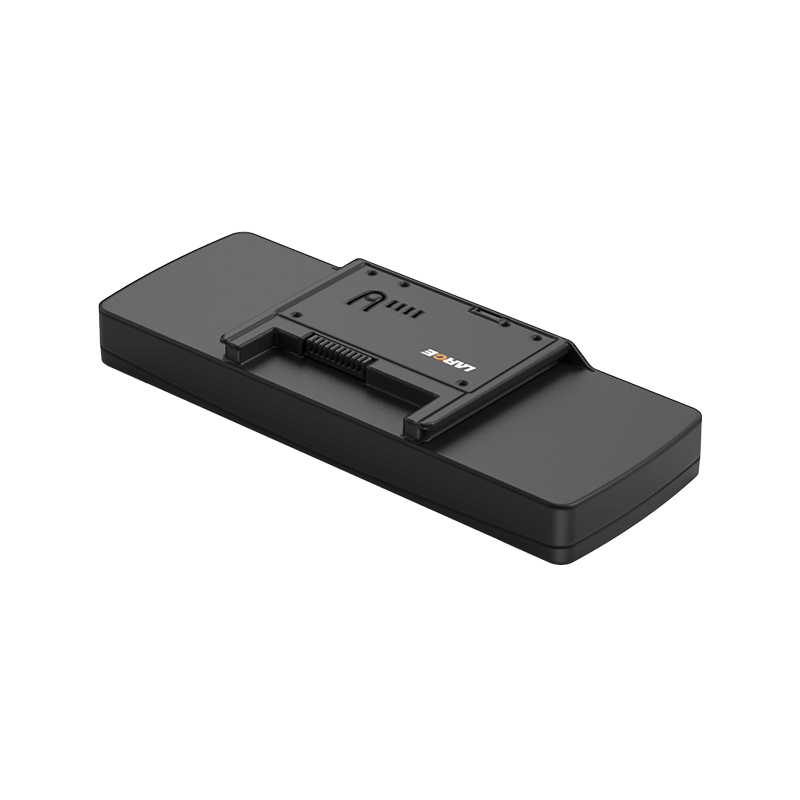

18650 14.4V 6700mAh Lithium ion Batery for Oxygenerator

18650 14.4V 6700mAh Lithium ion Batery for Oxygenerator
18650 14.4V 6700mAh Lithium ion Batery for Oxygenerator
18650 14.4V 6700mAh Lithium ion Batery for Oxygenerator
18650 14.4V 6700mAh Lithium ion Batery for Oxygenerator

Product Detail

Project number: 01WQ0026-01TA

Cell model: N18650CP/3350mAh/3.6V

Battery specification: 18650-4S2P/6700mAh/14.4V (Smart + case)

Nominal voltage: 14.4V

Nominal capacity: 6700mAh

Charging voltage: 16.8V

Charging current: ≤3.35A

Discharge current: 6.7A

Instantaneous discharge current: 15.0A

Discharge cut-off voltage: 11.2V

Finished internal resistance: ≤250mΩ

Battery weight: 550g

Product dimension: 23.5*82.57*223.51mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 23 ° C

Battery case: ABS+PC

Intelligent lithium battery protection: power management, short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Application: Oxygen generator

*
*
*
*
*
