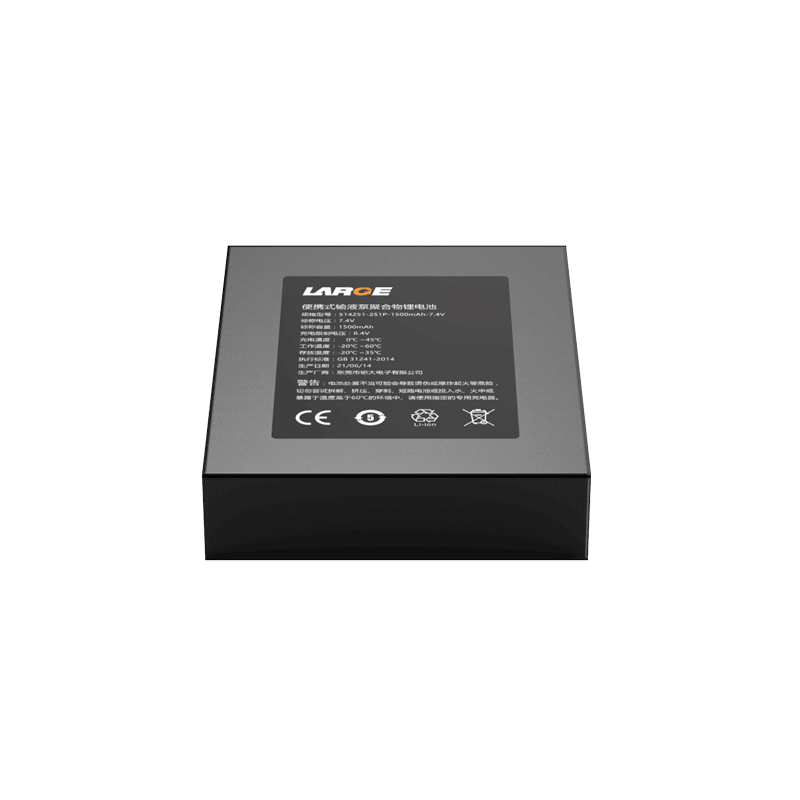

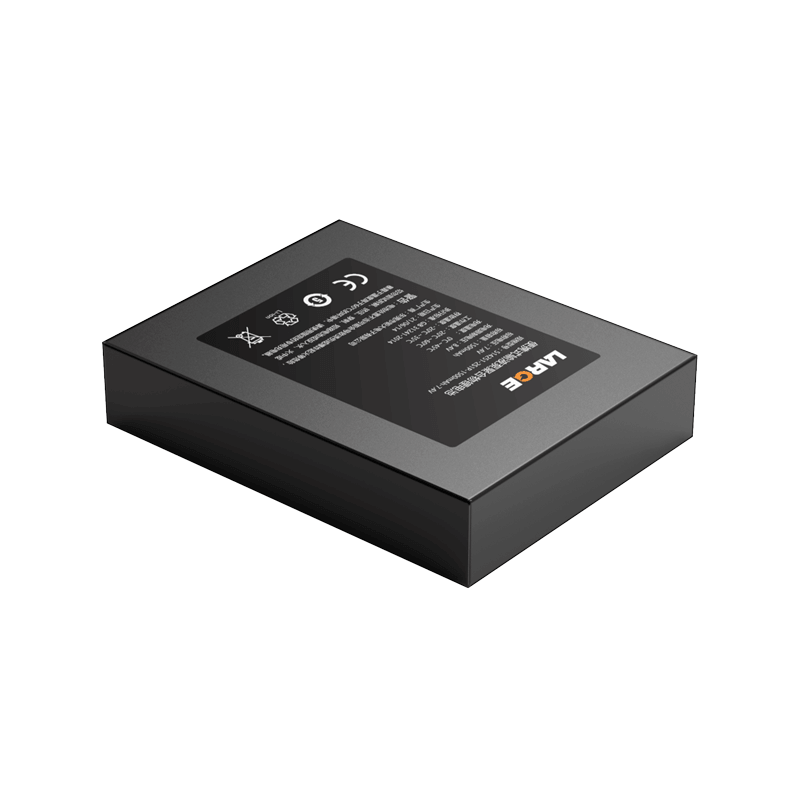

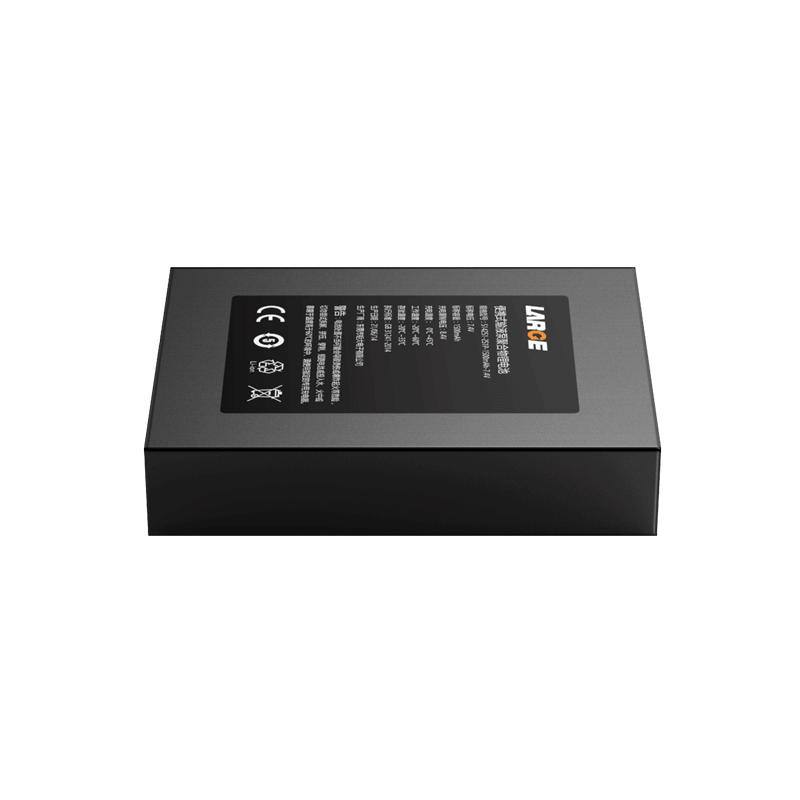

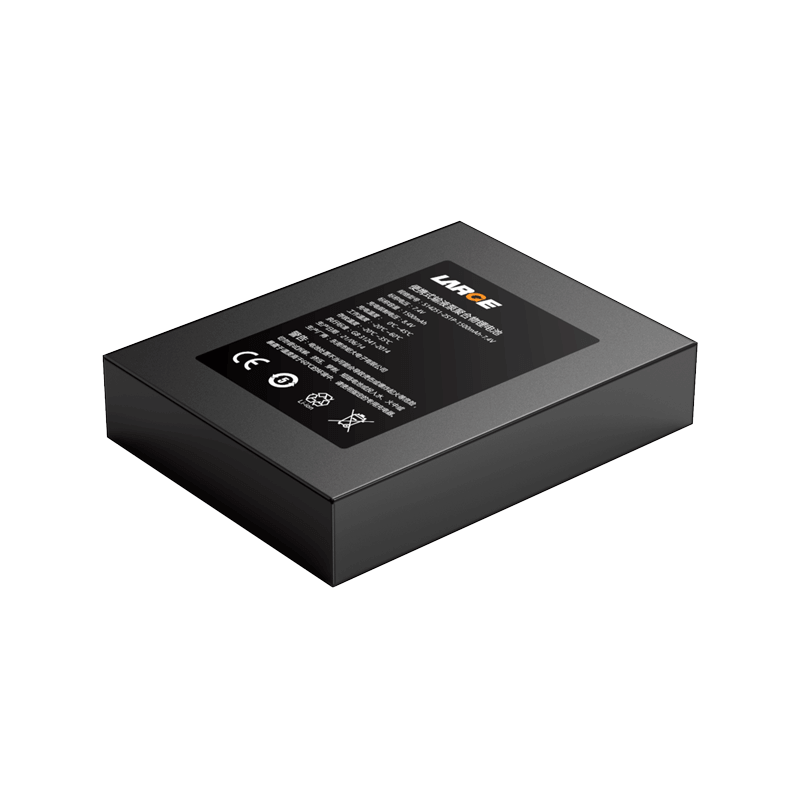

514251 7.4V 1500mAh Lithium Polymer Battery for Portable Infusion Pump

Product number: 01WQ0030-08

Cell model: 514251-1500MAH-3.7V

Battery specification: 514251-2S1P-1500MAH-7.4V

Nominal voltage: 7.4V

Nominal capacity: 1500mAh

Charging voltage: 8.4V

Charging current: ≤0.75A

Discharge current: ≤0.75A

Discharge cut-off voltage :6.0V

Product internal resistance: ≤200mΩ

Battery weight: 60G

Product dimension: 55*43*11mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 to 35 ° C

Battery case: no case, polyester package

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: portable infusion pump, portable medical equipment
