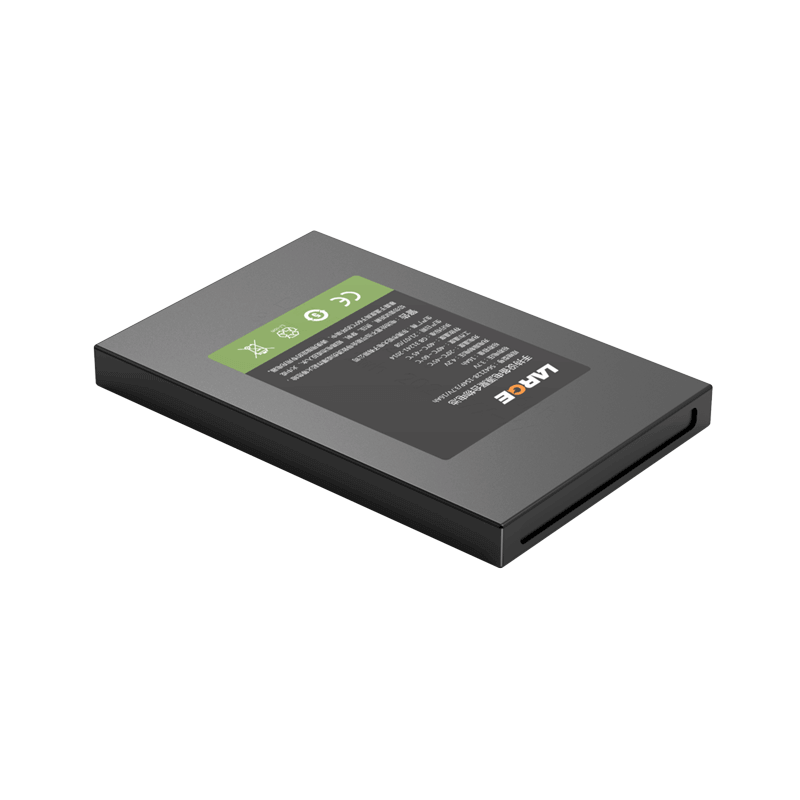

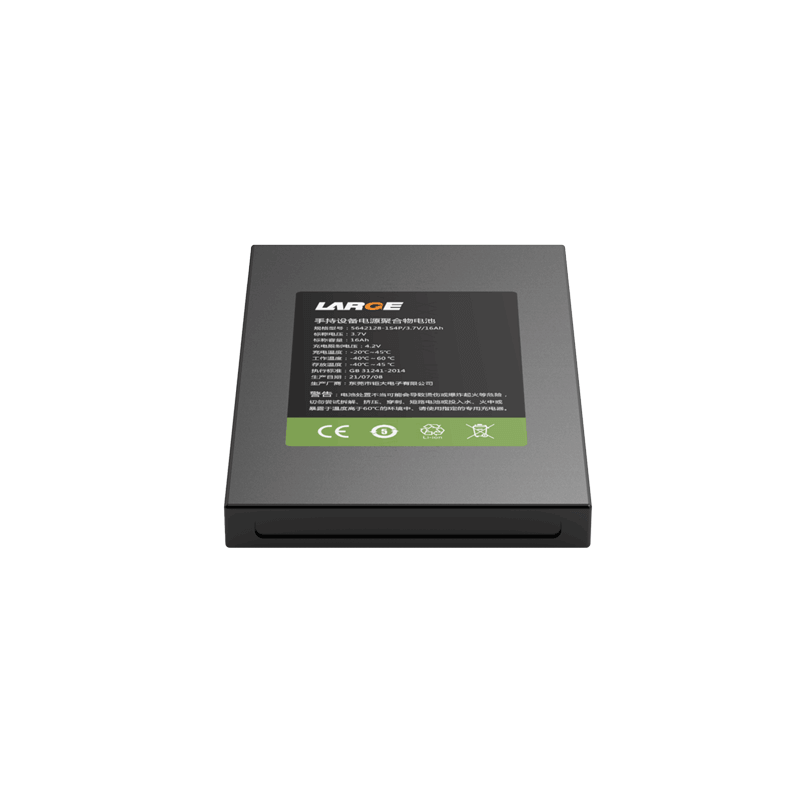

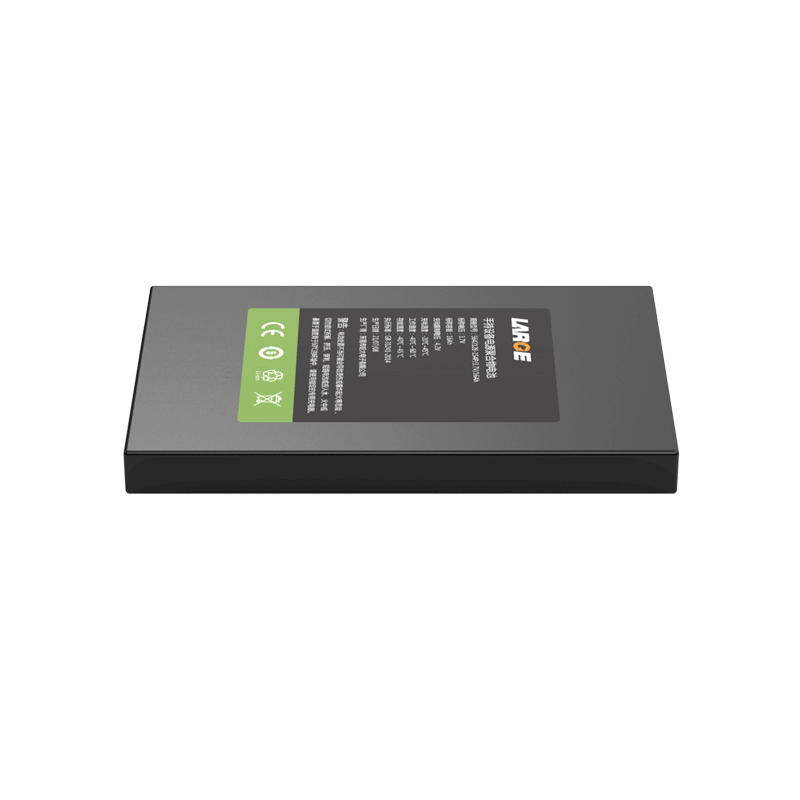

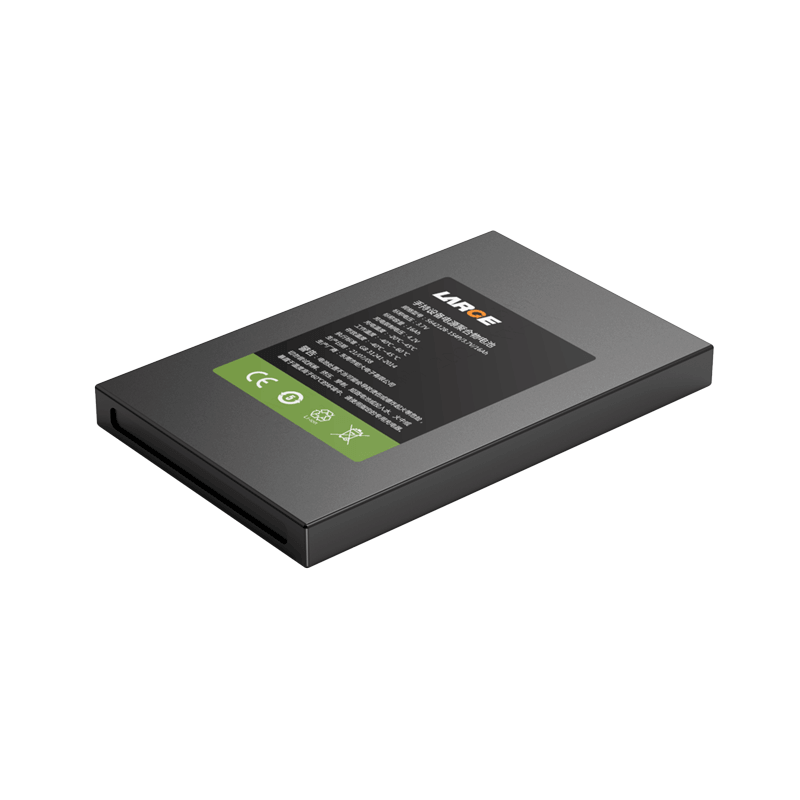

5642128 3.7V 16Ah Lithium Polymer Battery for Handheld Device

5642128 3.7V 16Ah Lithium Polymer Battery for Handheld Device
5642128 3.7V 16Ah Lithium Polymer Battery for Handheld Device
5642128 3.7V 16Ah Lithium Polymer Battery for Handheld Device
5642128 3.7V 16Ah Lithium Polymer Battery for Handheld Device

Product Detail

Project number: 37DZ086-01

Cell model: 5642128/3.7V/4050mAh

Battery specifications: 5642128-1S4P/3.7V/16Ah

Nominal voltage: 3.7V

Nominal capacity: 16Ah

Charging voltage: 4.2V

Charging current: ≤5A

Discharge current: ≤5A

Instantaneous discharge current: 6-12A

Discharge cut-off voltage: 2.5V

Finished product internal resistance: ≤150mΩ

Battery weight: 200G

Product size: 12*86* 132.5mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60℃

Storage temperature: -40 ° C to 45 ° C

Battery shell: Polymer battery plus board out of the cable

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Power supply for handheld devices

*
*
*
