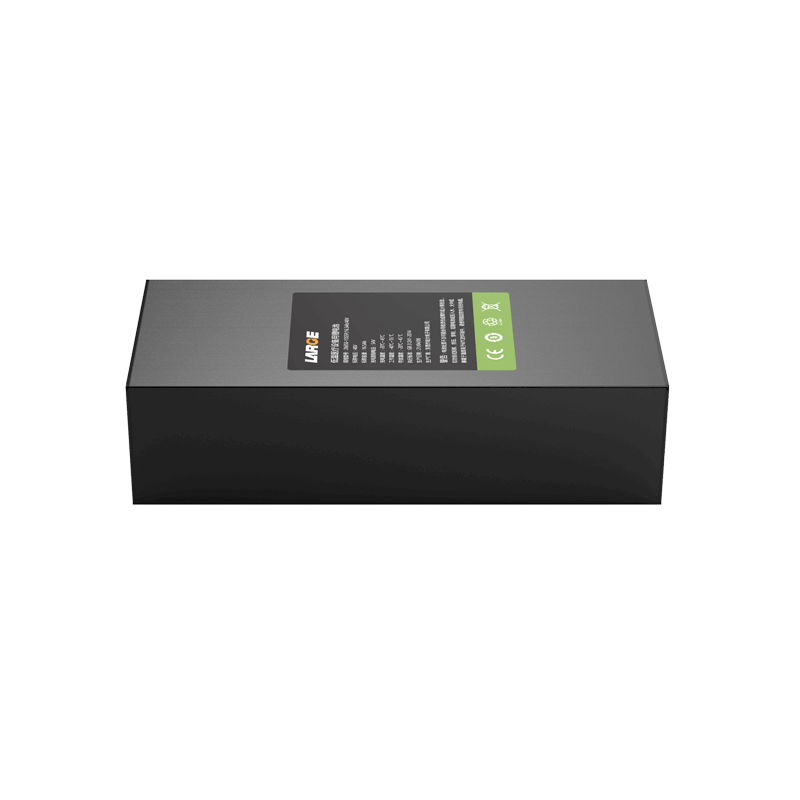

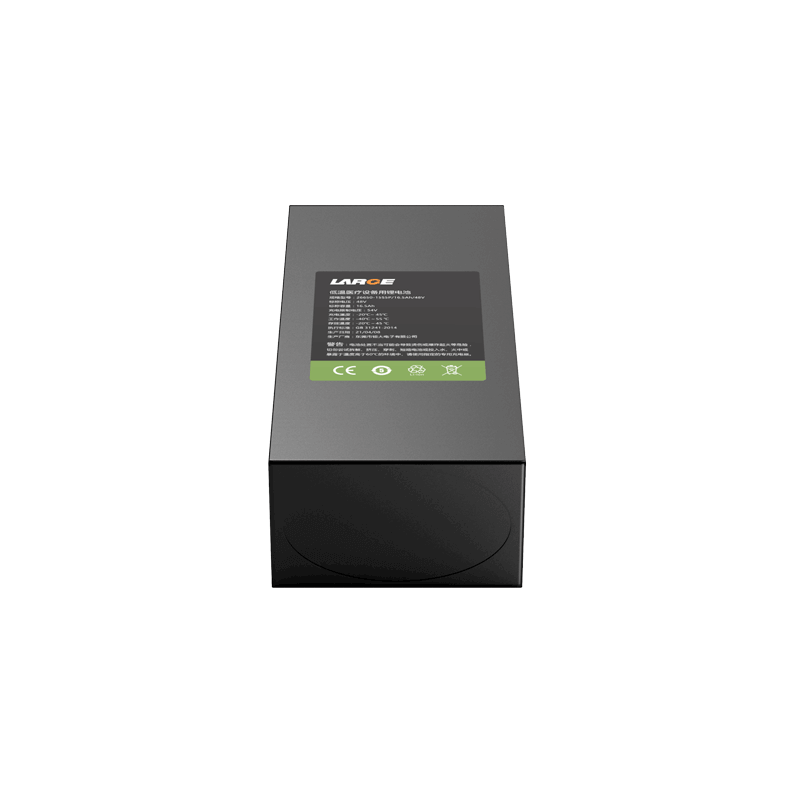

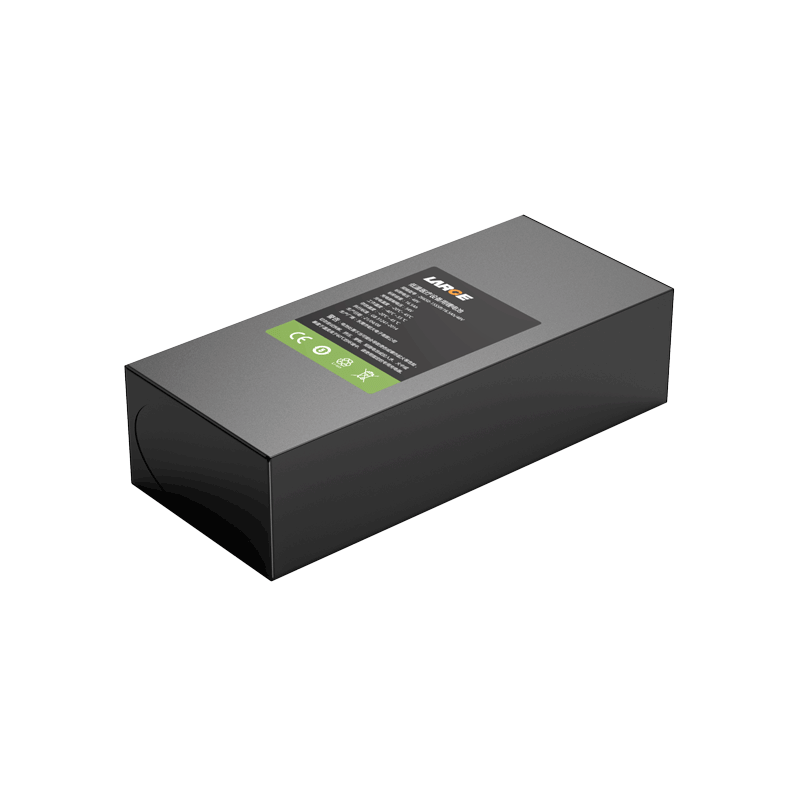

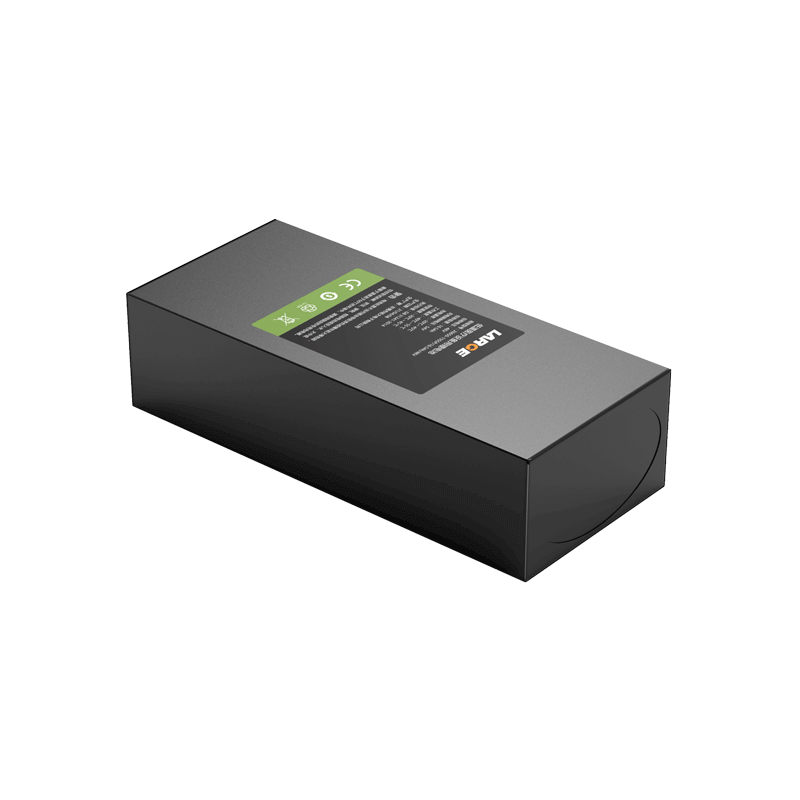

26650 48V 16.5Ah Low Temperature Battery for Medical Equipment

Product Detail

Product number: 40AQ016-01

Cell model: IFR26650G2X/3300mAh/3.2V

Battery specification: 26650-15S5P/ 16.5AH /48V

Nominal voltage: 48V

Nominal capacity: 16.5Ah

Charging voltage: 54V

Charging current: 3.3A

Discharge current: 2A

Instant discharge current: 16A

Discharge cut-off voltage: 17.5V

Finished product internal resistance: ≤300mΩ

Battery weight: 7500g

Product dimension: 346*152*90mm

Charging temperature: -20 ~ 45℃

Discharge temperature: -40 ~ +55℃

Storage temperature: -20 ~ +45℃

Battery case: PVC

Lithium battery protection: conventional protection +RS485 communication function


Product features

1.Data communication management: Use Meixin software management chip, accurate data transmission, precise temperature control to maximize the elimination of security risks;

2.The battery pack has nice safety, good performance and compact structure design;

3.It can accurately monitor the battery power.

*
*
*
