22 Years' Battery Customization

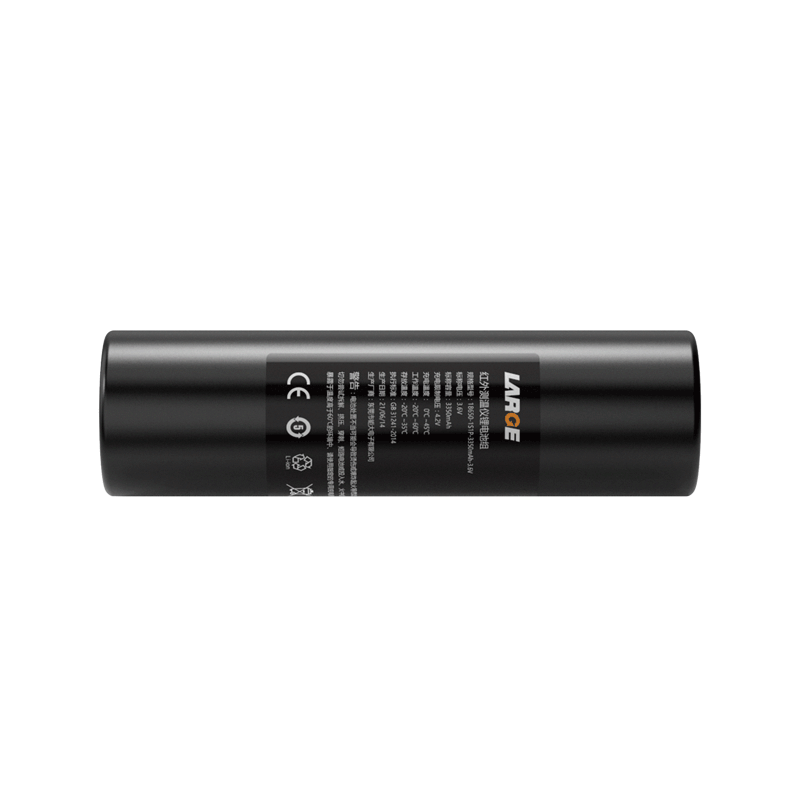

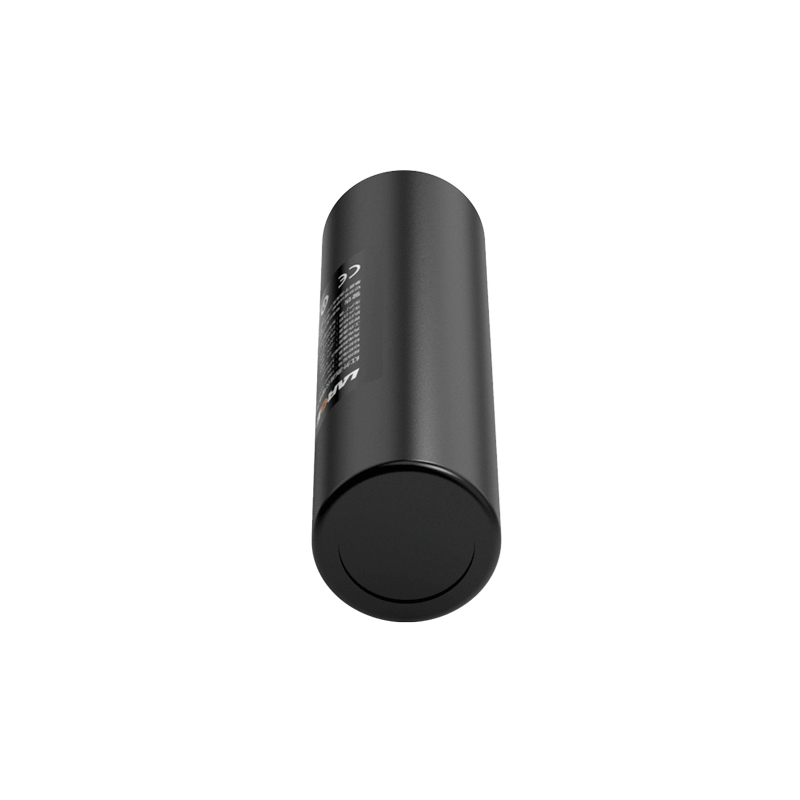

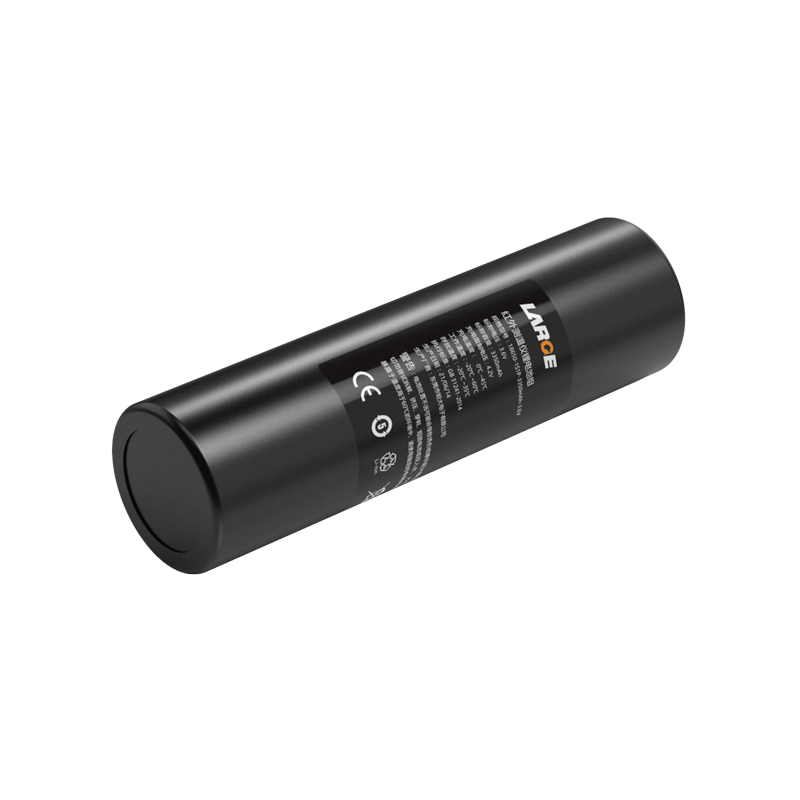

18650 3.6V 3350mAh Samsung Battery for Infrared Thermoscope

18650 3.6V 3350mAh Samsung Battery for Infrared Thermoscope
18650 3.6V 3350mAh Samsung Battery for Infrared Thermoscope
18650 3.6V 3350mAh Samsung Battery for Infrared Thermoscope

Product Detail

Product number: 01DQ0030-08

Cell model: 18650-3350MAH-3.6V

Battery specification: 18650-1S1P-3350MAH-3.6V

Product dimension: 69.5*φ19.5mm (Max)

Nominal voltage: 3.6V

Nominal capacity: 3350mAh

Charging voltage: 4.2V

Charging current: ≤2A

Discharge current: ≤4A

Discharge cut-off voltage: 2.5V

Finished product internal resistance: ≤150mΩ

Battery weight: 60G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery package: PVC heat shrinkable film

Output: A1251 connector

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Application: temperature tester, handheld terminal test equipment, medical equipment

*
*
*
