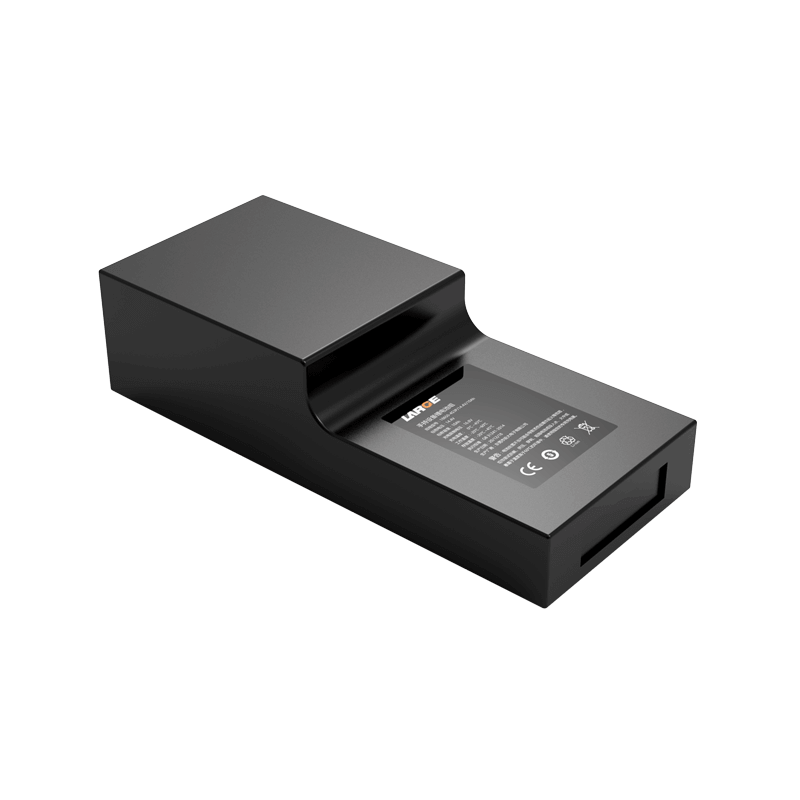

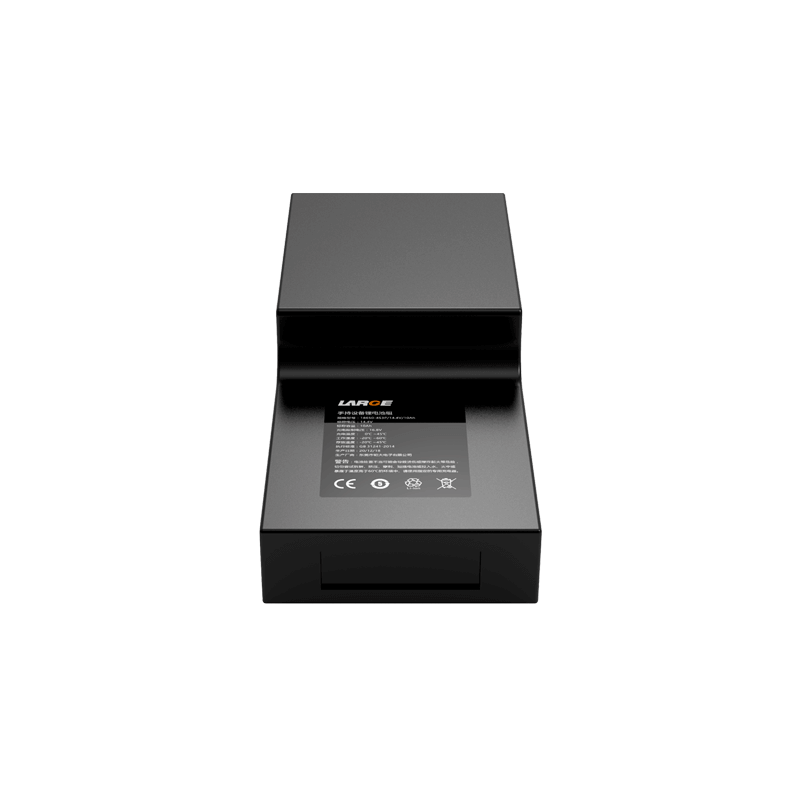

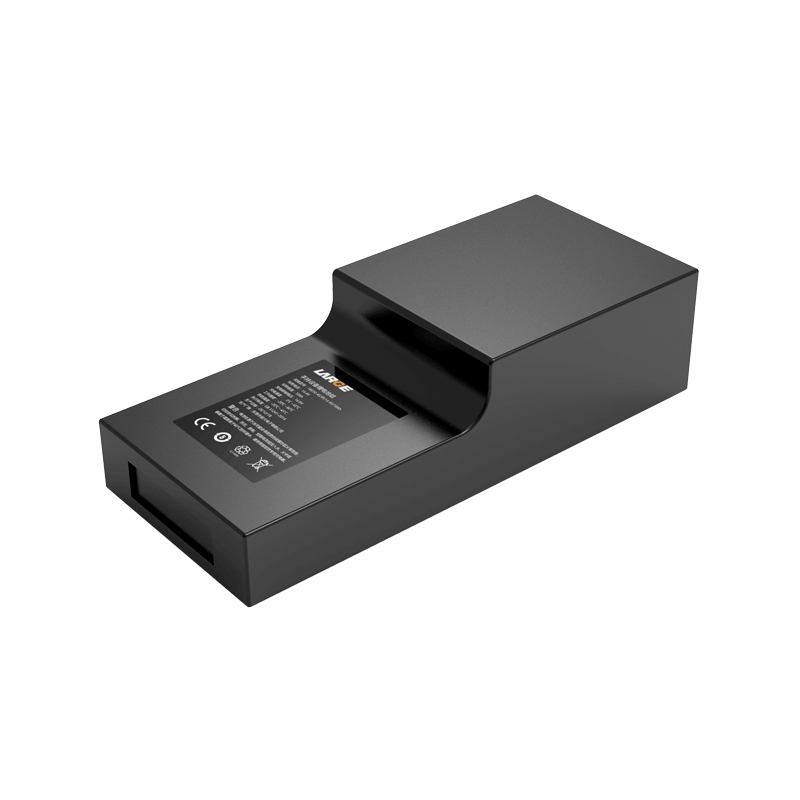

Custom Lithium ion Battery Pack

18650 14.4V 10Ah Samsung Battery for Handheld Device

Product Detail

Product number: 37DZ082-01

Cell model:18650/3.6V/3.35Ah

Battery specification: 18650-4S3P/14.4V/10Ah

Nominal voltage:14.4V

Nominal capacity:10Ah

Charging voltage: 16.8V

Charging current: ≤5A

Discharging current: 5A

Instant discharge current:8.25A

End-off voltage:8.1V

Internal resistance: ≤200mΩ

Battery weight: 650g

Product dimension:45*72*165

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~45℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharging protection, over-discharging protection,charge over current protection,discharge over current protection,temperature protection

Application:handheld device

*
*
*
