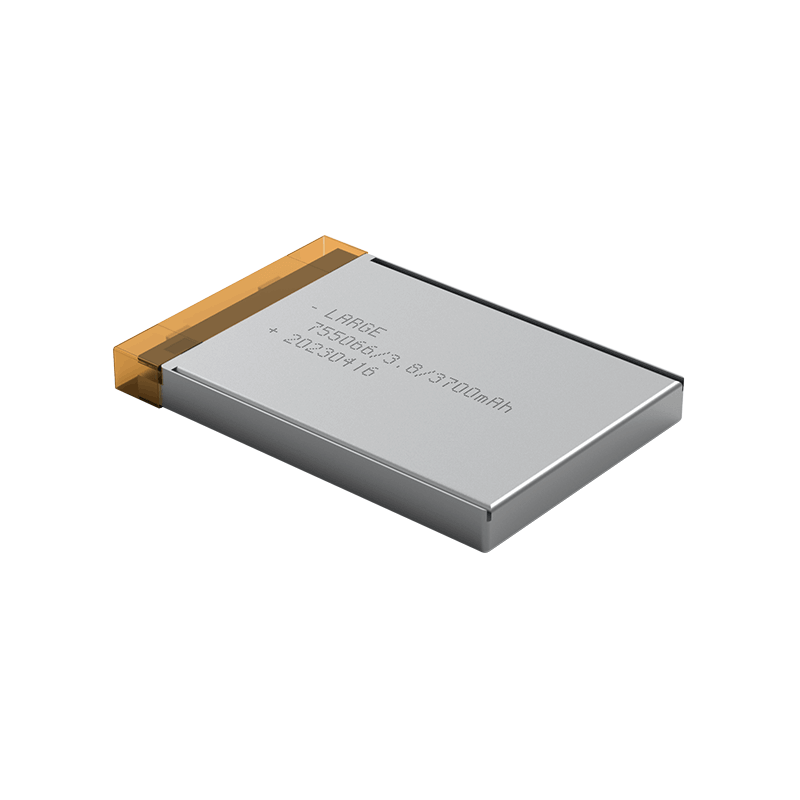

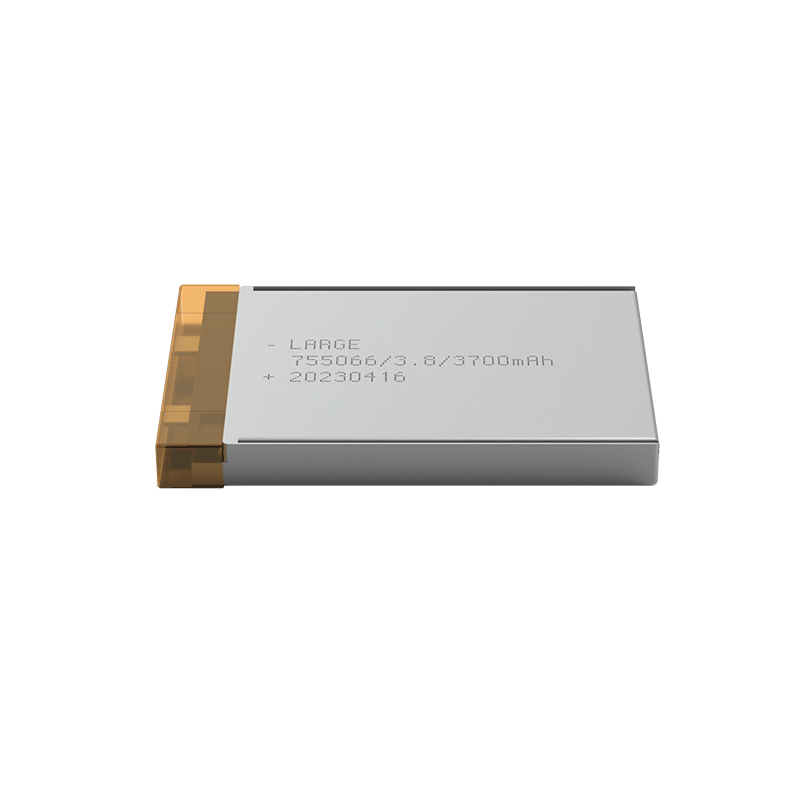

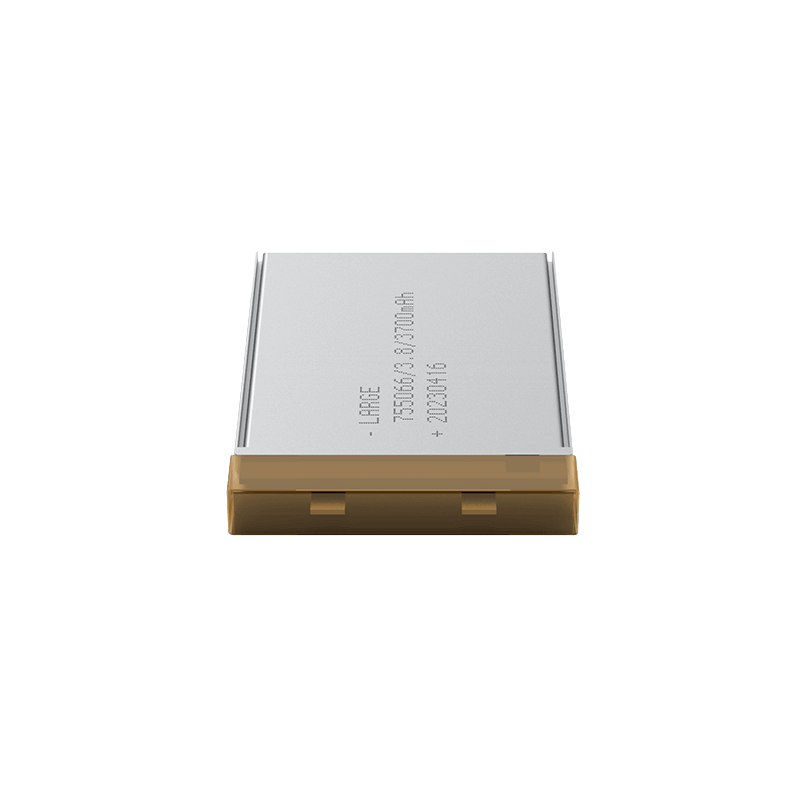

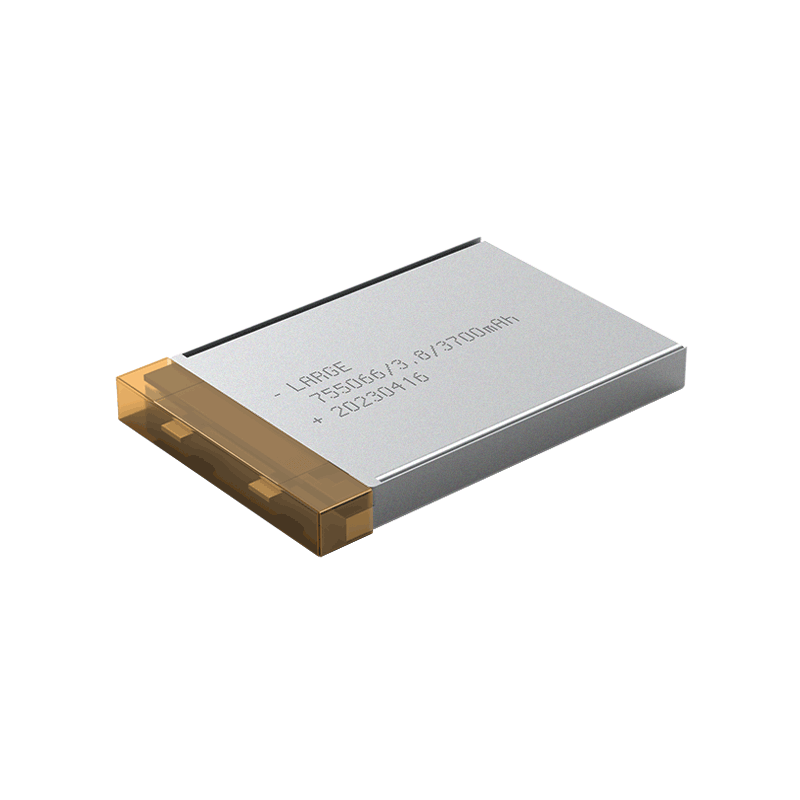

755066 3.8V 3700mAh Infrared Thermal Imaging Equipment Lithium Polymer Battery Pack

Product number: 01DQ0023-66

Battery model: 755066-3700mAh-3.8V

Battery specification: 755066-1S1P-3700mAh-3.8V

Product size: 68.5*50.5*8.5mm (Max)

Nominal voltage: 3.8V

Nominal capacity: 3700mAh

Finished internal resistance: ≤180mΩ

Charging voltage: 4.35V

Charging current: ≤2.4A

Discharge current: ≤2.4A

Discharge cut-off voltage: 3.0V

Battery weight: 60g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: polymer simple package

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Applications: infrared equipment, temperature measuring equipment, portable testing equipment

Product Features

1.Polymer simple package is simple and reliable,and easy to install;

2.The battery pack adopts special FPC software output, special nickel plate connection with good shock and impact resistance;

3.Special connector output mode can increase the electrical reliability;

4.Battery protection management: Use special lithium battery protection chip, with high stability, high precision monitoring, accurate control, temperature protection and other functions, to eliminate safety hazards;

5.The battery pack has nice safety, good discharge performance and long cycle life;

6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
