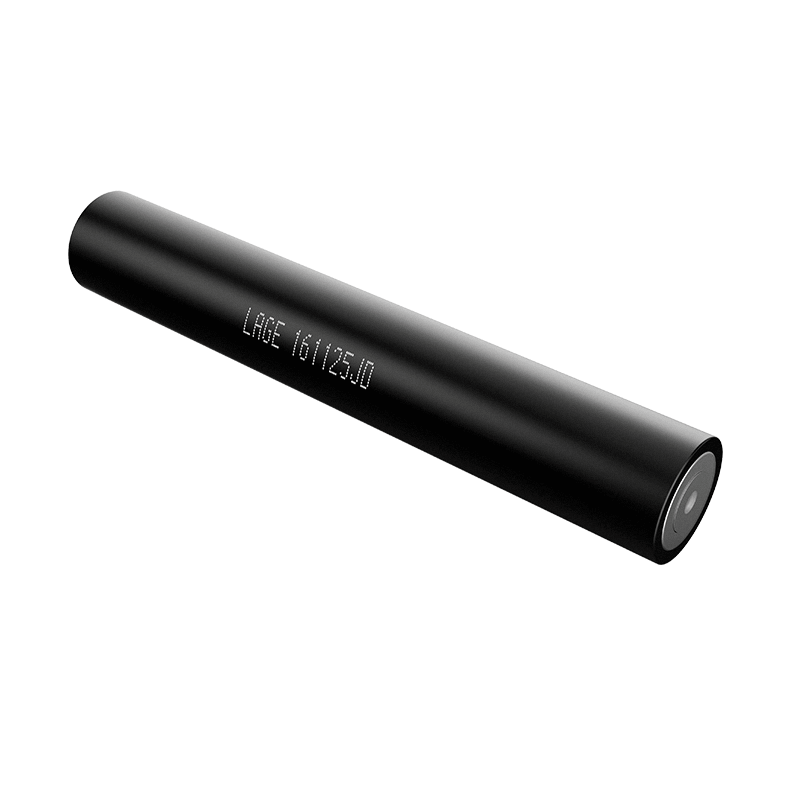

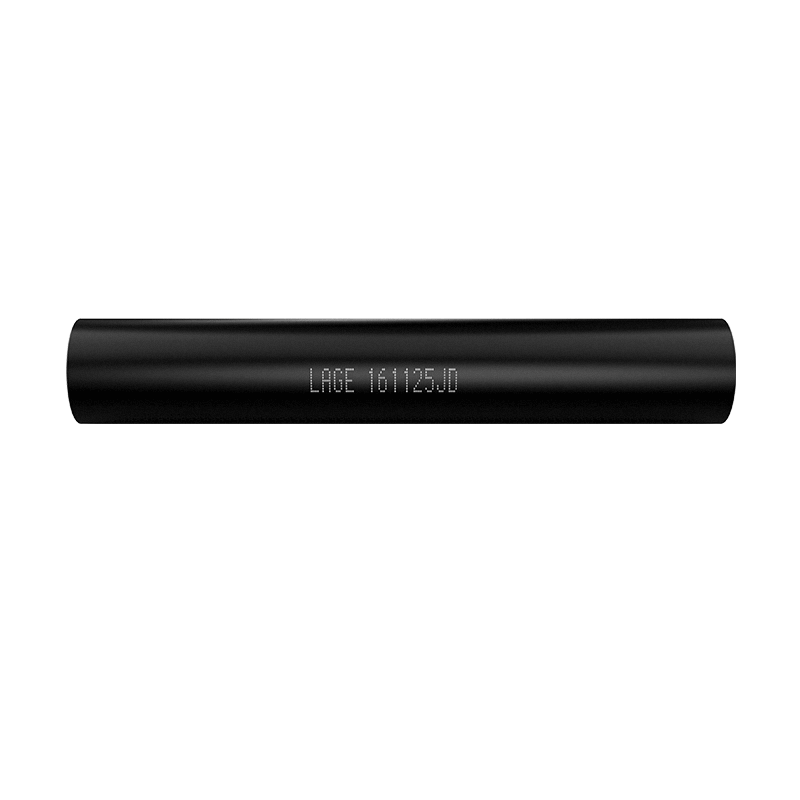

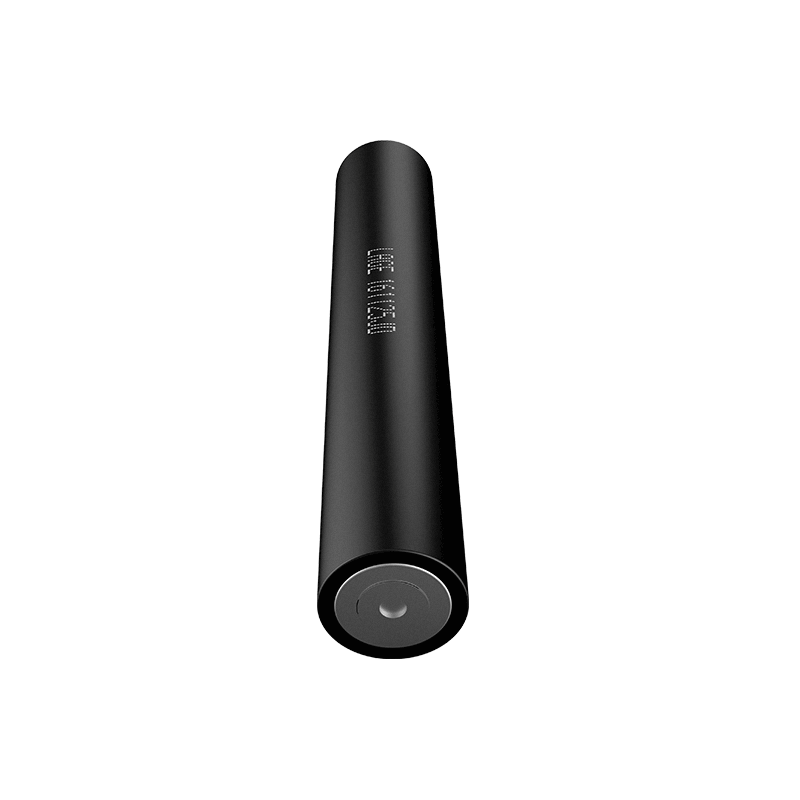

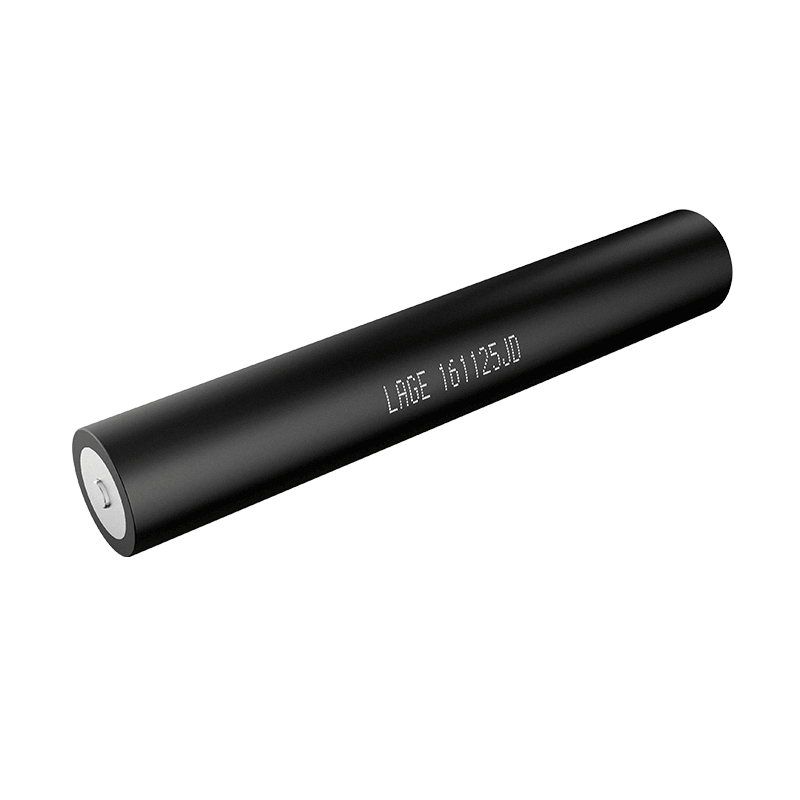

18650 7.4V 2200mAh Lithium Ion Battery for Decorative Lighting

Product Detail

Product number: 04BQ118-05

Cell model:18650/2200mAh/3.7V

Battery specification: 18650/2S1P/2200mAh/7.4V(plastic housing)

Nominal voltage:7.4V

Nominal capacity:2200mAh

Charging voltage: 8.4V

Charging current: ≤1000mA

Discharging current: ≤2200mA

Instant discharging current: 3.0A for 1S

End-off voltage: 6.0V

Internal resistance: ≤300mΩ

Battery weight: about 109g

Product dimension: φ22.4*136.5 mm

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: plastic housing

Lithium ion battery protection: overcharge protection, over-discharge protection, discharge overcurrent protection, discharge short circuit protection, etc.

Application field: decorative lighting

*
*
*
