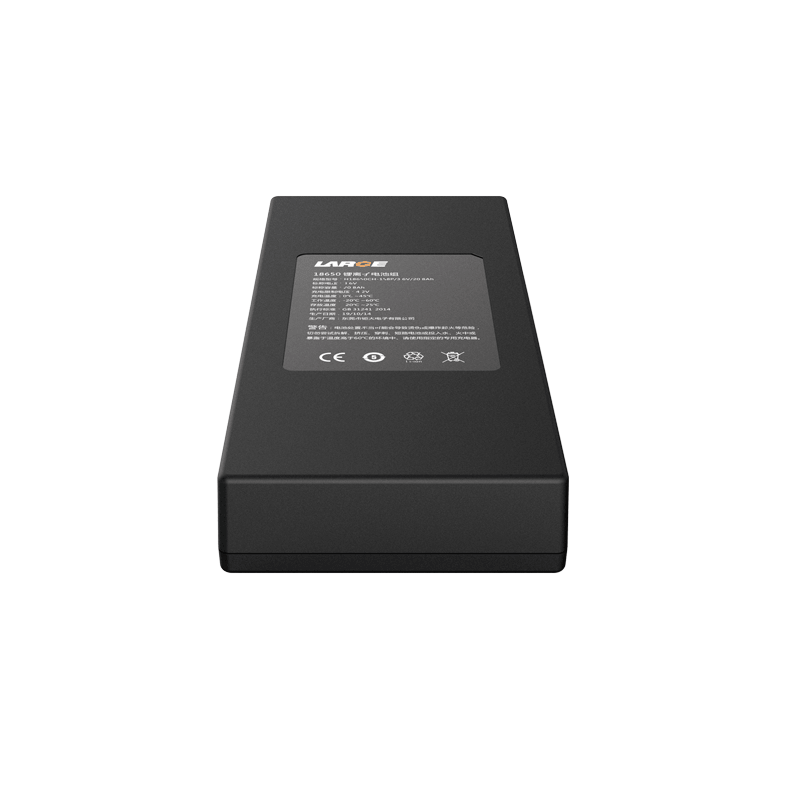

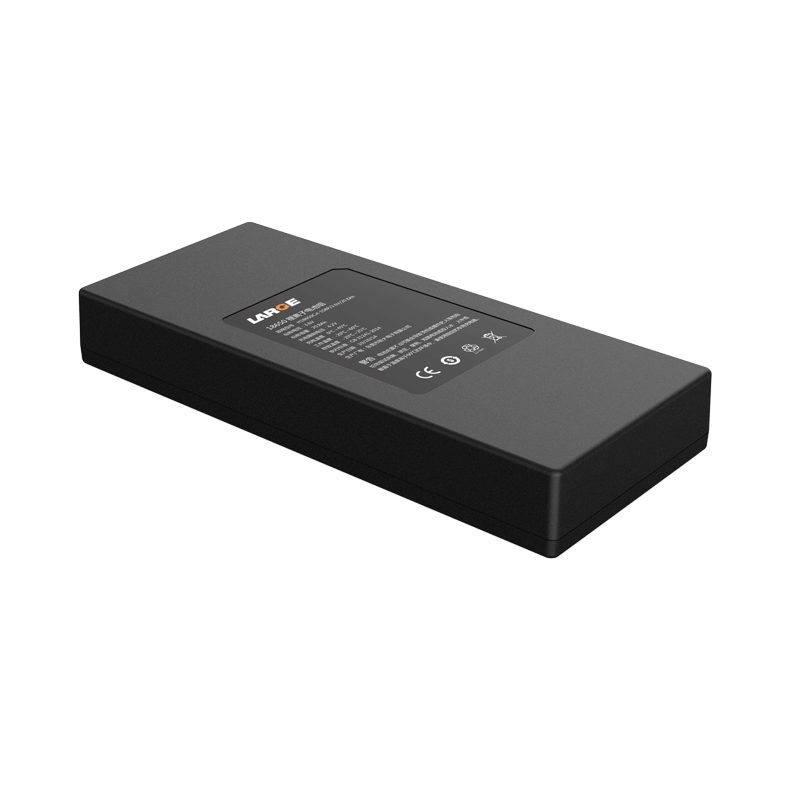

18650 3.2V 12.8Ah LiFePO4 Battery Pack
Product Number:
37AQ216-02
Nominal voltage:
3.2V
Nominal capacity:
12.8Ah
Battery Configuration:
LR1865EH-1S8P
Dimension:
164*71.6*23.1(±0.2mm)
Application:
Vehicle Detection Equipment
UL94-V0 housing, multi-protection system, low self-discharge
Product Overview
This battery is designed for vehicle detection equipment used in road inspection and outdoor monitoring scenarios. It provides stable output and long endurance, ensuring reliable continuous operation in complex environments.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 37AQ216-02 |
| Cell Model | LR1865EH/1600mAh/3.2V |
| Battery Configuration | LR1865EH-1S8P |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 12.8Ah |
| Rated Energy | 40.96Wh |
| Charging Voltage | 3.6V |
| Discharge Cut-off Voltage | 2.1V |
| Standard Charging Current | ≤2A |
| Standard Discharge Current | 2A |
| Max Continuous Discharge Current | 2A |
| Internal Resistance | ≤120mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0～45℃ |
| Discharge Temperature | -20～60℃ |
| Storage Temperature | -20～25℃ |
| Dimensions | 16471.623.1mm (±0.2mm) |
| Weight | 400g |
| Battery Case | ABS+PC (UL94-V0) |
| Protection System | Short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, over temperature protection |
Application Background
This battery solution is designed for vehicle detection equipment, suitable for road inspection, onboard diagnostics, and outdoor mobile monitoring scenarios.
The device requires stable long-term operation in complex environments, with continuous power support during data acquisition and transmission, demanding high safety and endurance.
Project Challenges
Device requires 10–12 hours continuous operation
Wide temperature operation from -20°C to 60°C
Low self-discharge and stable cycling for long-term use
Compact structure required for portable equipment
Customized Battery Solution
LiFePO4 system with 3.2V 12.8Ah for enhanced safety and long cycle life
UL94 V-0 flame-retardant ABS+PC housing for improved protection
Multi-protection system: overcharge, over-discharge, overcurrent, short circuit and temperature protection
Low self-discharge design for improved standby and operational stability
Application Results
Supports 10–12 hours continuous operation
Stable performance across wide temperature environments
Reduced maintenance frequency and improved operational efficiency
Stable cycling performance extends overall device lifespan
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
