Custom Lithium ion Battery Pack

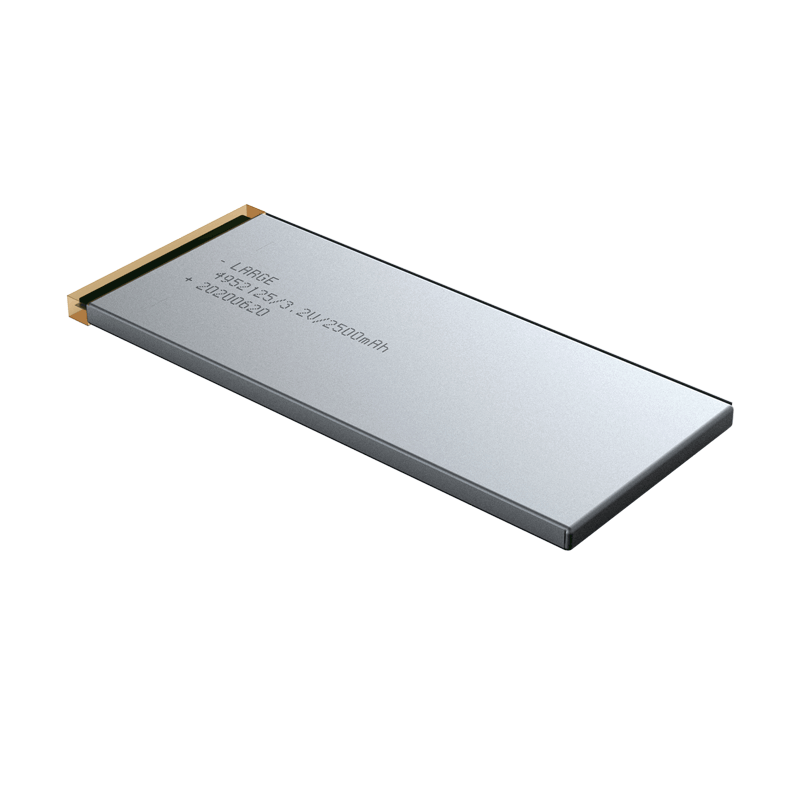

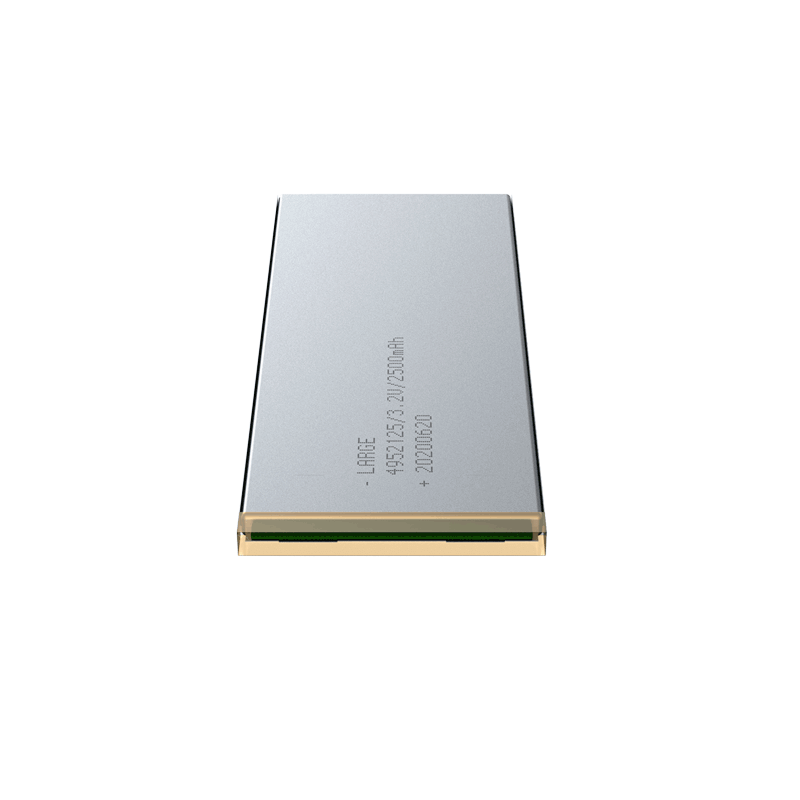

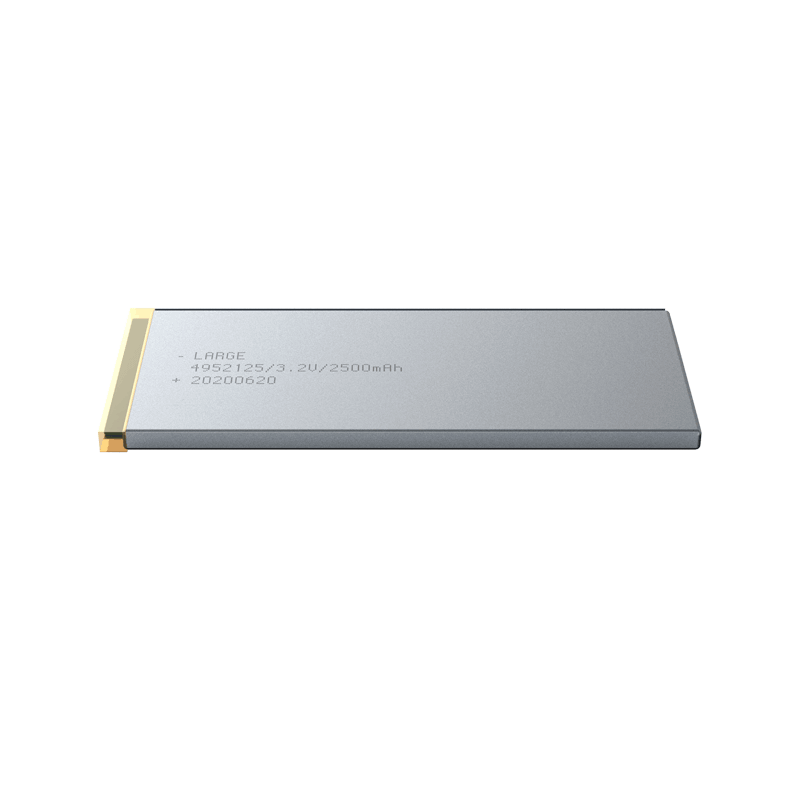

3.2V 2500mAh LiFePO4 Battery for Entrance Guard Backup Power Supply

Product Detail

Product number: 37DZ076-01

Cell model:4952125/3.2V/2500mAh

Battery specification: 4952125-1S1P/3.2V/2500mAh

Nominal voltage:3.2V

Nominal capacity:2500mAh

Charging voltage: 3.65V

Charging current: ≤2.5A

Discharging current: 3A

Instant discharging current: 5-12A

End-off voltage: 2.0V

Internal resistance: ≤110mΩ

Battery weight: 57.5g

Product dimension: 5.5*54*132 mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~45℃

Battery case: lithium polymer battery with protective board connector

Battery protection: short circuit, overcharge, over-discharge, overcurrent protection, etc.

Application field: entrance guard power supply

Product features

1. Small self-discharge

2. The battery pack has good security and long cycle life.

3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
