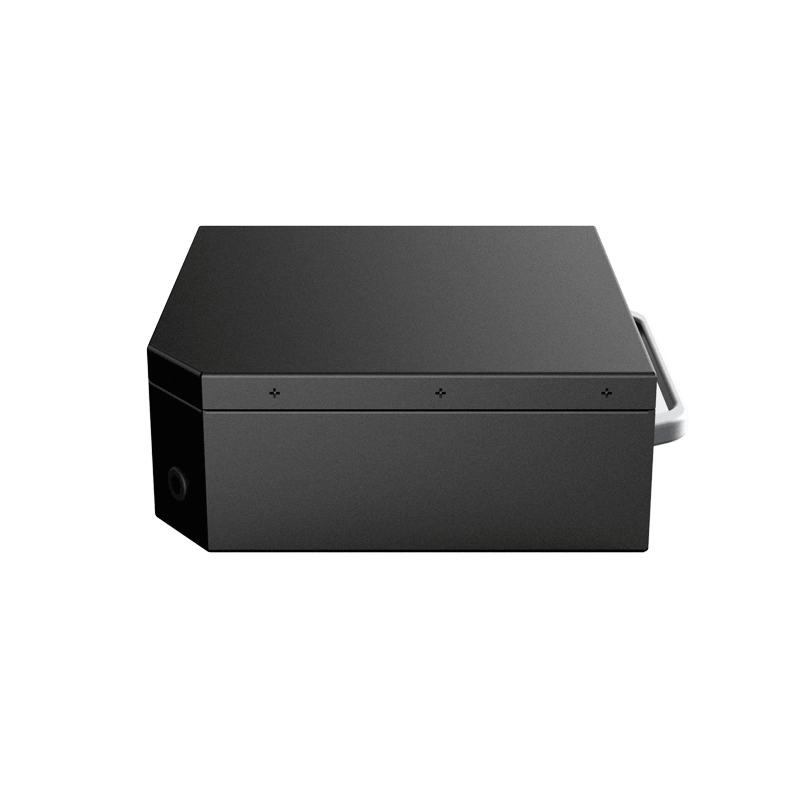

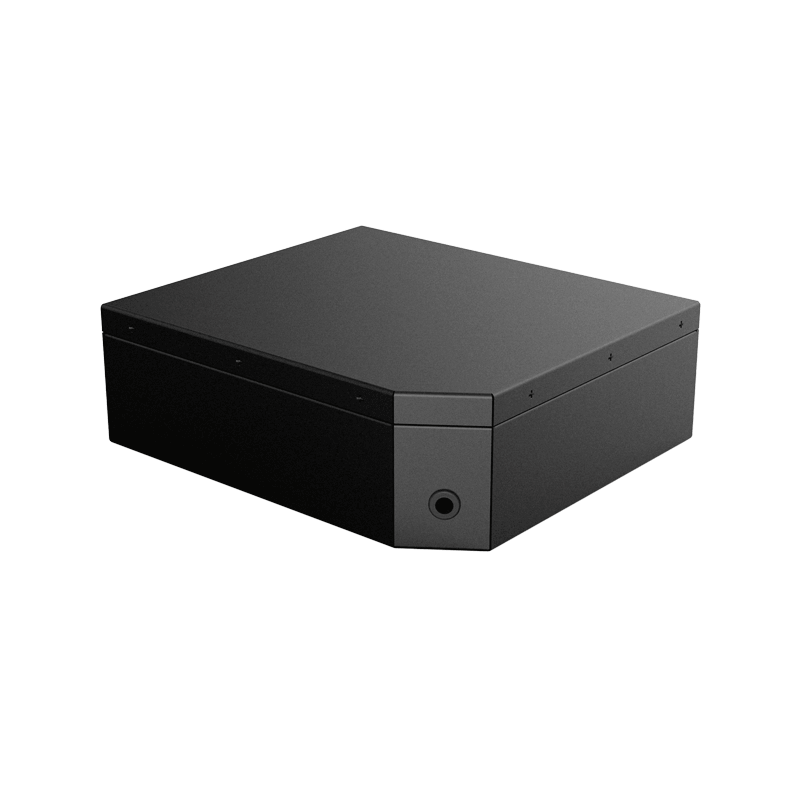

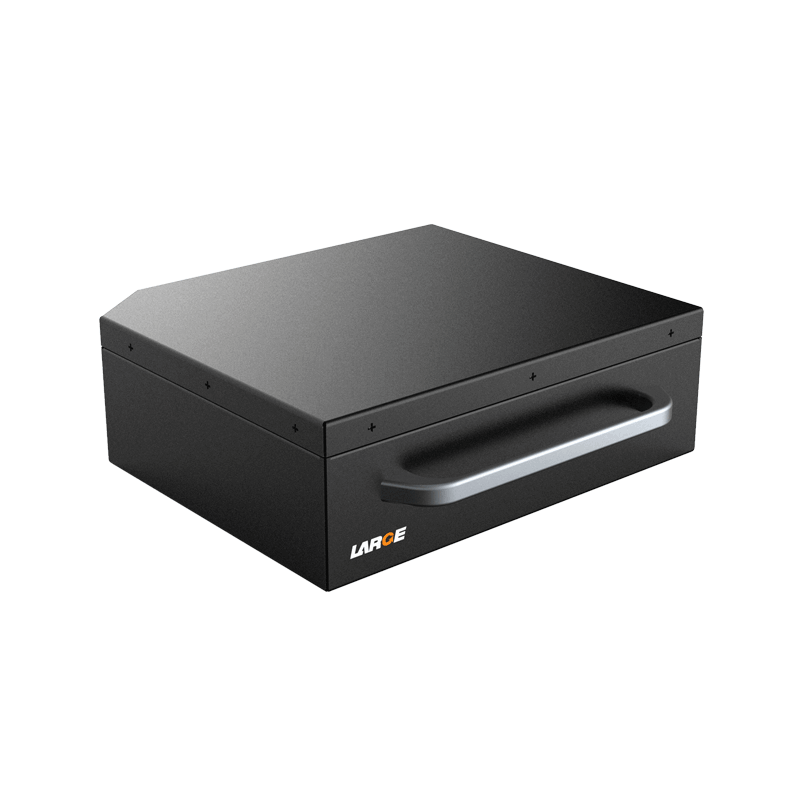

26650 19.2V 13.2Ah LiFePO4 Battery for Medical Device

Product Detail

Product number: 30AQ188-02

Cell model:26650-33A/3.2V/3.3Ah

Battery specification: 26650-19.2V/13.2Ah

Nominal voltage:19.2V

Nominal capacity:13.2Ah

Charging voltage: 21.9V

Charging current: ≤5A

Discharging current: 5A

Instant discharging current: 10A,3~4S

End-off voltage: 15V

Internal resistance: ≤150mΩ

Battery weight: 2.5kg

Product dimension: 228×197.5×75(mm)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20℃~+23℃(≤12 months)

Battery case: metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection and 485 communication.

Application field: medical device


Product features

1. Low self-discharge.

2. The battery pack has good security and long cycling life.

3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

4. Ultra-thin battery design, battery anti - reverse- connection function.

5. It can accurately detect battery information with communication.

*
*
*
