Custom Lithium ion Battery Pack

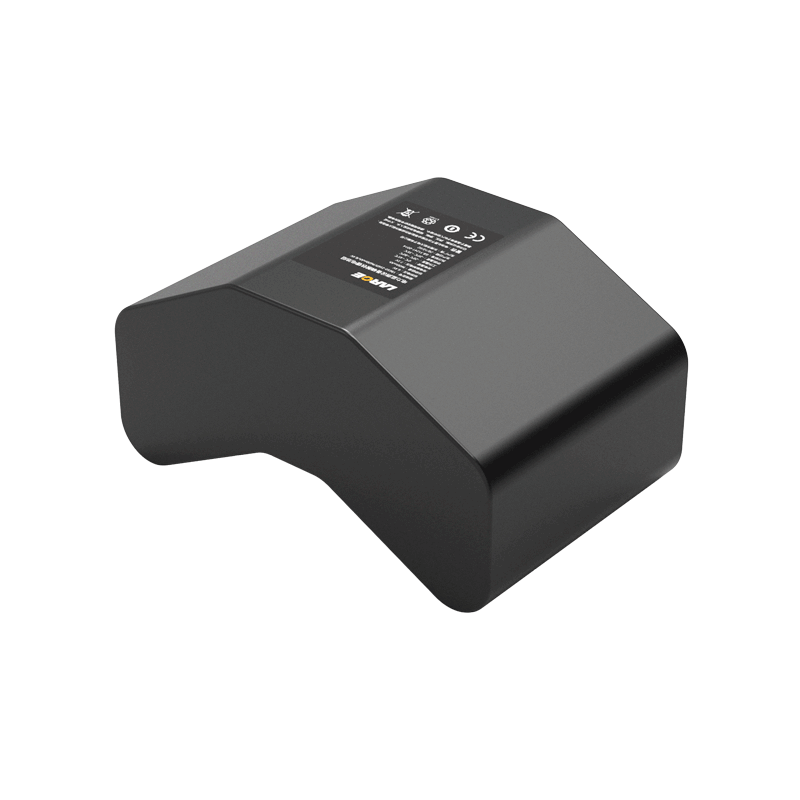

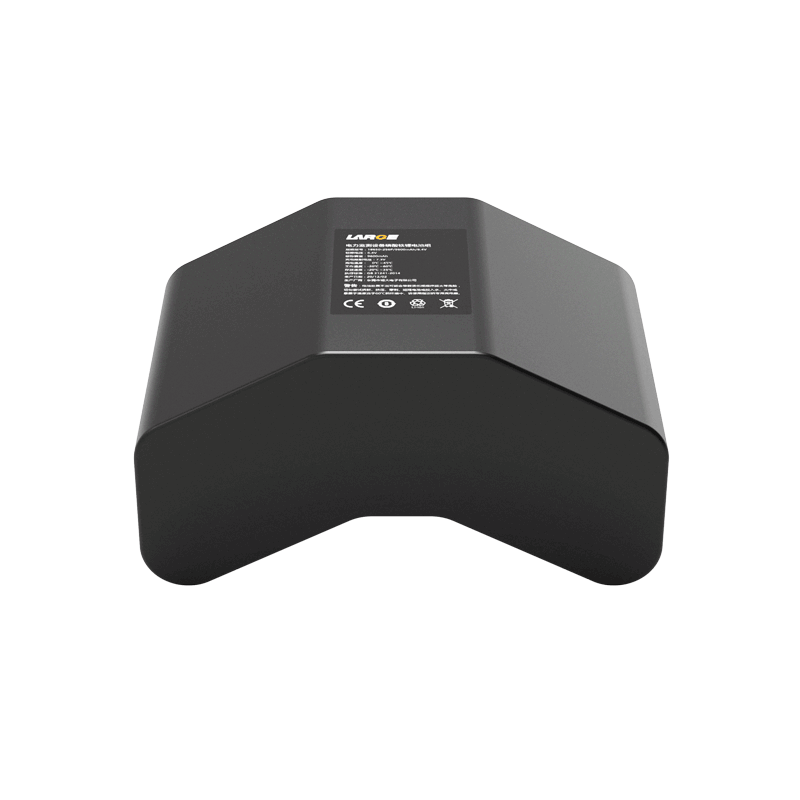

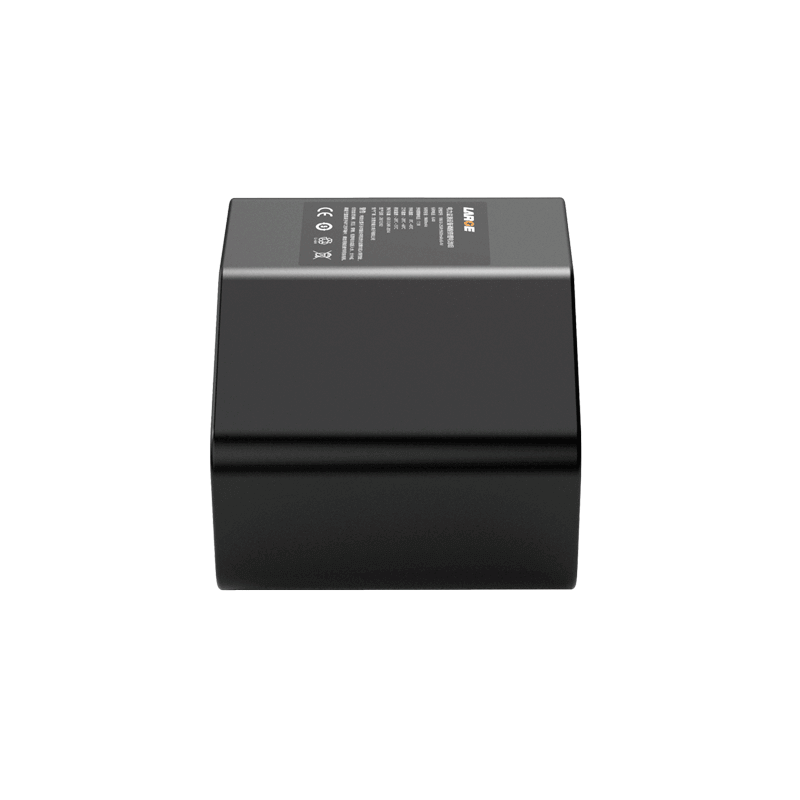

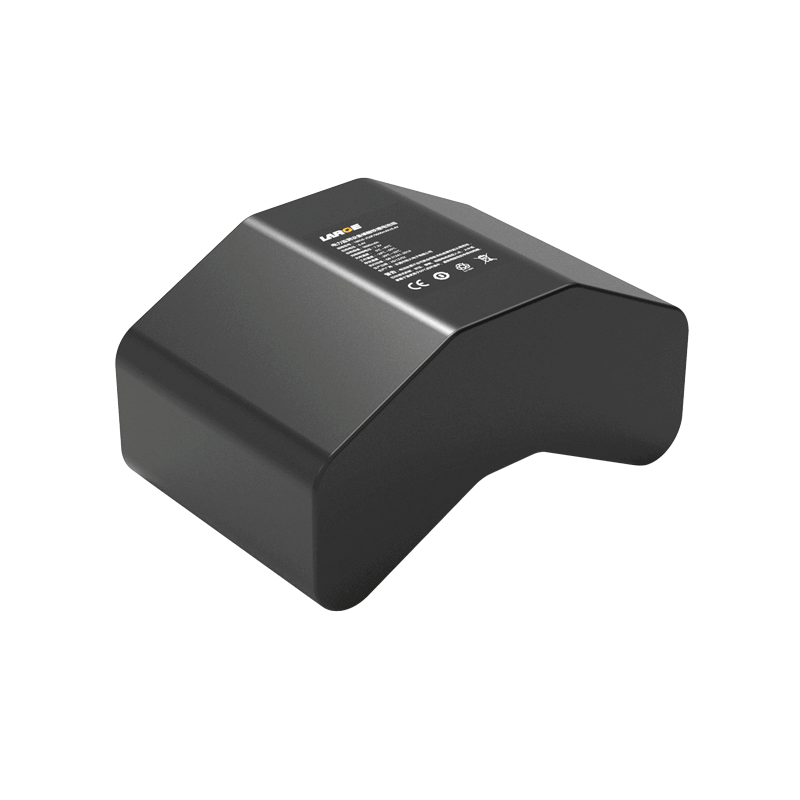

18650 6.4V 9600mAh LiFePO4 Battery for Power Monitor

Product Detail

Product Number: 34AQ018-08

Cell model: 18650-1600MAa-3.2V

Battery specification: 18650-2S6P/9600mAh/6.4V

Product dimension: 103×70×58mm (Max)

Nominal voltage: 6.4V

Nominal capacity: 9600mAh

Charging voltage: 7.3V

Charging current: ≤3A

Discharge current: ≤3A

Discharge cut-off voltage: 5.0V

Finished product internal resistance: 300 mΩ or less

Battery weight: 610G

Charging temperature: 0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35℃

Battery case: blue PVC thermal shrinkable film package

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Application: Electrical testing equipment, testing instruments

Product features

1.Blue PVC heat shrinkable film package is simple, reliable and easy to install

2.Connector plug terminal: The JST plug output mode increases conductive reliability;

3.Battery management: Adopt imported protection chip with good stability, high precision monitoring, precision control, ESD protection and temperature protection function so as to eliminate safety hazard to the greatest extent.

4.The battery has good safety, nice discharge performance and long cycle life.

5.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
