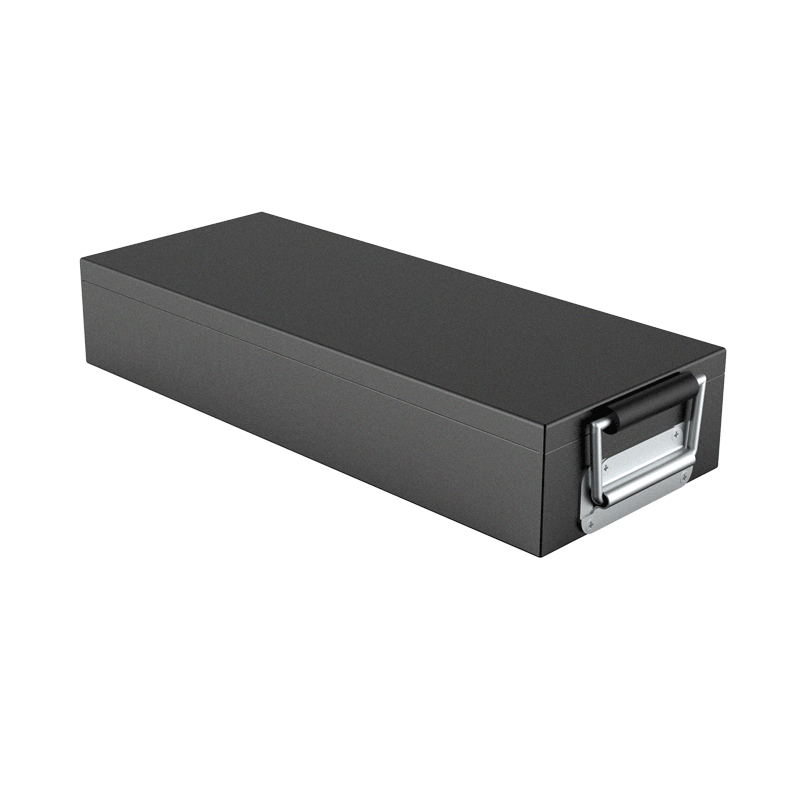

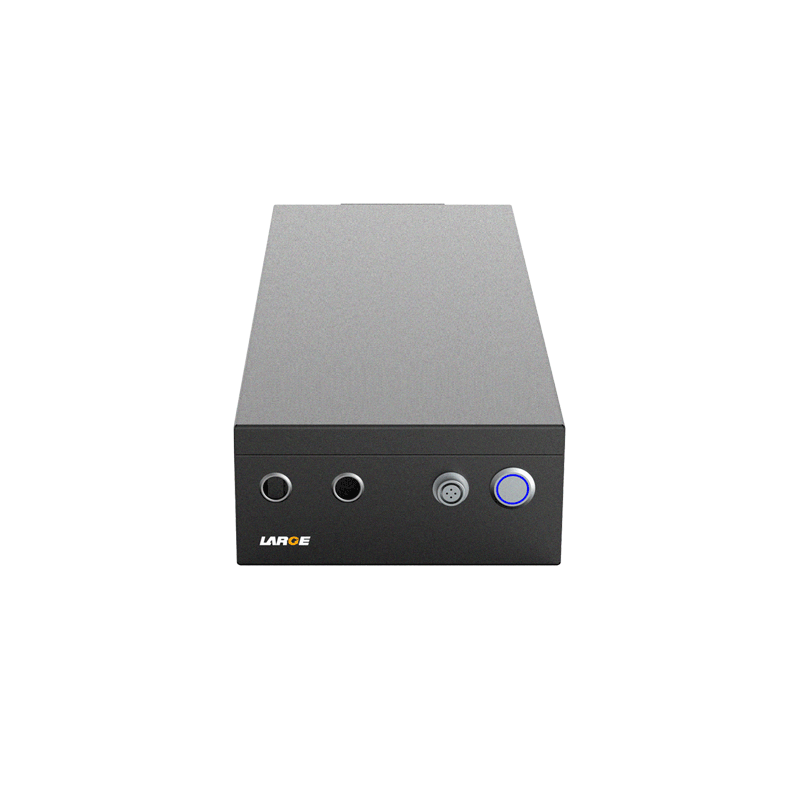

26650 25.6V 21Ah Intelligent LiFePO4 Power Battery for Electric Power Inspection Robot

Product Detail

Product number: 39DZ003-02

Cell model:26650/3.2V/3.5Ah

Battery specification: 26650-8S6P/25.6V/21Ah

Nominal voltage:25.6V

Nominal capacity:21Ah

Charging voltage: 29.2V

Charging current: ≤10A

Discharging current: 40A

Instant discharging current: 60A

End-off voltage: 16V

Internal resistance: ≤150mΩ

Battery weight: 7Kg

Product dimension: 400*160*75mm

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~45 ℃

Temperature protection: 70℃±5℃

Battery case: metal plate housing

Communication management: RS485

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, SOC management, etc.

Application field: electric power inspection robot


Product features

It has low current switch.

The battery has temperature protection.

The battery has capacity detect terminal.

485 communication management: SOC management and failure alarm.

The battery pack has good security and long cycle life.

Fast charge 0.5c.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.


*
*
*
