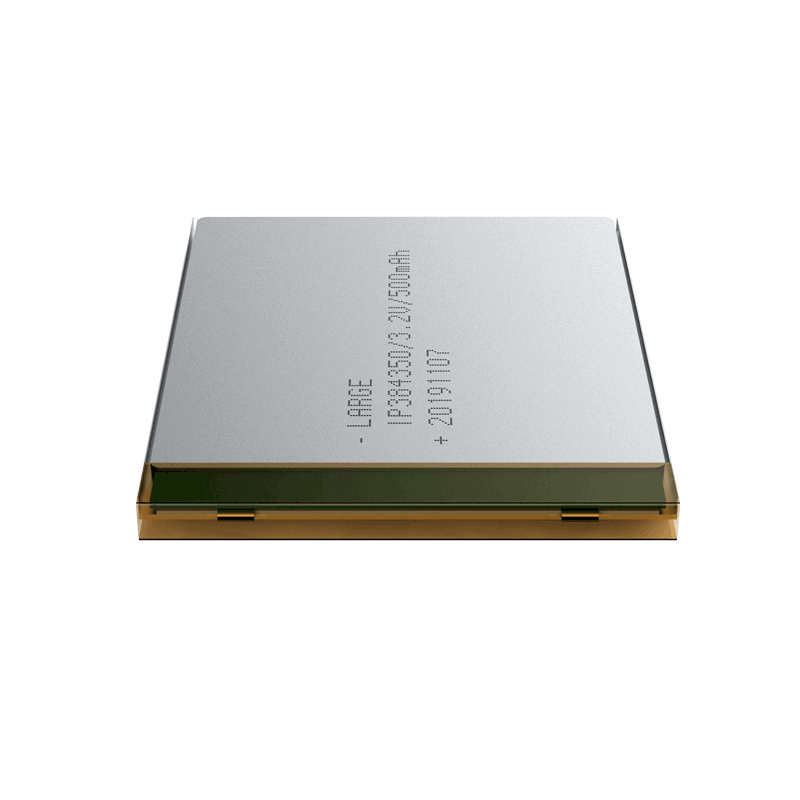

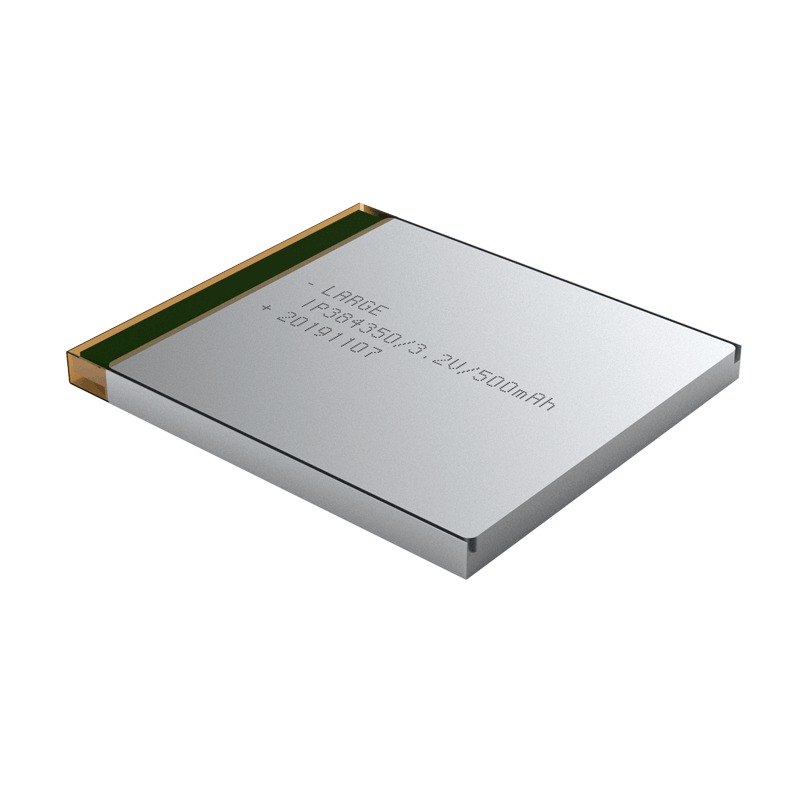

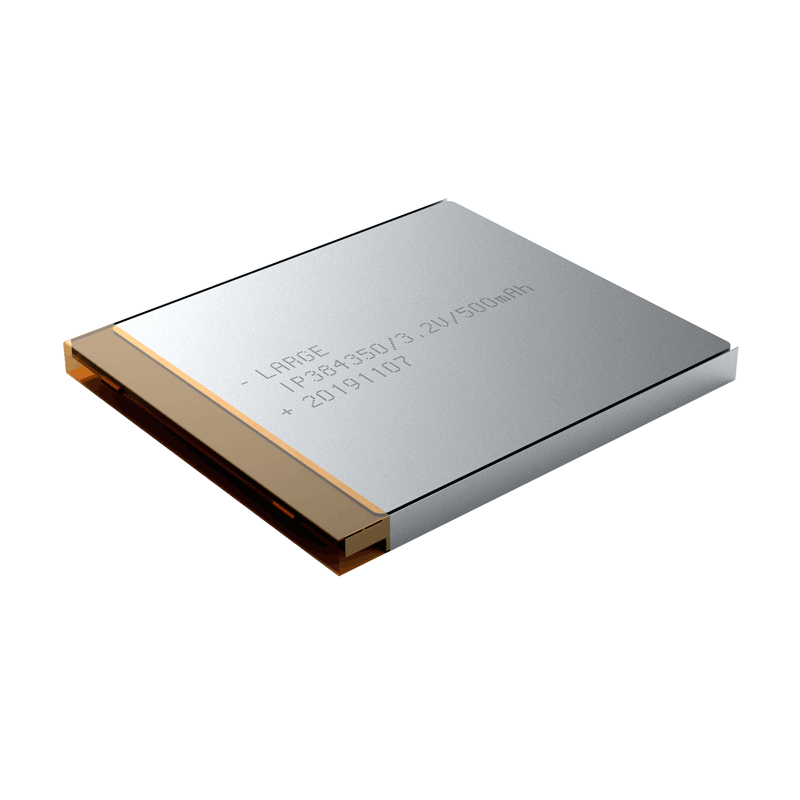

3.2V 500mAh Lithium Polymer Battery LiFePO4 Battery for Internet of Things Locator Card
Product Number:
37DZ054-01
Nominal voltage:
3.2V
Nominal capacity:
500mAh
Battery Configuration:
IP384350-1S1P
Dimension:
3.8 × 44 × 52 mm
Application:
IoT positioning cards
Low Power Consumption, Lightweight Compact Design, Long Cycle Life
Product Overview
This battery is designed for IoT positioning cards, supporting low-power tracking and continuous data transmission applications. Featuring compact lightweight design and stable power output, it ensures reliable long-duration operation for portable IoT devices.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 37DZ054-01 |
| Cell Model | IP384350/3.2V/500mAh |
| Battery Configuration | IP384350-1S1P |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 500mAh |
| Rated Energy | 1.6Wh |
| Charging Voltage | 3.65V |
| Standard Charging Current | ≤250mA |
| Standard Discharge Current | 500mA |
| Max Continuous discharge current | 3-6A |
| Discharge Cut-off Voltage | 2V |
| Internal Resistance | ≤350mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0～45℃ |
| Discharge Temperature | -20～60℃ |
| Storage temperature | -20～45℃ |
| Dimensions | 3.8 × 44 × 52 mm |
| Weight | 13g |
| Battery Case | Simple Adhesive Packaging |
| Protection System | Short Circuit Protection, Overcharge Protection, Over-discharge Protection, Overcurrent Protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
