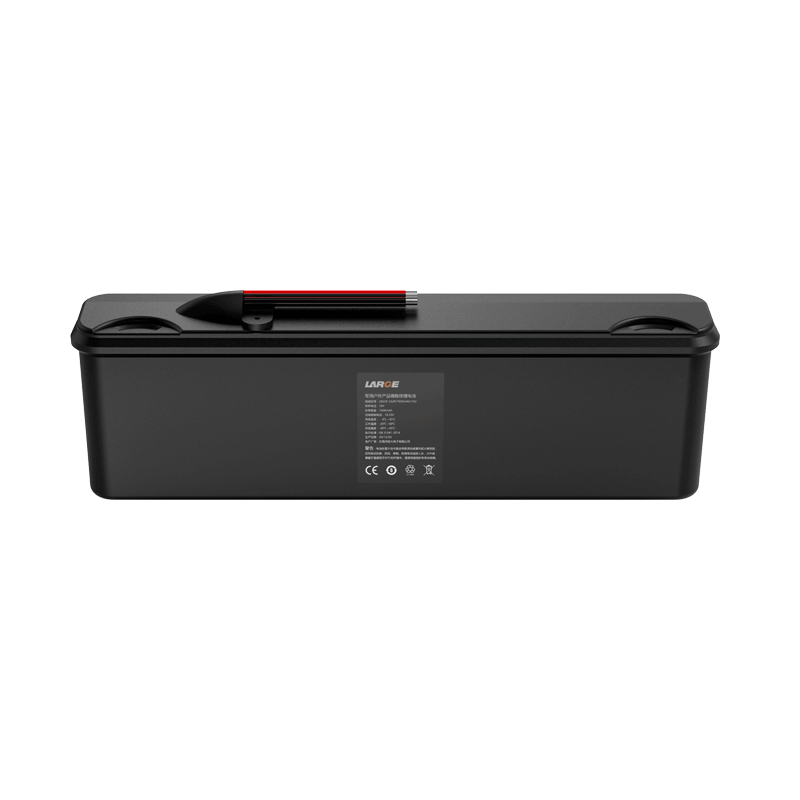

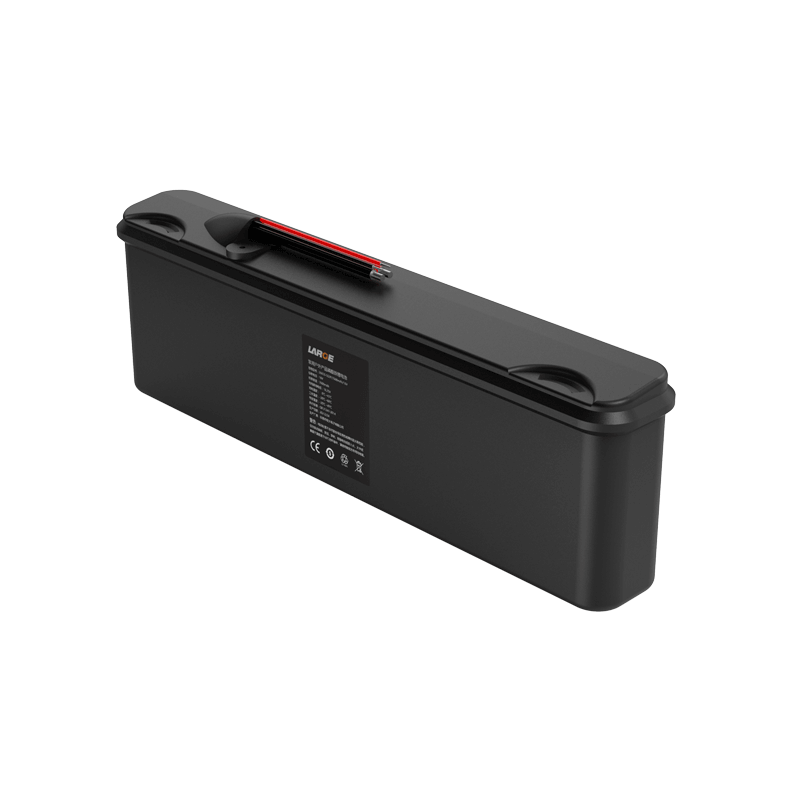

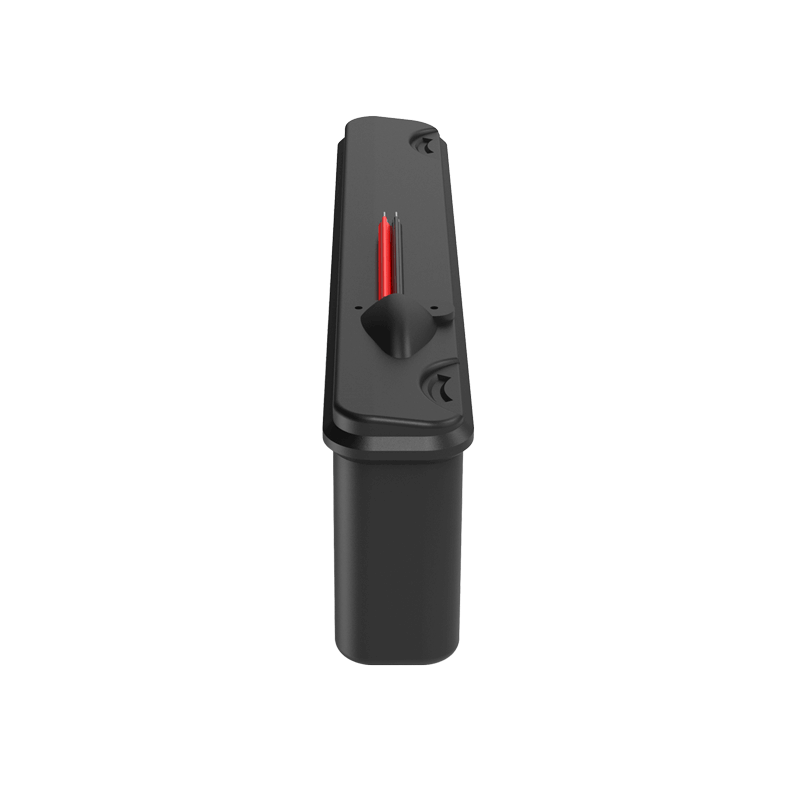

26650 16V 7600mAh LiFePO4 Battery for Special Outdoor Product

Product Detail

Product number: 08DQ0027-01

Cell model:26650/3800mAh/3.2V

Battery specification:26650-5S2P/7600mAh/16V

Battery dimension:278*85*44mm(Max)

Nominal voltage:16V

Nominal capacity:7.6Ah

Charging voltage: 18.25V

Charging current: ≤4A

Discharging current: ≤15A

End-off voltage:11V

Internal resistance: ≤180mΩ

Battery weight: 1.2Kg

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~+45℃(less than one month)-20~35 ℃(less than three months);-20~+25℃(less than twelve months)

Battery case:PVC heat shrinkable film+plastic housing

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: special outdoor product



Product features

1. Blue PVC is simple and reliable, and is easy to install.

2. Output terminal: Adopt the national standard UL wire output mode to increase the electrical reliability.

3. Battery protection management: Adopt imported well-known brand protection chip with good stability, high precision monitoring, precise control to eliminate safety risks.

4. The battery pack has good safety,nice discharge performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
