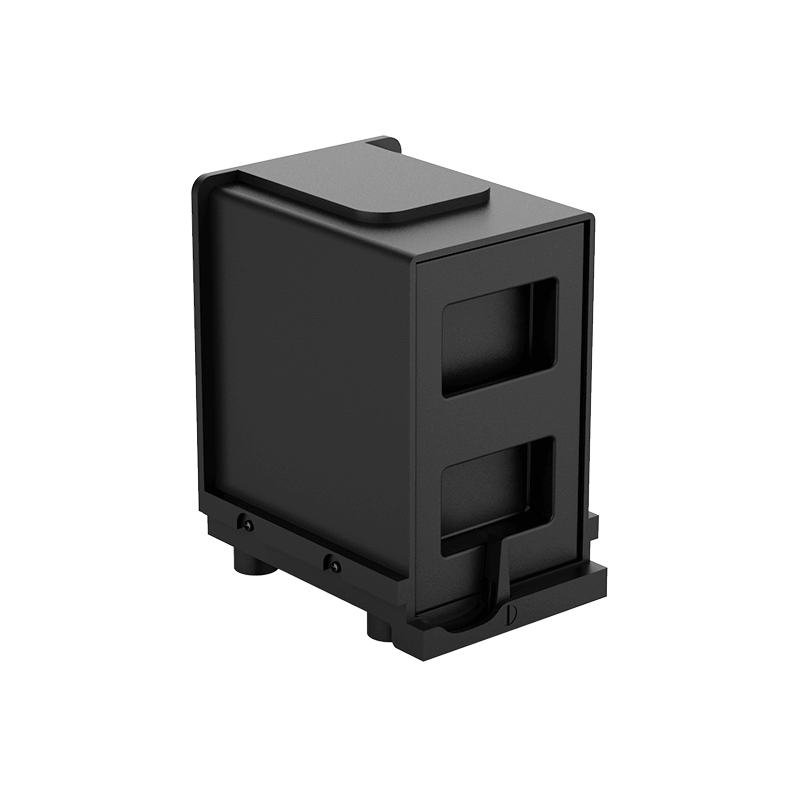

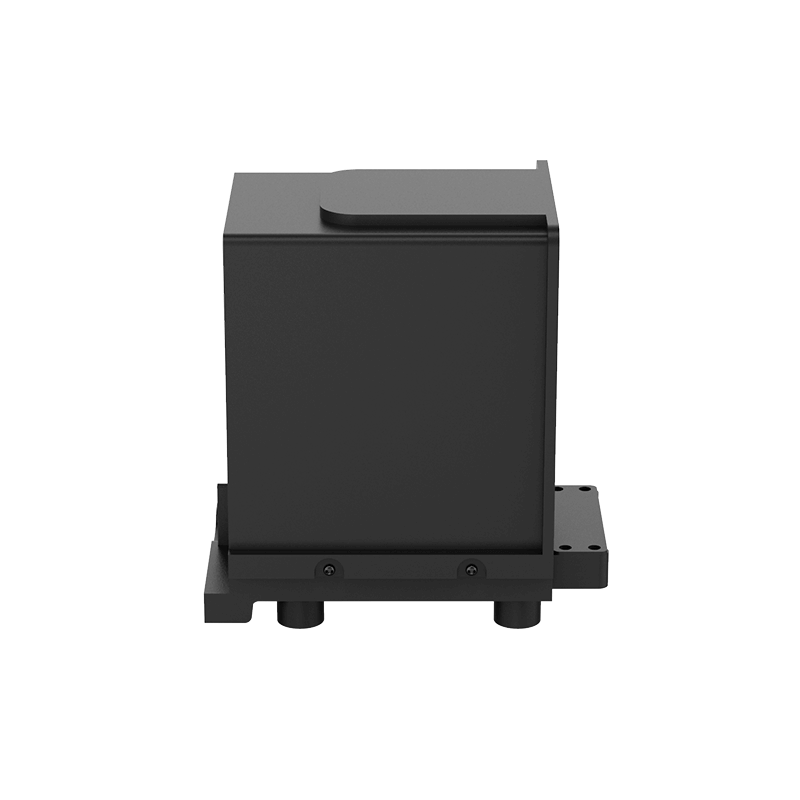

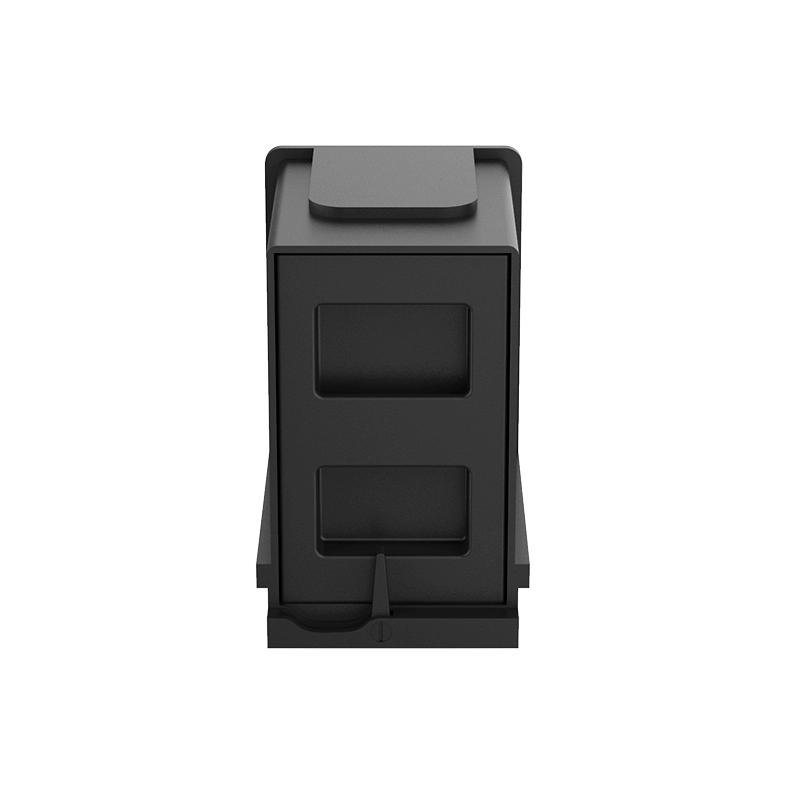

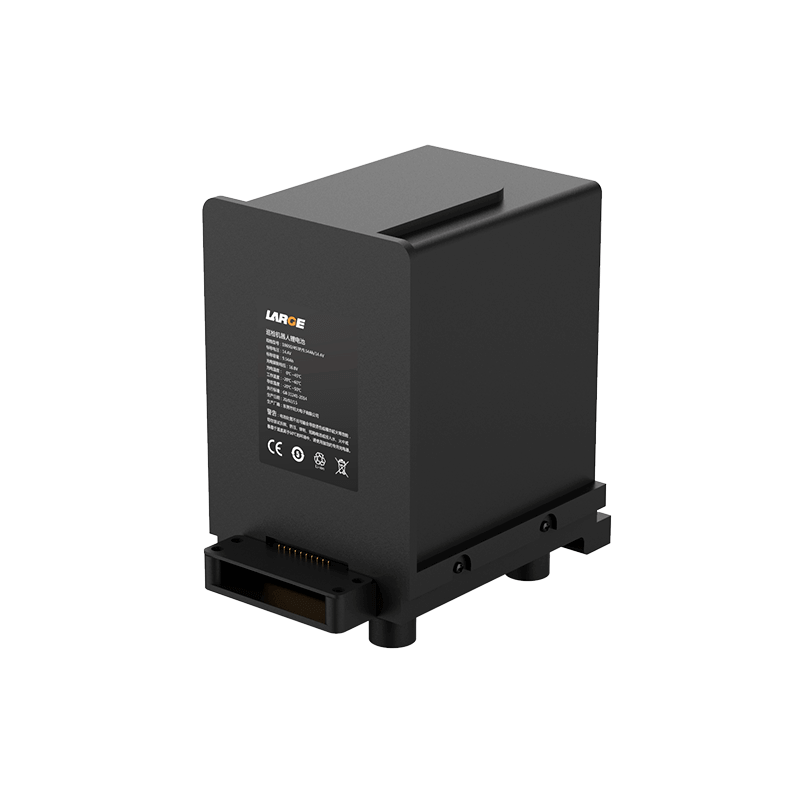

18650 14.4V 9540mAh Lithium-ion Battery for Robot

Product Detail

Product number: 08DQ0049-01

Cell model: 18650/3180mah /3.6V

Specification: 18650-4S3P/ 9.54AH /14.4V

Product size: 98mm*60mm*85mm

Nominal voltage: 14.4V

Nominal capacity: 9.54Ah

Charging voltage: 16.8V

Charging current: 2A

Discharge current: 10A

Discharge cut-off voltage: 10V

Product internal resistance: ≤180mΩ

Battery weight: 750g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20~+50℃ (< 1 month) -20~ 40 ℃(< 3 months); -20~+20℃ (< 12 months)

Battery case: plastic case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Robotics

*
*
*
