Custom Lithium ion Battery Pack

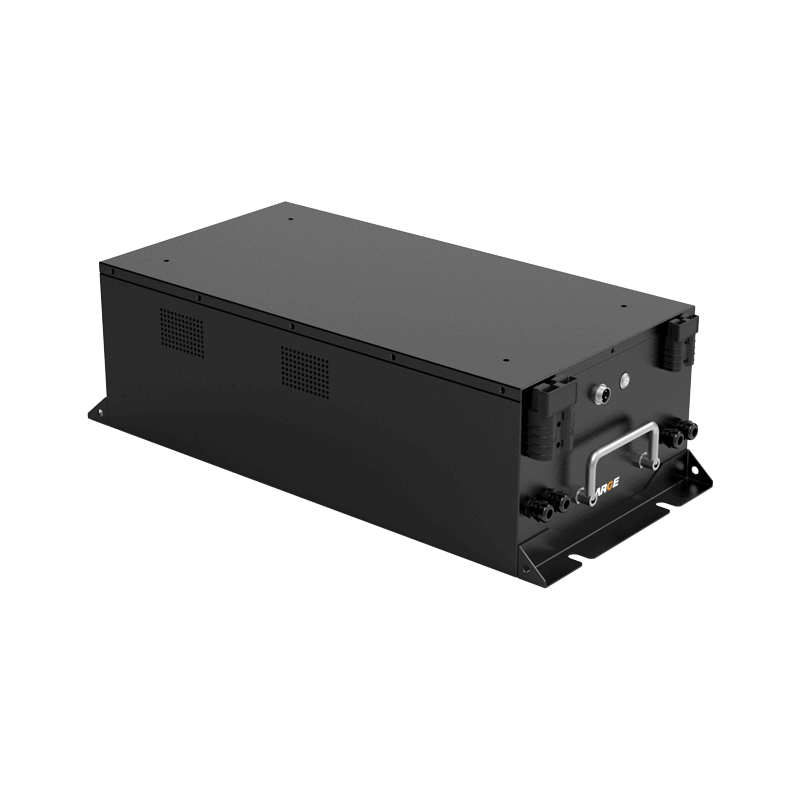

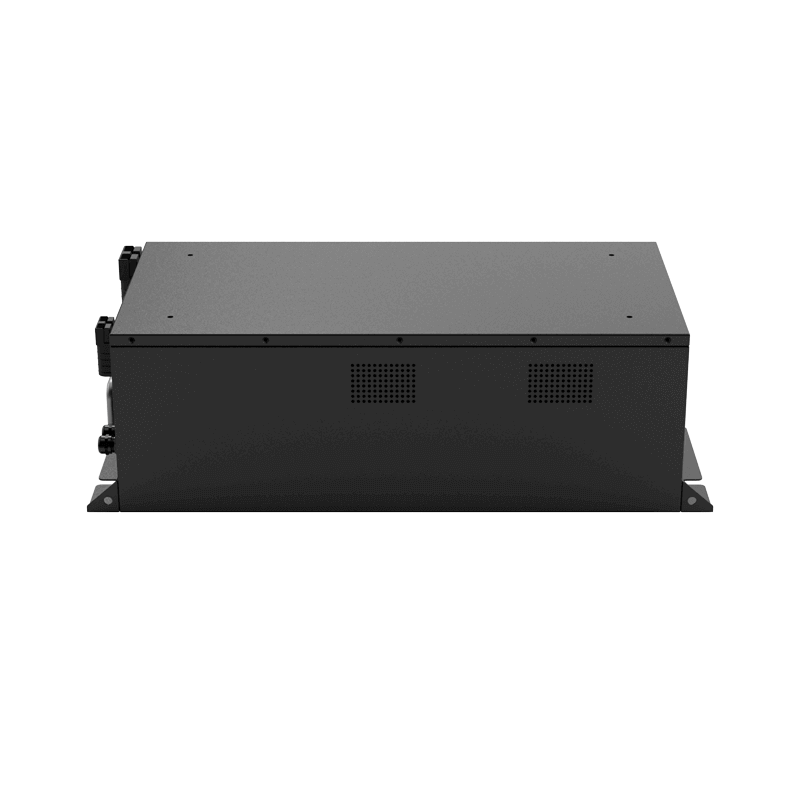

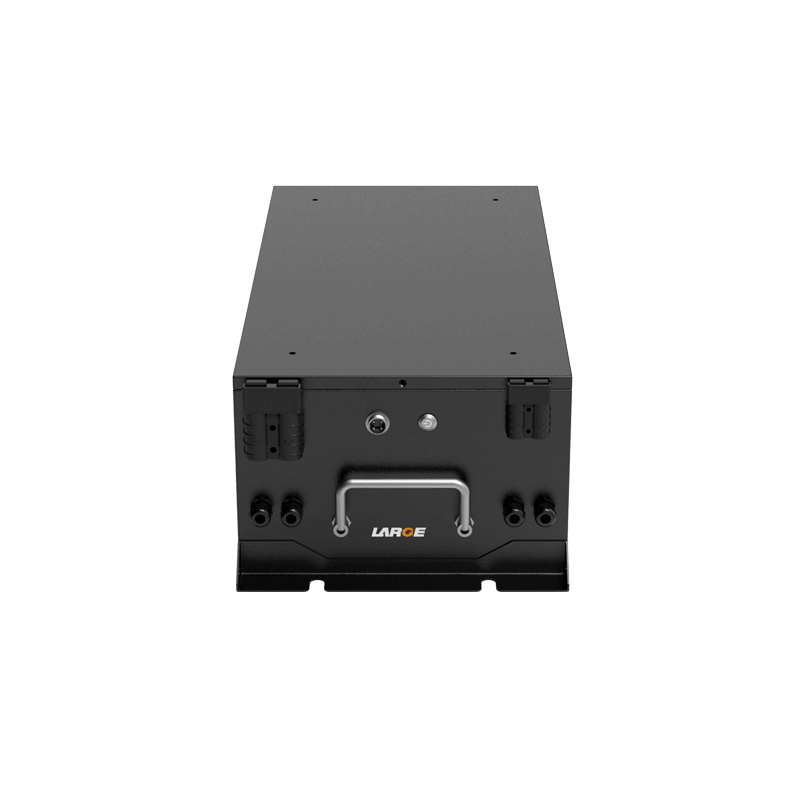

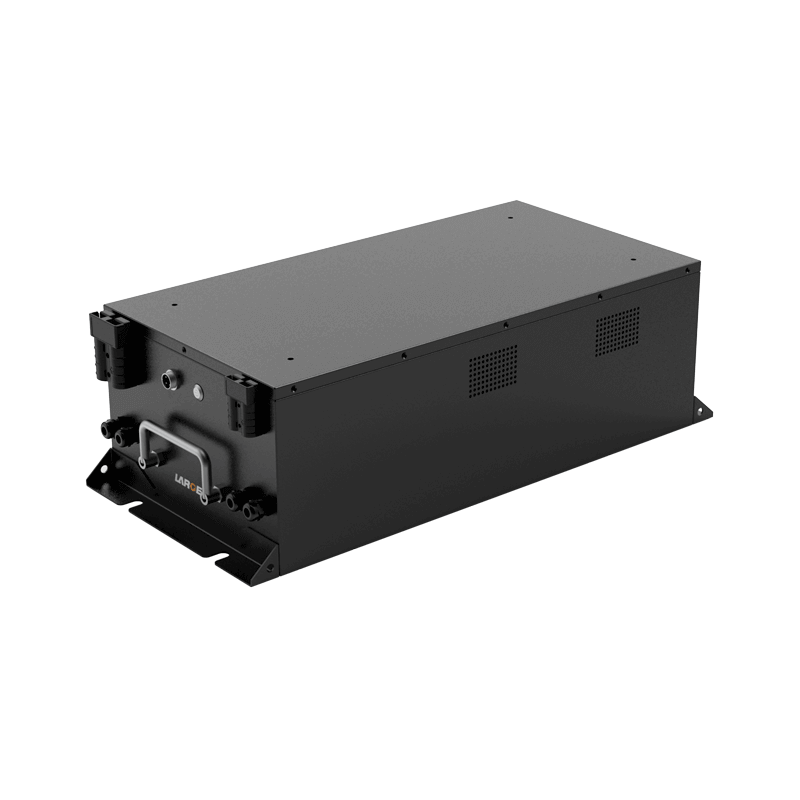

IRF26650 51.2V 39.2Ah LiFePO4 Battery for Sightseeing car

Product Detail

Product number: 08DQ0029-01

Cell model:IRF26650/2800mAh/3.2V

Battery specification: IRF26650-16S14P/39.2Ah/51.2V

Product dimension: 580*270*176mm(Max)

Nominal voltage:51.2V

Nominal capacity:39.2Ah

Charging voltage: 58.4V

Charging current: ≤40A

Discharging current: ≤80A

End-off voltage:32V

Internal resistance: ≤150mΩ

Battery weight: 35Kg

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~+45℃(less than one month),-20~35 ℃(less than three months),-20~+25℃(less than twelve months)

Battery case: black metal housing

Lithium ion battery protection: short circuit protection, overcharging protection, over-discharging protection, overcurrent protection, temperature protection, etc.

Application field: sightseeing car, towing tractor



Product features

1. Black metal housing is simple and reliable, and is easy to install.

2. CAN communication protocol.

3. Battery protection management:Adopt imported well-known brand protective chip with good stability,high precision monitoring and accurate control to eliminate safety risks.

4.The battery pack has good safety performance, nice low temperature performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
