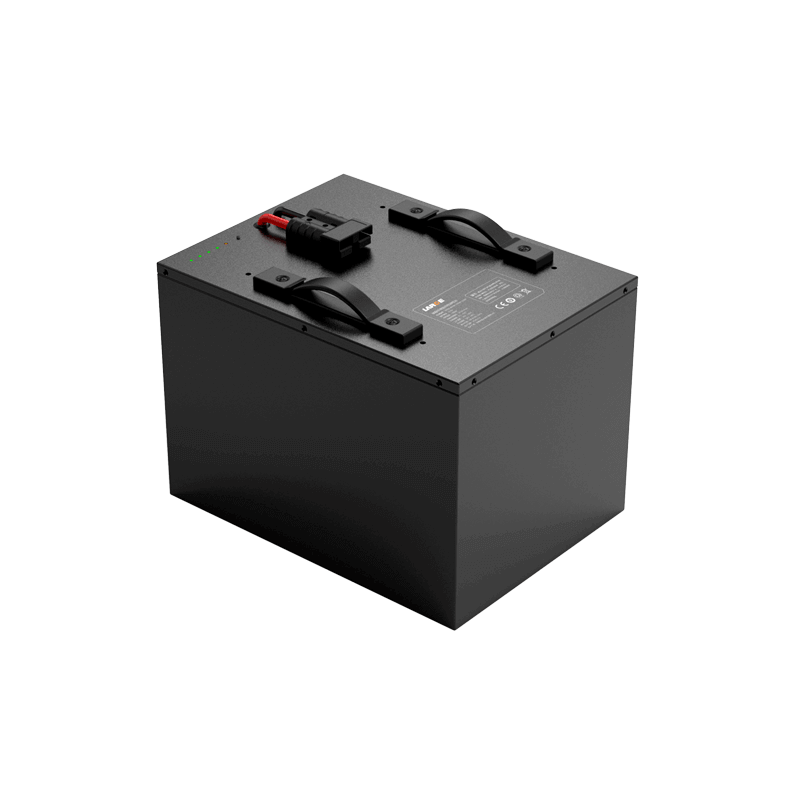

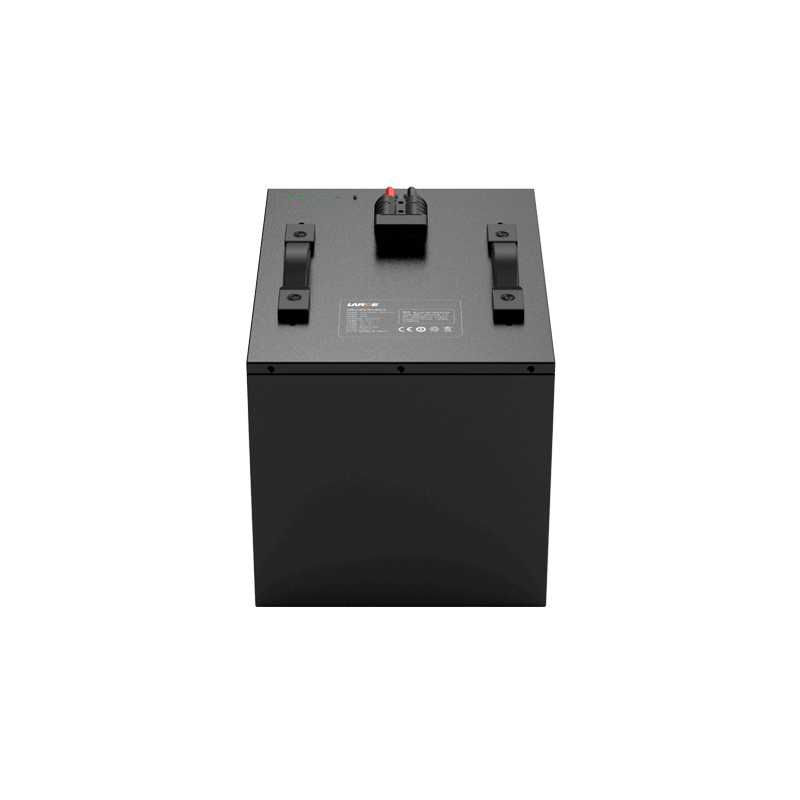

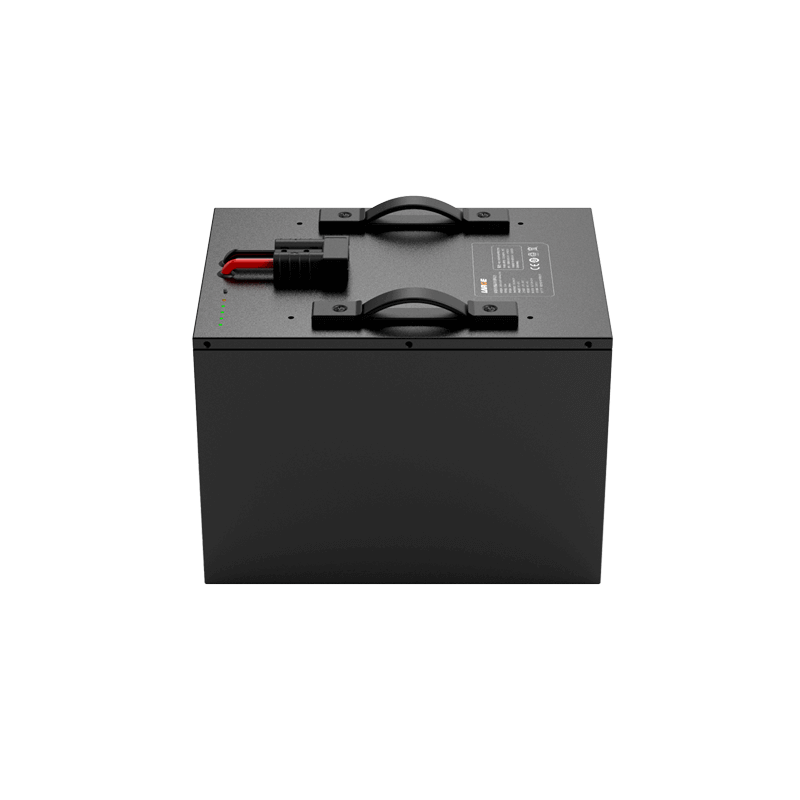

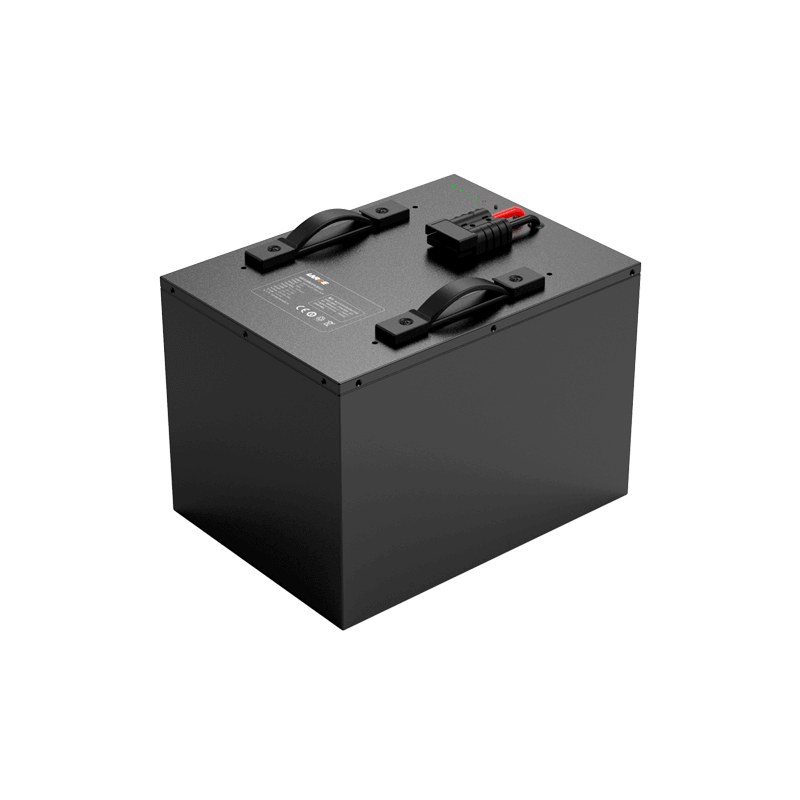

Product number: 66AQ001-01
Battery specification: 26650-8S30P-100AH-25.6V
Product dimension: 320*250*240mm (±2.0mm)
Rated output voltage: 20V~28V
Nominal capacity: 100Ah
Charging voltage: 29.2V±0.2V
Charging current: ≤60A
Discharge current: ≤60A
Discharge cut-off voltage: 20.0V
Battery weight: 31Kg
Charging temperature: 0 ~ 53℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -10~+45℃ (less than 1 month) -15 ~ 35℃(less than 6 months);
Battery encapsulation:metal-plated shell
Lithium-ion battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.
Application: Shielded signal vehicle
1.Metal-plated shell has upper and lower cover, which is simple and reliable,and easy to install.
2.Output Output: Anderson 120A connector
3.Battery protection management: Use imported well-known brand protection chip with good stability, high precision monitoring and precise control to eliminate safety risks.
4.The battery pack has good safety, nice discharge performance and long cycle life;
5.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
