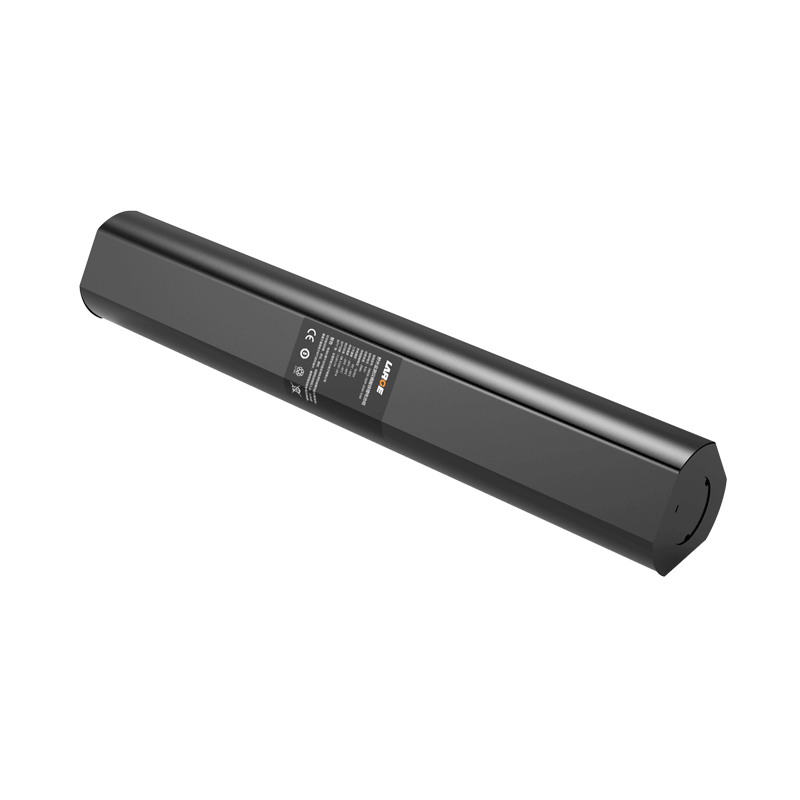

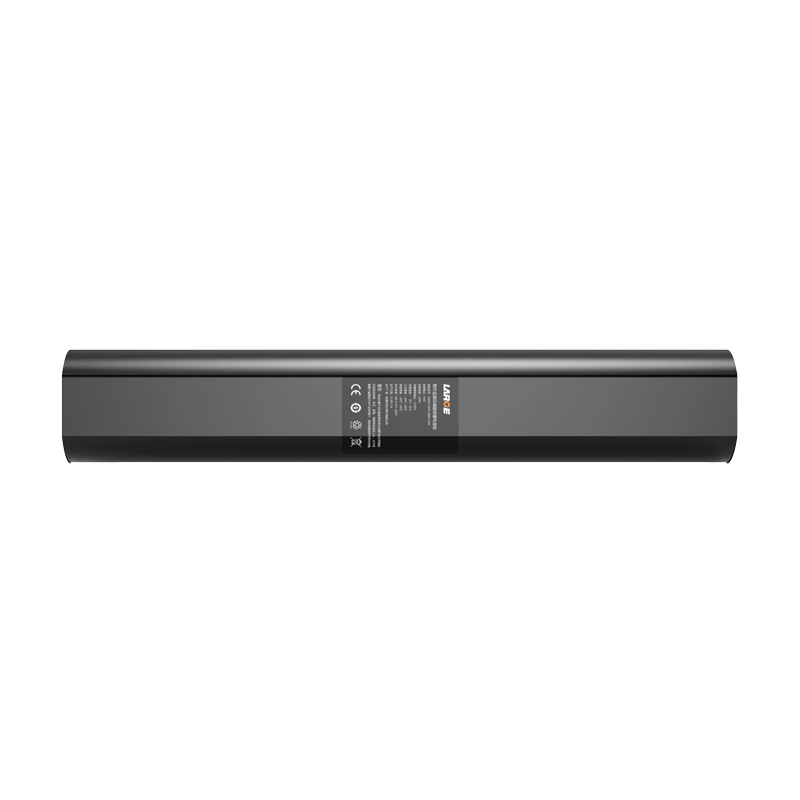

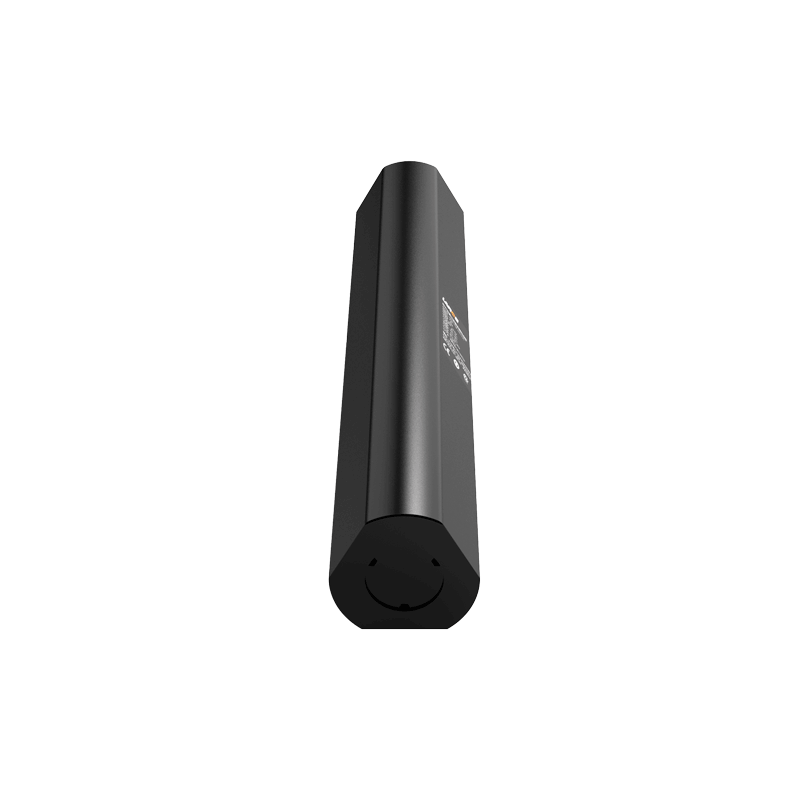

26650 9.6V 20Ah LiFePO4 Battery for Field Monitor

26650 9.6V 20Ah LiFePO4 Battery for Field Monitor
26650 9.6V 20Ah LiFePO4 Battery for Field Monitor
26650 9.6V 20Ah LiFePO4 Battery for Field Monitor
26650 9.6V 20Ah LiFePO4 Battery for Field Monitor

Product Detail

Product number: 34AQ078-01

Cell model: 26650/4000mAh/3.65V

Battery specification: 26650-3S5P-20AH-9.6V

Product dimension: 336*58*58mm (Max)

Nominal voltage: 9.6V

Nominal capacity: 20Ah

Charging voltage: 10.95V

Charging current: ≤4A

Discharge current: ≤1.2A

Discharge cut-off voltage: 6V

Internal resistance of finished product: ≤200mΩ

Battery weight: 1.6kg

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20~+45℃ (less than 1 month) -20~ 35 ℃(less than 3 months); -20~+25℃ (less than 12 months)

Battery Package: PCV

Lithium-ion battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc

Application: geophysical field monitor

*
*
*
*
*
