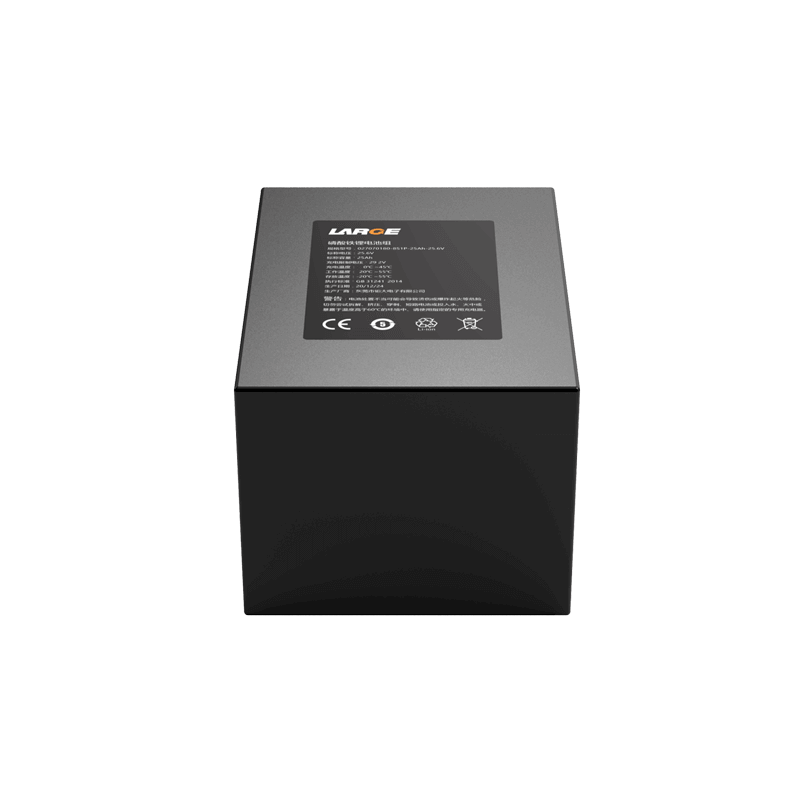

25.6V 25Ah LiFePO4 Battery
LiFePO4 Lithium ion Battery Pack
25.6V 25Ah Lithium ion Battery Pack

25.6V 25Ah LiFePO4 Battery Pack

Product Number:
34AQ072-01
Nominal voltage:
25.6V
Nominal capacity:
25Ah
Battery Configuration:
027070180-8S1P
Dimension:
205×150×120mm
Application:
robotic
Get Custom Solution
CAN communication,LiFePO4 safety,overcurrent protection
Product Overview
This LiFePO4 battery is designed for inspection robots used in industrial inspection and outdoor monitoring scenarios. It delivers stable 25.6V output with CAN communication and multi-protection design, ensuring reliable long-duration operation in compact robotic systems.

Electrical Specifications

Attribute Parameter
Product Number 34AQ072-01
Cell Model 027070180/25Ah/3.2V
Battery Configuration 027070180-8S1P
Nominal Voltage 25.6V
Nominal Capacity 25Ah
Rated Energy 640Wh
Charging Voltage 29.2V
Discharge Cut-off Voltage 20V
Standard Charging Current 5A
Standard Discharge Current 5A
Internal Resistance ≤120mΩ

Mechanical & Environmental

Attribute Parameter
Charging Temperature 0～45℃
Discharge Temperature -20～+55℃
Storage Temperature -20～+55℃
Dimensions 205×150×120mm
Weight 5620g
Battery Case PVC
Communication Protocol CAN
Protection System Overcharge / Overdischarge / Overcurrent / Short-circuit protection

Application Background
This battery pack is designed for inspection robots used in industrial facilities, pipelines, and outdoor monitoring scenarios. The robot requires continuous operation with stable power supply for sensors, cameras, and mobility systems in compact onboard space.

Project Challenges
Continuous operation 6–10 hours in inspection missions
Multiple motor loads cause peak current fluctuation
Frequent charge–discharge cycles require stable cycle life
Compact robot structure limits battery size and weight

Customized Battery Solution
25.6V LiFePO4 platform: stable power for robotic driving system
High-safety chemistry: LiFePO4 cells ensure long cycle life and thermal stability
CAN communication BMS: real-time monitoring of SOC and system status
Multi-protection system: overcharge, overdischarge, overcurrent and short-circuit protection

Application Results
Enables stable continuous operation for 6–10 hours inspection tasks
Improved power stability under dynamic motor load conditions
Enhanced operational safety and system reliability
Extended cycle life supports long-term industrial deployment

We support flexible customization based on your project requirements, including:

  • Voltage range: 3.2V – 72V
  • Capacity range: 100mAh – 100Ah
  • Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
  • Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
  • BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
