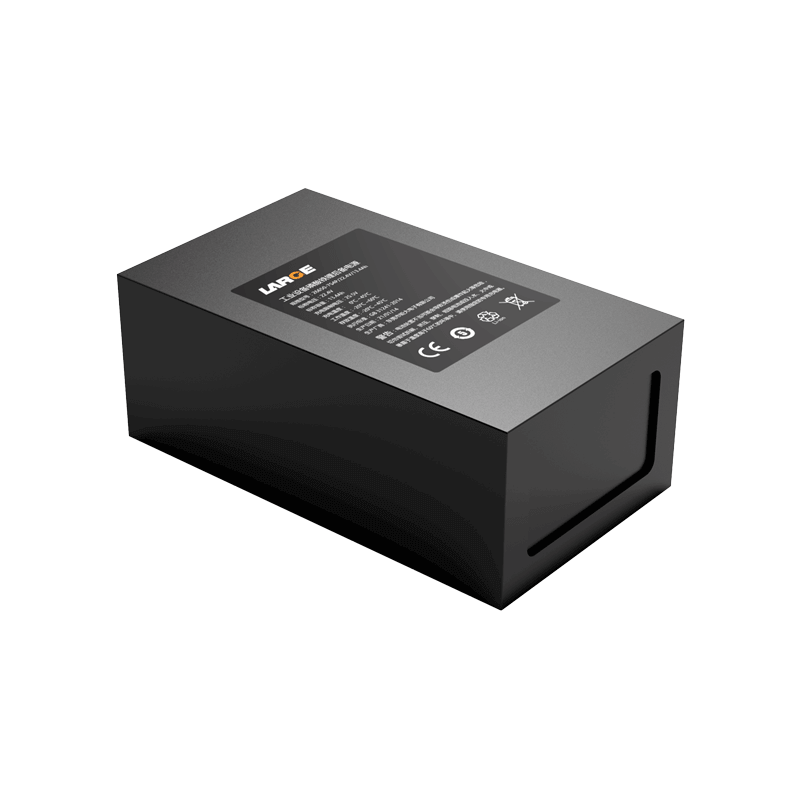

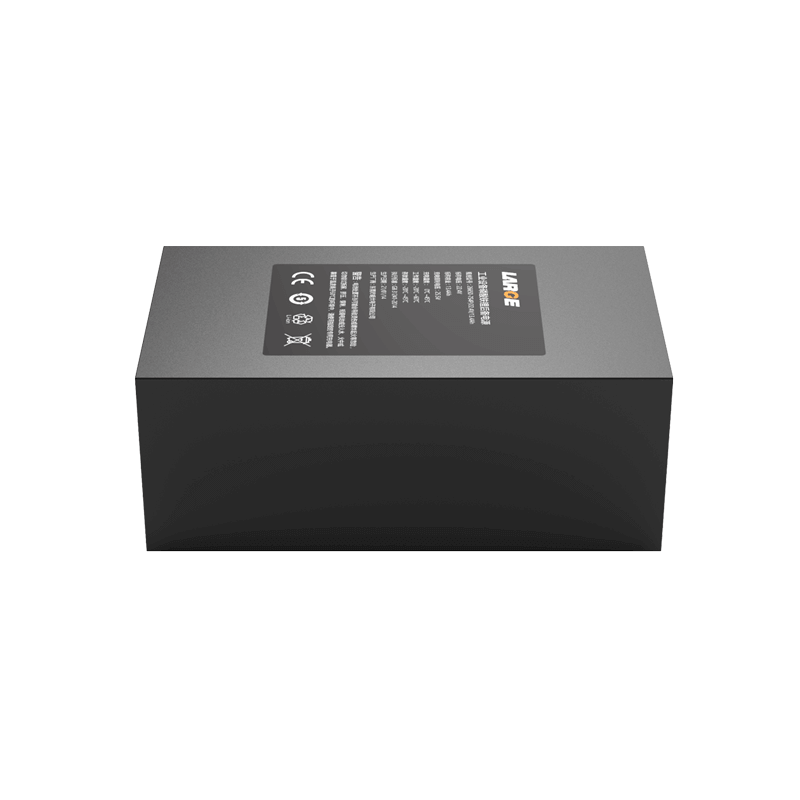

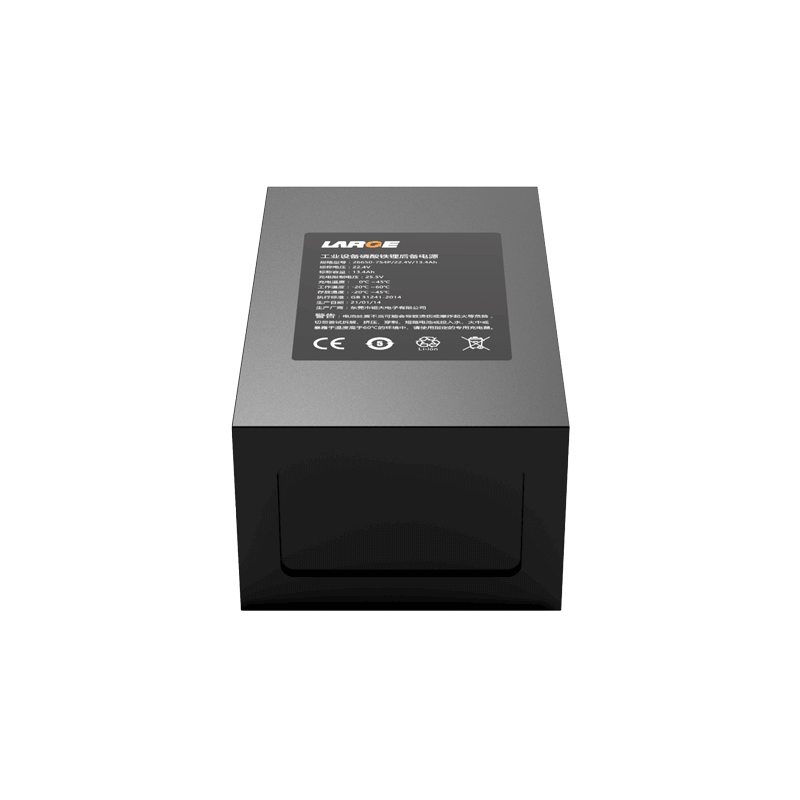

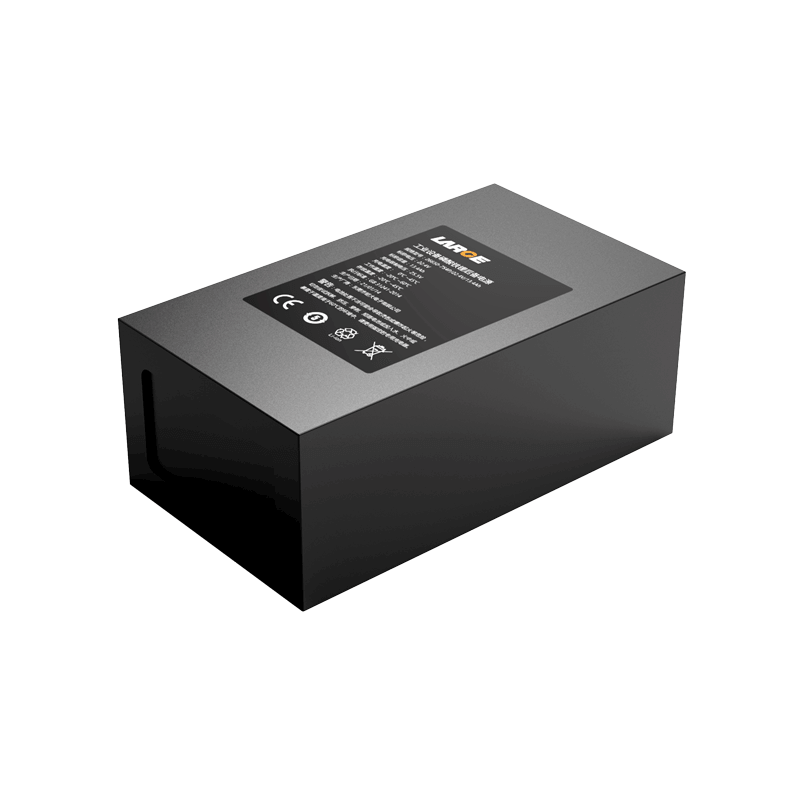

26650 22.4V 13.4Ah LiFePO4 Battery for Backup Power

Product Detail

Project number : 33DZ026-01

Cell model: 26650/3.2V/3.35Ah

Battery specification: 26650-7S4P/22.4V/13.4Ah

Nominal voltage: 22.4V

Nominal capacity: 13.4Ah

Charging voltage: 25.5V

Charging current: ≤6.2A

Discharge current: 25A

Instant discharge current: less than 40A

Discharge cut-off voltage: 16.1V

Internal resistance of finished product: ≤200mΩ

Battery weight: 200g

Product dimension: 80*116*200mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 45℃

Temperature protection: 75℃±5℃

Battery case: PVC

Lithium-ion battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, temperature protection, etc.

Application: Backup power supply for industrial equipment

*
*
*
