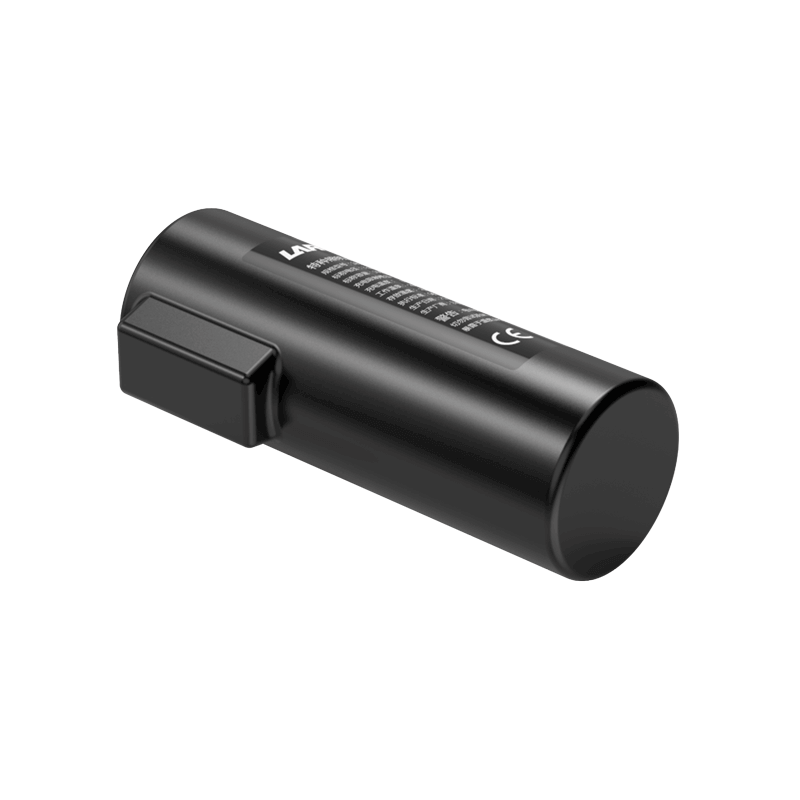

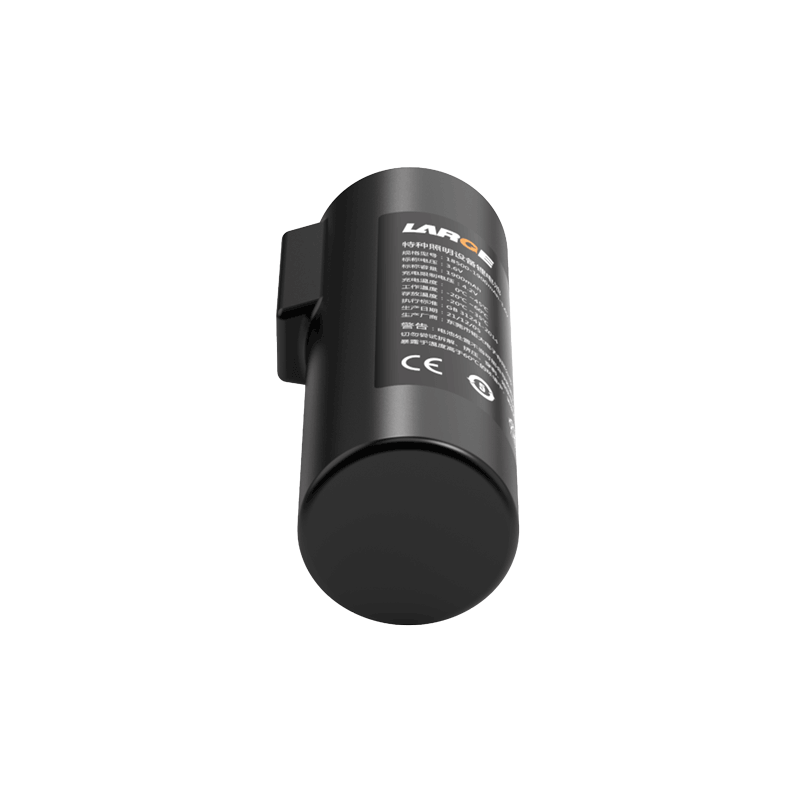

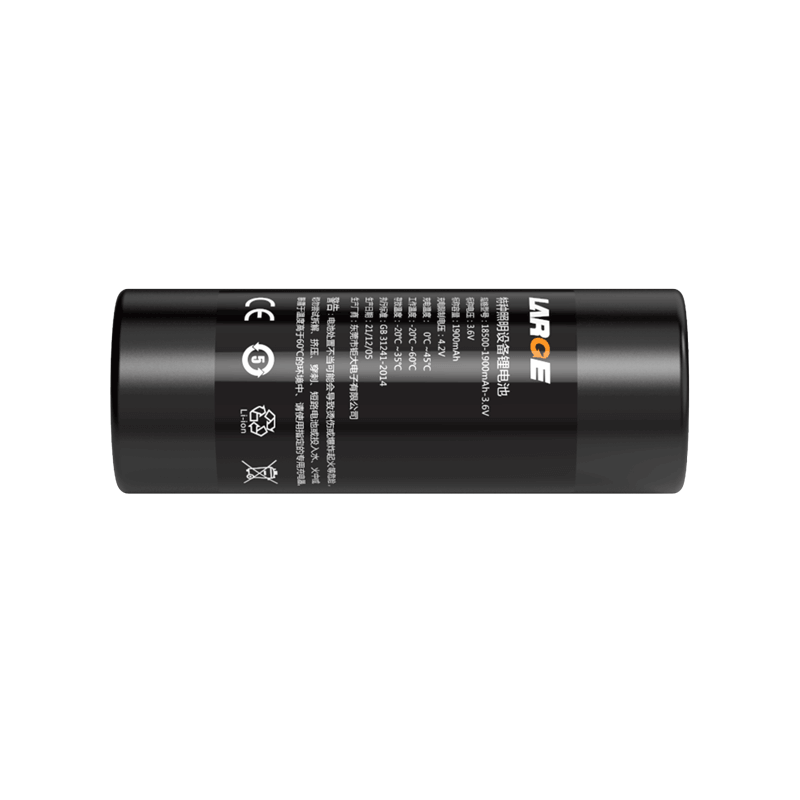

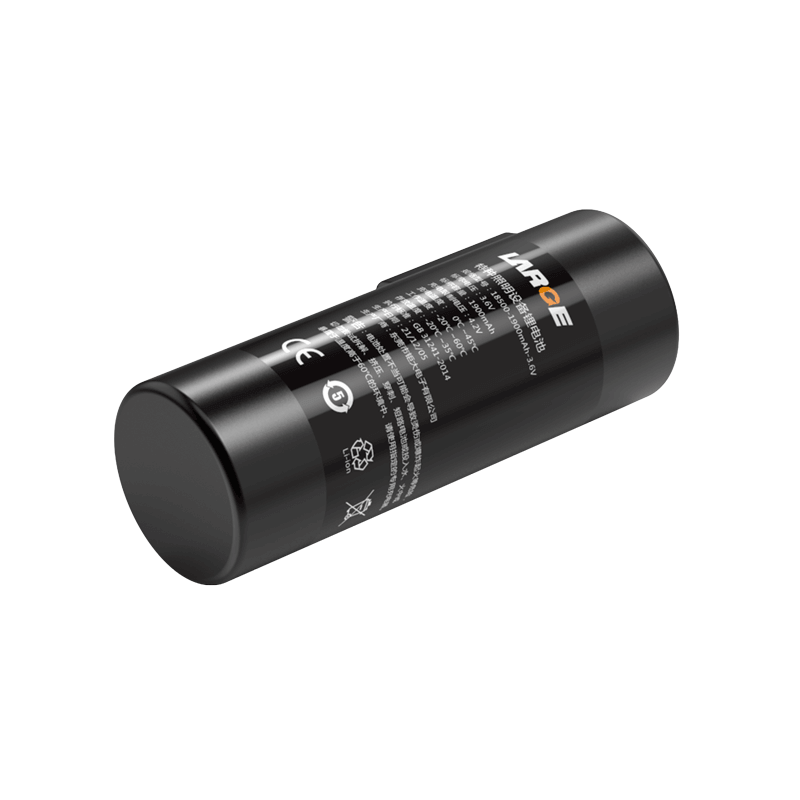

1900mAh 3.6V Lithium-ion Battery for Special Lighting Equipment

Product number: 04BQ118-32

Cell model: 18500-1900MAH-3.6V

Specification: 18500-1S1P-1900MAH-3.6V

Product size: 53*22*19mm (Max)

Nominal voltage: 3.6V

Nominal capacity: 1900mAh

Internal resistance: ≤175mΩ

Charging voltage: 4.2V

Charging current: ≤0.95A

Discharge current: ≤0.95A

Discharge cut-off voltage: 2.8V

Battery weight: 40G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35°C

Battery case: blue PVC heat shrinkable film

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: portable testing equipment, special lighting equipment

Product Features

1.The ABS+PC aluminum alloy shell increases reliability and firmness to the battery.

2.Blue PVC heat shrinkable film package is simple, reliable and easy to install.

3.Adopt high temperature silica gel line output method to increase conductive reliability.

4.Battery protection management: Adopt dedicated lithium battery protection chip with good stability, high precision monitoring and precise control,temperature protection to eliminate security risks to the greatest extent.

5.The battery pack is safe, has good discharge performance and long cycle life.

6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
