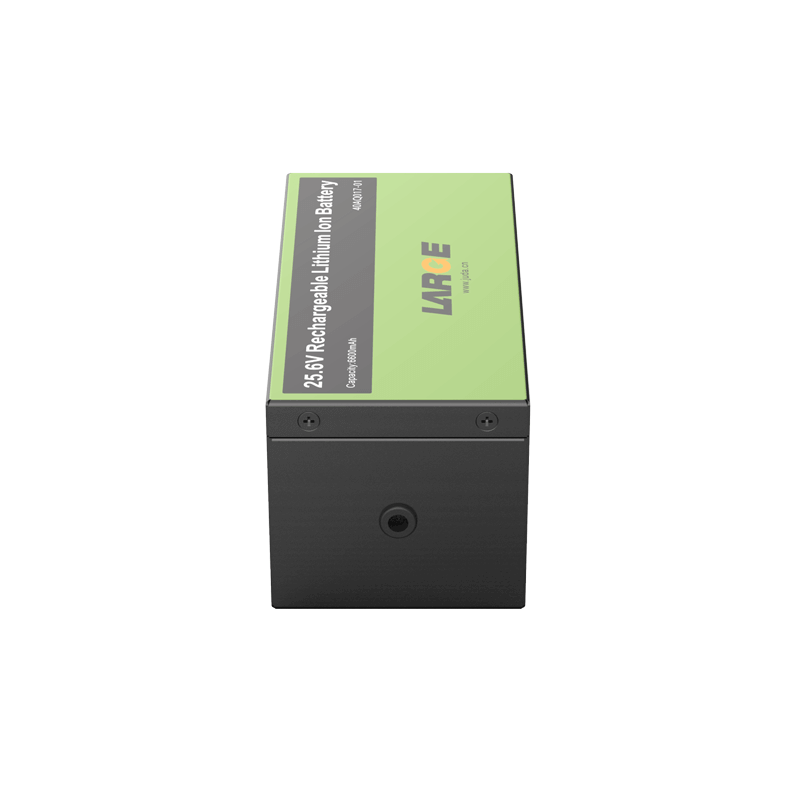

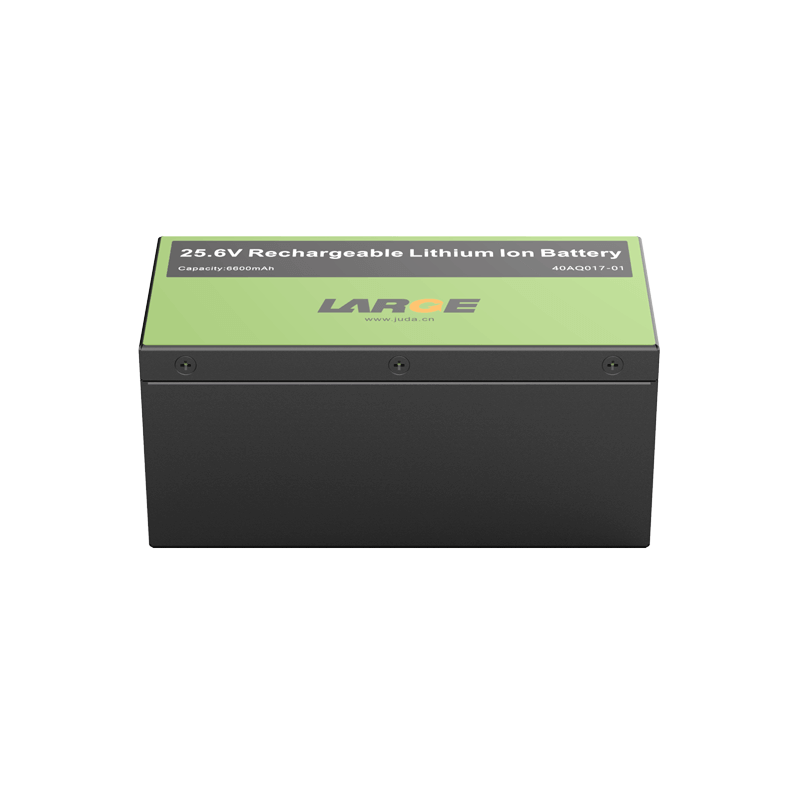

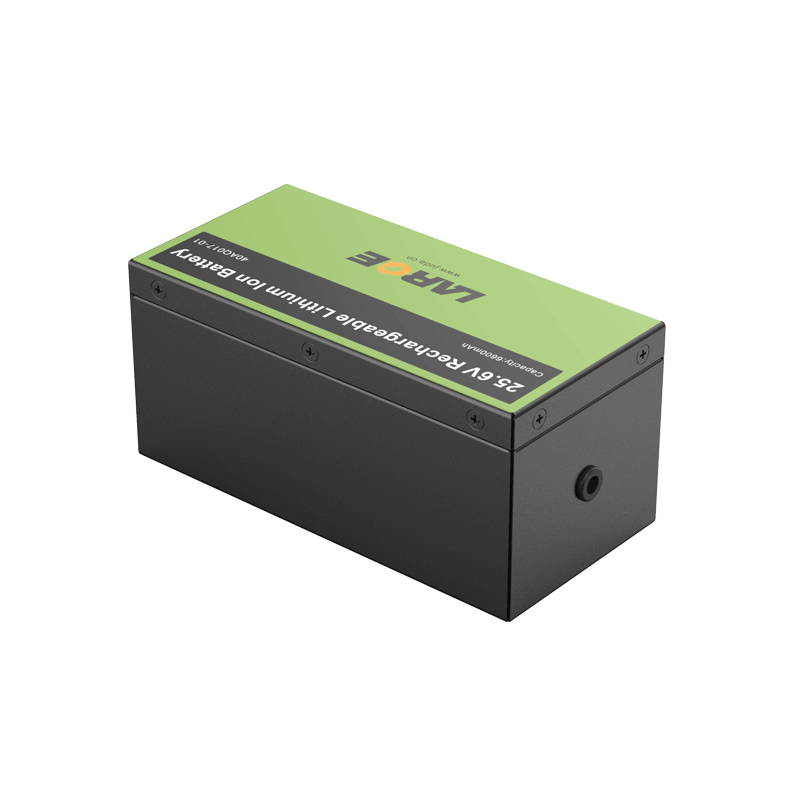

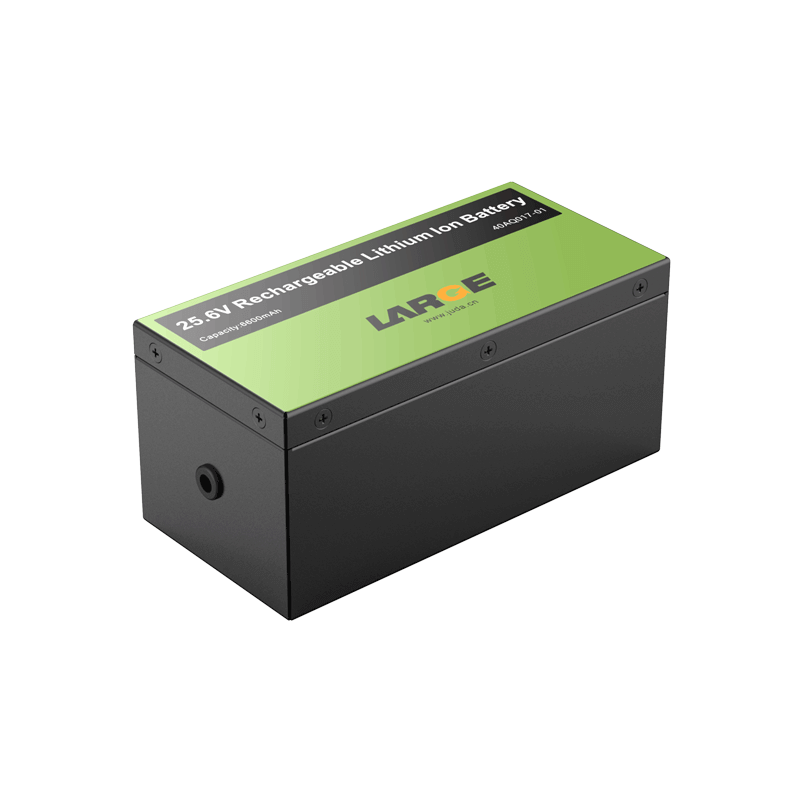

26650 25.6V 6600mAh Low Temperature Battery for Photovoltaic Tracking Controller

26650 25.6V 6600mAh Low Temperature Battery for Photovoltaic Tracking Controller
26650 25.6V 6600mAh Low Temperature Battery for Photovoltaic Tracking Controller
26650 25.6V 6600mAh Low Temperature Battery for Photovoltaic Tracking Controller
26650 25.6V 6600mAh Low Temperature Battery for Photovoltaic Tracking Controller

Product Detail

Product number: 40AQ017-01

Cell model: IFR26650G2X/3300mAh/3.2V

Battery specification: 26650-8S2P/6600mAh/25.6V

Nominal voltage: 25.6V

Nominal capacity: 6600mAh

Charging voltage: 29.2V

Charging current: 1320mA

Discharge current: 1320mA

Instant discharge current: 18A

Discharge cut-off voltage: 16V

Finished product internal resistance: ≤300mΩ

Battery weight: 6000g

Product dimension: 195*95*90mm

Charging temperature: -20 ~ 45℃

Discharge temperature: -40 ~ +55℃

Storage temperature: -20 ~ +45℃

Battery case: sheet metal parts

Lithium battery protection: conventional protection + hardware board


Product features

1.It supports low temperature charging and discharging with low temperature solution;

2.Sheet metal shell has firm structure;

3.It has ultra-low temperature charging and heating scheme.

*
*
*
