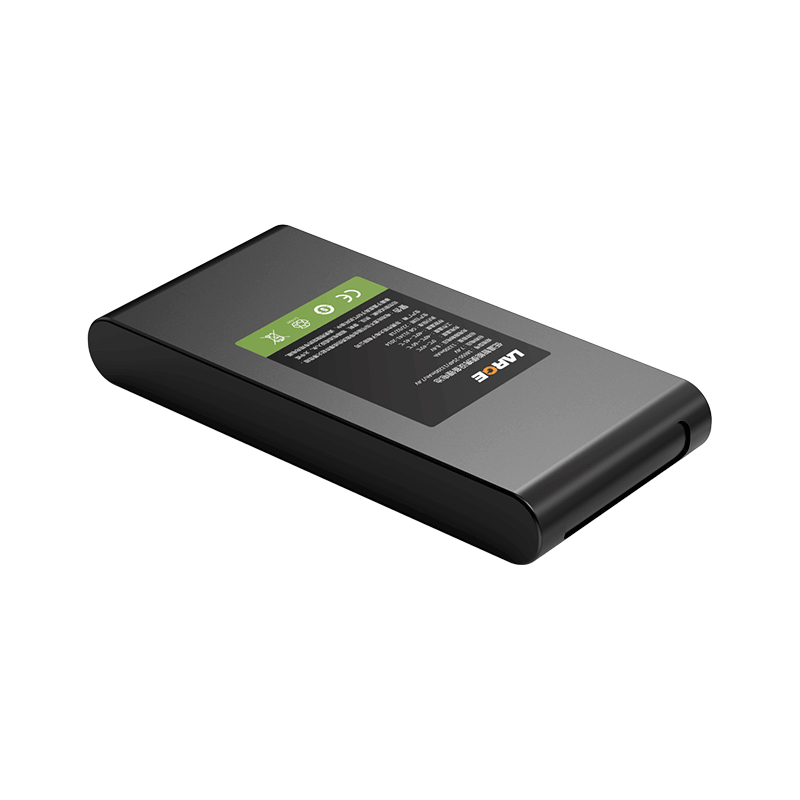

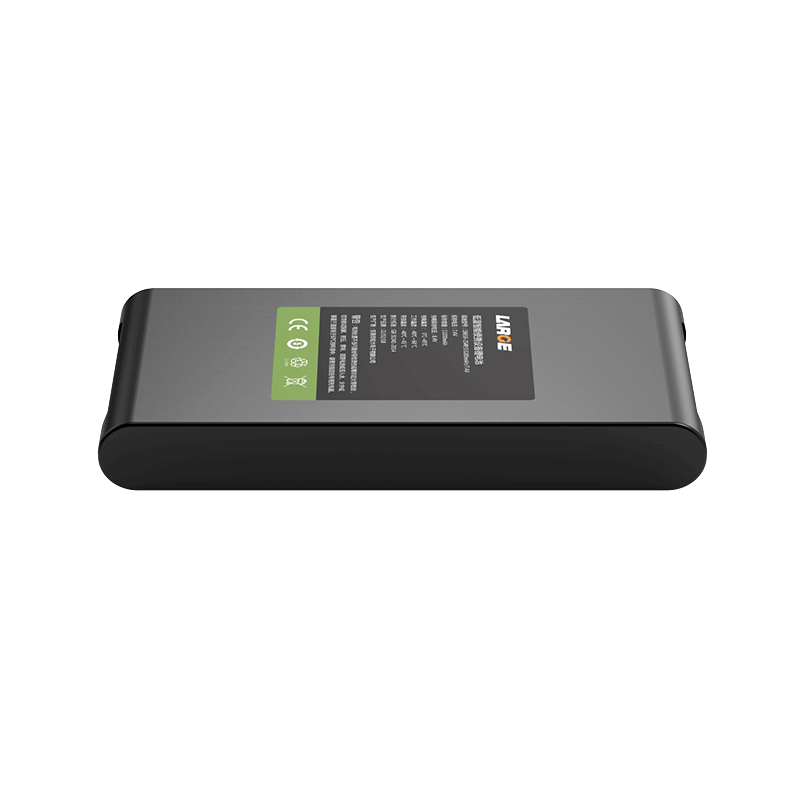

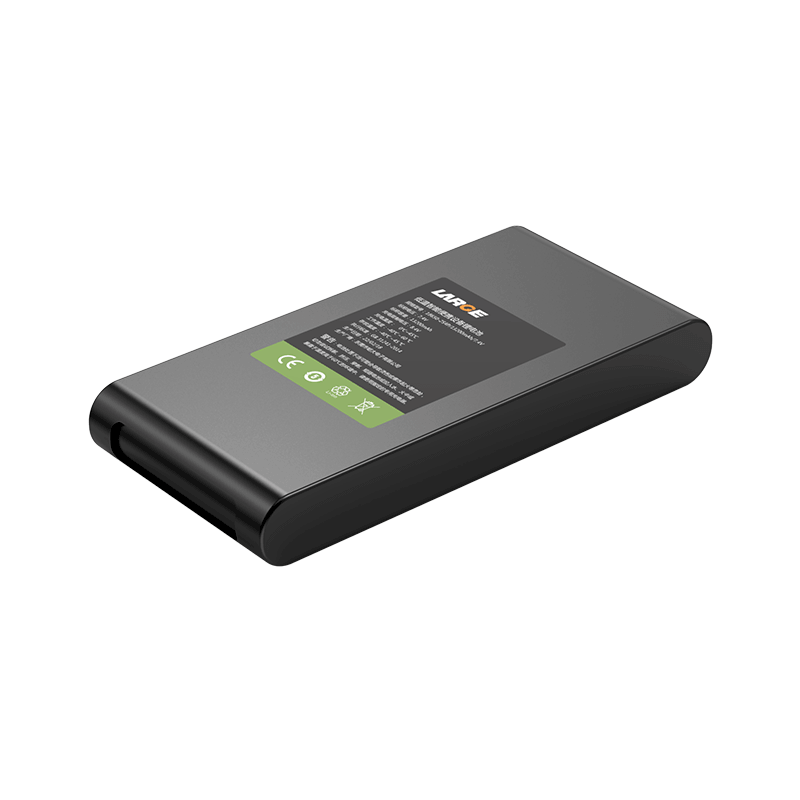

18650 7.4V 13200mAh Low Temperature Intelligent Battery for Portable Device

18650 7.4V 13200mAh Low Temperature Intelligent Battery for Portable Device
18650 7.4V 13200mAh Low Temperature Intelligent Battery for Portable Device
18650 7.4V 13200mAh Low Temperature Intelligent Battery for Portable Device
18650 7.4V 13200mAh Low Temperature Intelligent Battery for Portable Device

Product Detail

Project number: 37DZ079-04

Cell model: 18650/3350mah /3.6V

Battery specification: 18650-2S4P/13200mAh/7.4V

Nominal voltage: 7.4V

Nominal capacity: 13200mAh

Charging voltage: 8.4V

Charging current: ≤ 6.6A

Discharge current: 6.6A

Instantaneous discharge current: 9-12A

Discharge cut-off voltage: 5V

Finished product internal resistance: ≤150mΩ

Battery weight: 450g

Product size: 19.5*70.5*148.5mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60℃

Storage temperature: -40 ° C to 45 ° C

Battery case: PVC

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection,I2C communication, etc.

Application: Portable devices

*
*
*
